The instrument switches from remote to manual operation, but only if the local lock-

out function has not been activated in the remote control mode.

9.2 User-Defined Menu – USER key

The USER key displays a user-defined menu. The softkeys displayed here can be

labelled and assigned to user-defined settings files as required.

To open the user-defined menu

► Press the USER key.

The "User" menu is displayed.

Softkeys of the "User" menu

The "User" menu contains 8 user-definable softkeys as well as a "User Preference

Setup" softkey that allows you to define them. Pressing one of the user-definable soft-

keys has the same effect as the Save File / Recall File function for a pre-defined set-

tings file. The definitions for these softkeys remain unchanged even after a reset func-

tion and after updating the firmware.

As opposed to recalling a settings file via the "Save/Recall" menu, when a saved set-

tings file is loaded using one of the user-definable softkeys, the only item to be loaded

is the current (measurement) settings - no trace settings, transducer or limit line config-

urations etc.

"User Preference Setup" softkey

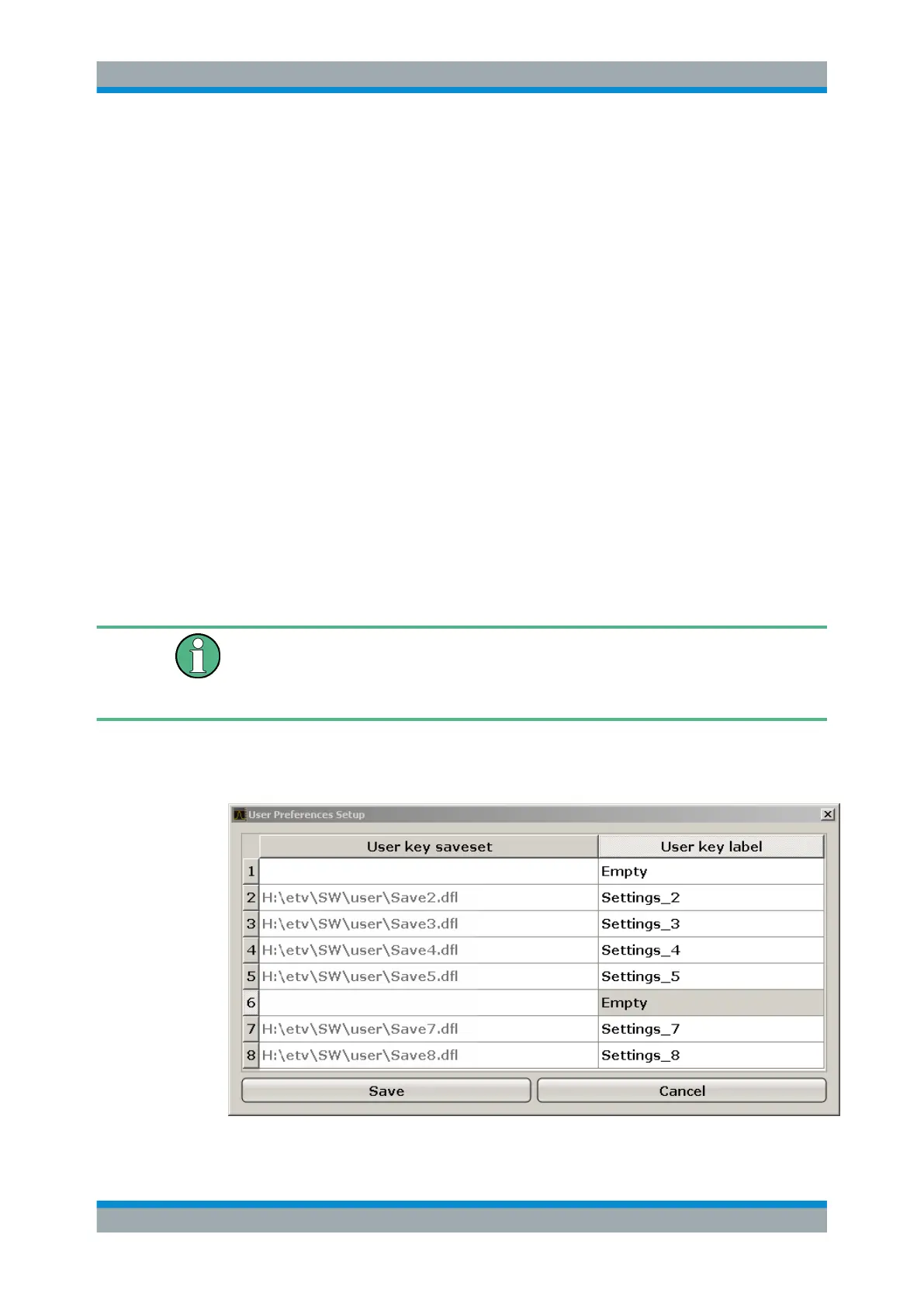

Opens an "ApplicationManager" dialog to set up the user-defined softkeys.
