3.4 Basic Operations
This chapter gives an overview on how to work with the R&S ESR. It describes what
kind of information is displayed in the diagram area, how to operate the R&S ESR via
the front panel keys and other interaction methods, and how to use the Online Help.
Note the Conventions Used in the Documentation concerning procedure descriptions
and terminology described at the beginning of this manual.
3.4.1 Information in the Diagram Area

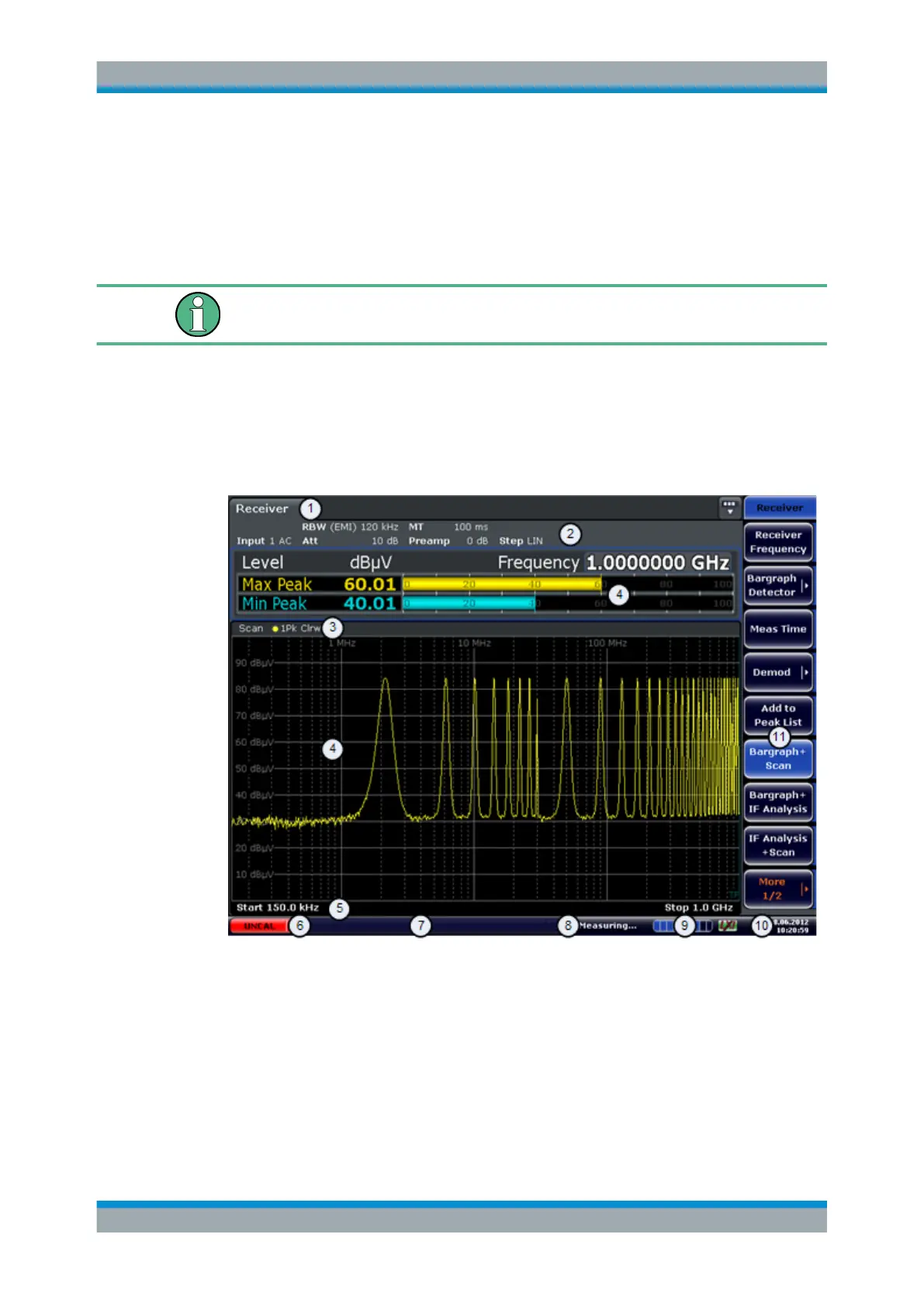

The following figure shows a measurement diagram during analyzer operation. All dif-
ferent information areas are labeled. They are explained in more detail in the following
sections.
1
= Operation mode tabs
2 = Hardware information
3 = Header of the result display containing trace information
4 = Result display
5 = Footer of the result display containing general measurement settings
6 = Calibration status
7 = Error messages
8 = Measurement status information
