disk or - if selected - on a USB device (e.g. memory stick) or on a network drive. The
hard disk has the drive letter C:.
In the default state, the current settings are stored. This includes the settings of the
measurement functions, the activated limit lines and the active transducer factor.
3.5.5.1 Storing an Instrument Configuration (without Traces)
1. Press the [SAVE/RCL] key.
2. Press the "Save" softkey.

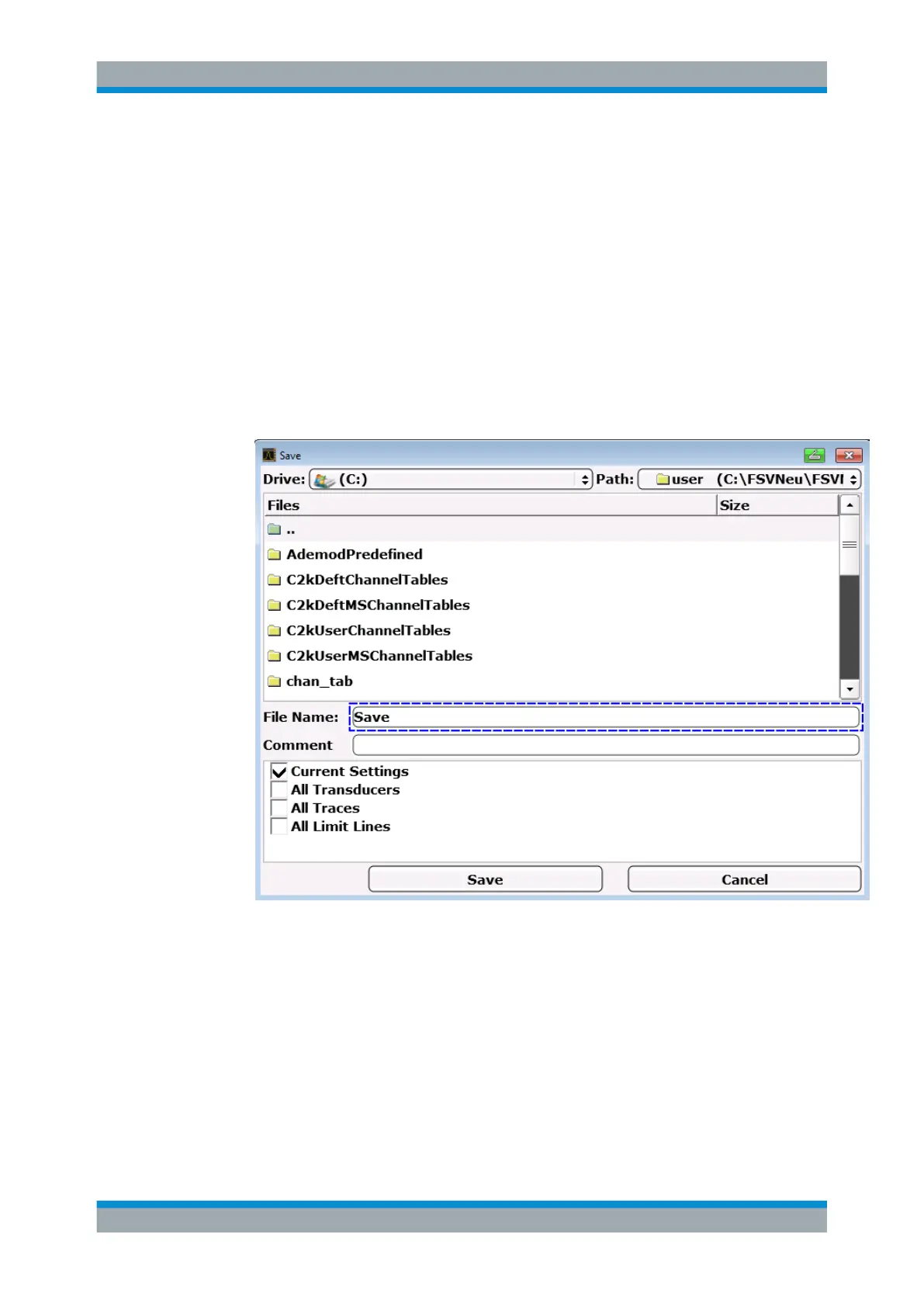

The dialog box for instrument configurations is displayed. The File Name field is
in edit mode and contains a suggestion for a new name.
3. To change the suggested name, enter a name for the settings file to be stored.
The name may contain letters and digits. For details on alphanumeric entries see
Chapter 3.4.3.2, "Entering Alphanumeric Parameters", on page 78.
4. To store the file in a directory different to the default directory, select the required
path in the Files area.
If the path is not changed, the default path for the instrument configurations
(C:\R_S\Instr\user) is used.
Note: The selected directory is automatically used for any further save and recall
operations.
