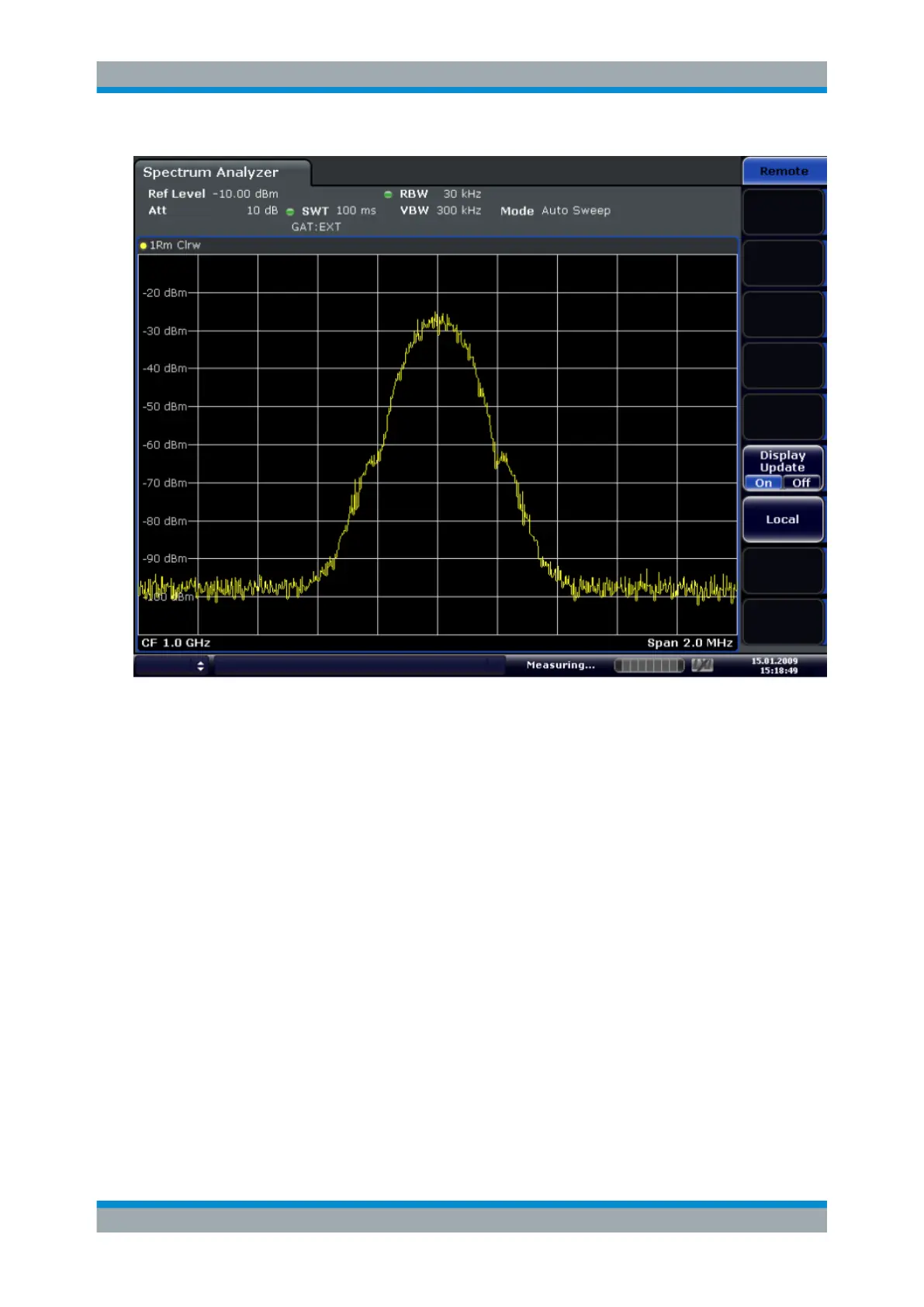

Figure 6-16: TDMA signal with GATE ON
6.2.9 Input/Output Configuration – INPUT/OUTPUT Key
The [INPUT/OUTPUT] key is used to configure input and output sources for measure-
ment functions.
6.2.9.1 Softkeys of the Input/Output Menu
The following table shows all softkeys available in the "Input/Output" menu. It is possi-
ble that your instrument configuration does not provide all softkeys. If a softkey is only
available with a special option, model or (measurement) mode, this information is pro-
vided in the corresponding softkey description.
Functions in the "Input / Output" menu described elsewhere:
●
"User Port" on page 187
Input (AC/DC)..............................................................................................................384
Preselector (On Off)....................................................................................................384
Noise Source...............................................................................................................384
Configuration
To Next Page
