R&S ESR Series User Manual

Quick Start
R&S
®
ESR
66User Manual 1175.7068.02 ─ 12

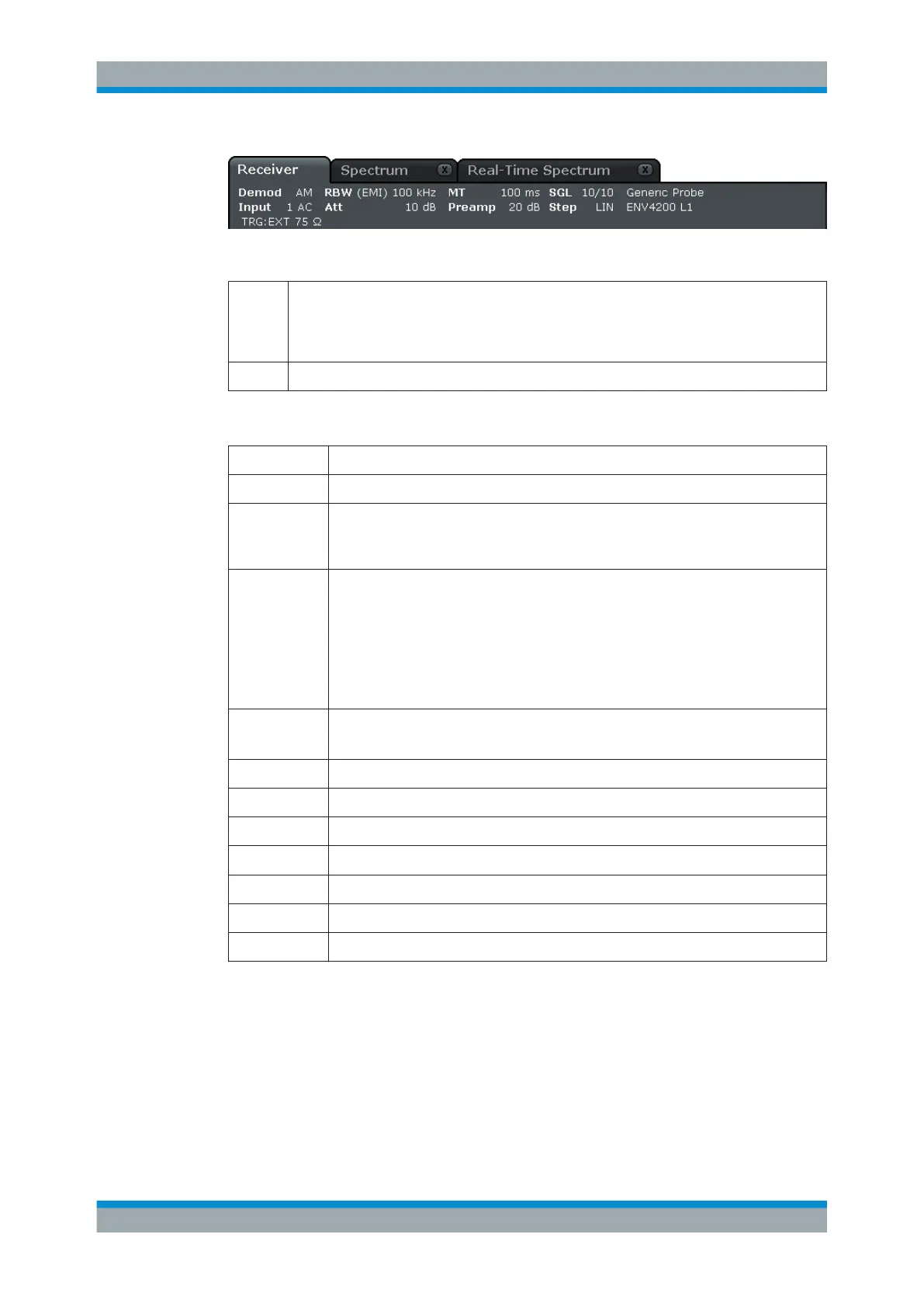

In Receiver mode, the R&S ESR shows the following information.
TRG Trigger source
(for details see trigger settings in the "TRIG" menu in the Operating manual)
●
EXT: External
●
VID: Video
75 Ω The input impedance of the instrument is set to 75 Ω.
In Spectrum mode, the following types of information may be displayed, if applicable.
Label Description
SGL The sweep is set to single sweep mode.
Sweep Count The current signal count for measurement tasks that involve a specific number of subse-
quent sweeps
(see "Sweep Count" setting in "Sweep" menu in the Operating manual)
TRG Trigger source
(for details see trigger settings in the "TRIG" menu in the Operating manual)
●
EXT: External
●
VID: Video
●
RFP: RF power
●
IFP: IF power
●
TIM: Time
●
SQL: Squelch
6dB/RRC/CHN Filter type for sweep bandwidth
(see BW menu in the Operating manual)
PA The preamplifier is activated.
GAT The frequency sweep is controlled via the [EXT TRIG/GATE IN] connector.
TDF A transducer factor is activated.
75 Ω The input impedance of the instrument is set to 75 Ω.
FRQ A frequency offset ≠ 0 Hz is set.
DC/AC An external DC or AC calibration signal is in use.
Inp Input source: digital I/Q (option R&S FSV-B17 only)
3.4.1.4 Diagram-specific and Trace Information
Diagram-specific information, e.g. concerning traces, is indicated in the diagram
header and footer.
Trace information in diagram header
The diagram header (above the diagram) contains the following trace information:
Basic Operations
