ESR

103User Manual 1175.7068.02 ─ 12

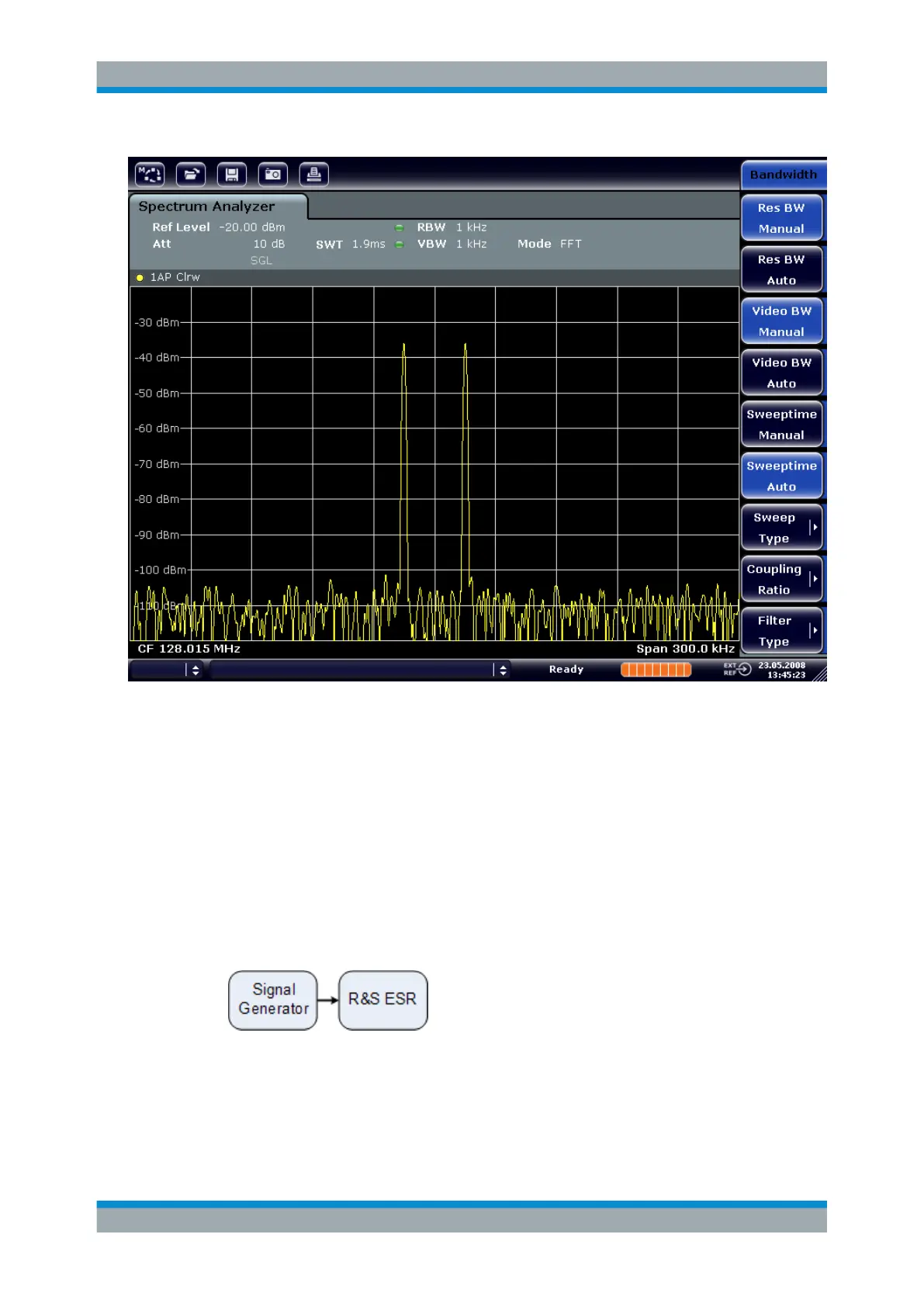

Figure 3-13: Measurement of two equally-leveled RF sinusoidal signals with a resolution band-

width (1 kHz) which is significantly smaller than their frequency spacing

3.5.3.2 Measuring the Modulation Depth of an AM-Modulated Carrier (Span > 0)

In the frequency range display, the AM side bands can be resolved with a narrow

bandwidth and measured separately. The modulation depth of a carrier modulated with

a sinusoidal signal can then be measured. Since the dynamic range of a signal ana-

lyzer is very large, extremely small modulation depths can also be measured precisely.

For this purpose, the R&S ESR provides measurement routines that output the modu-

lation depth numerically in % directly.

Test setup

Basic Measurement Examples
