Remote Control

R&S

ESR

628User Manual 1175.7068.02 ─ 12

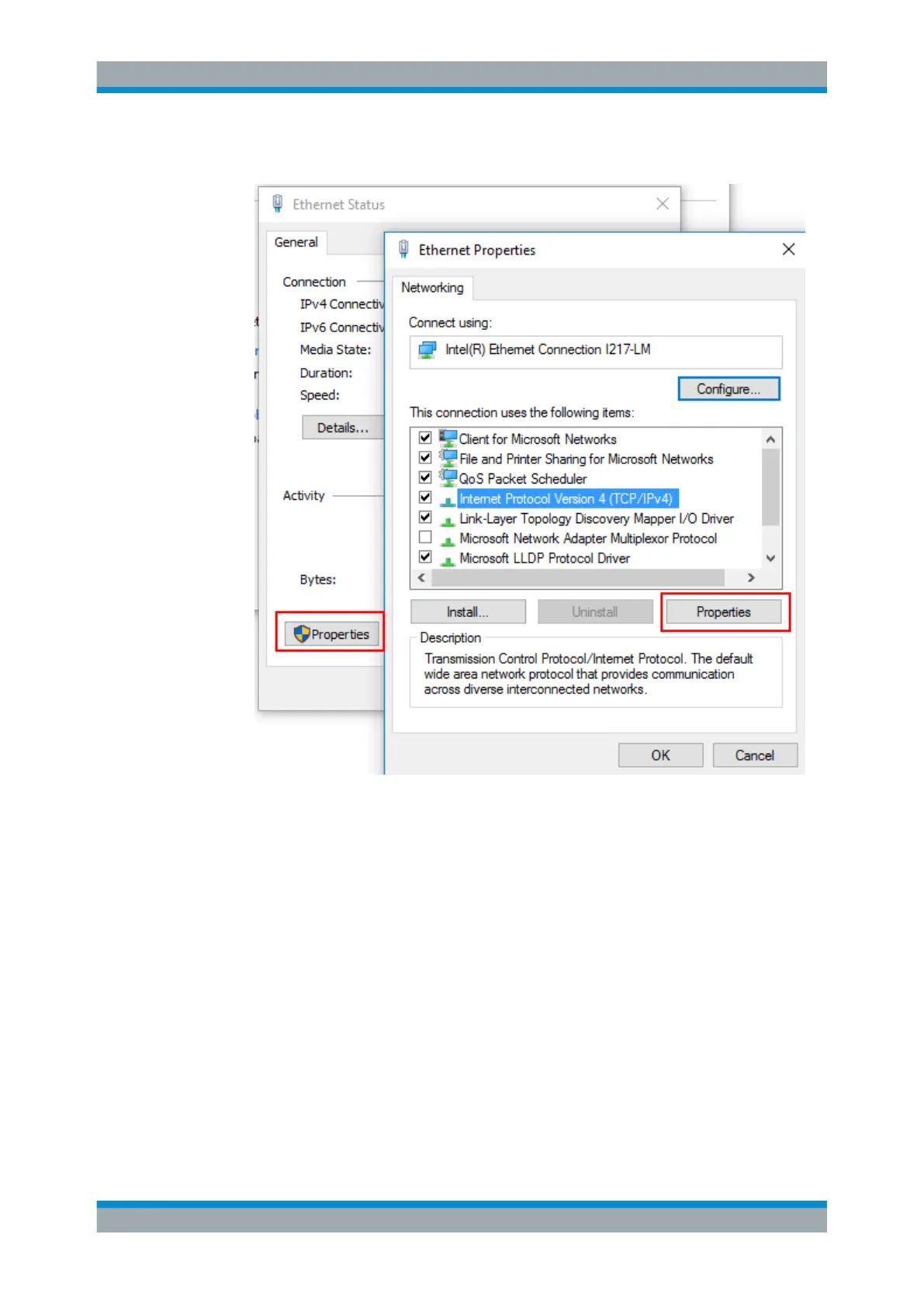

The items used by the LAN connection are displayed.

5. Tap the entry named "Internet Protocol Version 4 (TCP/IPv4)" to highlight it.

6. Select the "Properties" button.

7. On the "General" tab, select "Use the following DNS server addresses" and enter

your own DNS addresses.

For more information, refer to the Windows operating system help.

11.2.6.3 Using Computer Names

In a LAN that uses a DNS server (Domain Name System server), each PC or instru-

ment connected in the LAN can be accessed via an unambiguous computer name

instead of the IP address. The DNS server translates the host name to the IP address.

This is especially useful when a DHCP server is used, as a new IP address may be

assigned each time the instrument is restarted.

Each instrument is delivered with an assigned computer name, but this name can be

changed.

Controlling the R&S

ESR Remotely
