5.3.7.4 Peak Lists
The peak list dialog box is available for the prescan results and the final measurement
results. Both dialog boxes contain the same elements.
Peak List..................................................................................................................... 194
Insert Frequency......................................................................................................... 194
Delete Frequency........................................................................................................194
Sort by Delta Limit.......................................................................................................195
Symbols (On Off).........................................................................................................195
Peak List Export..........................................................................................................195

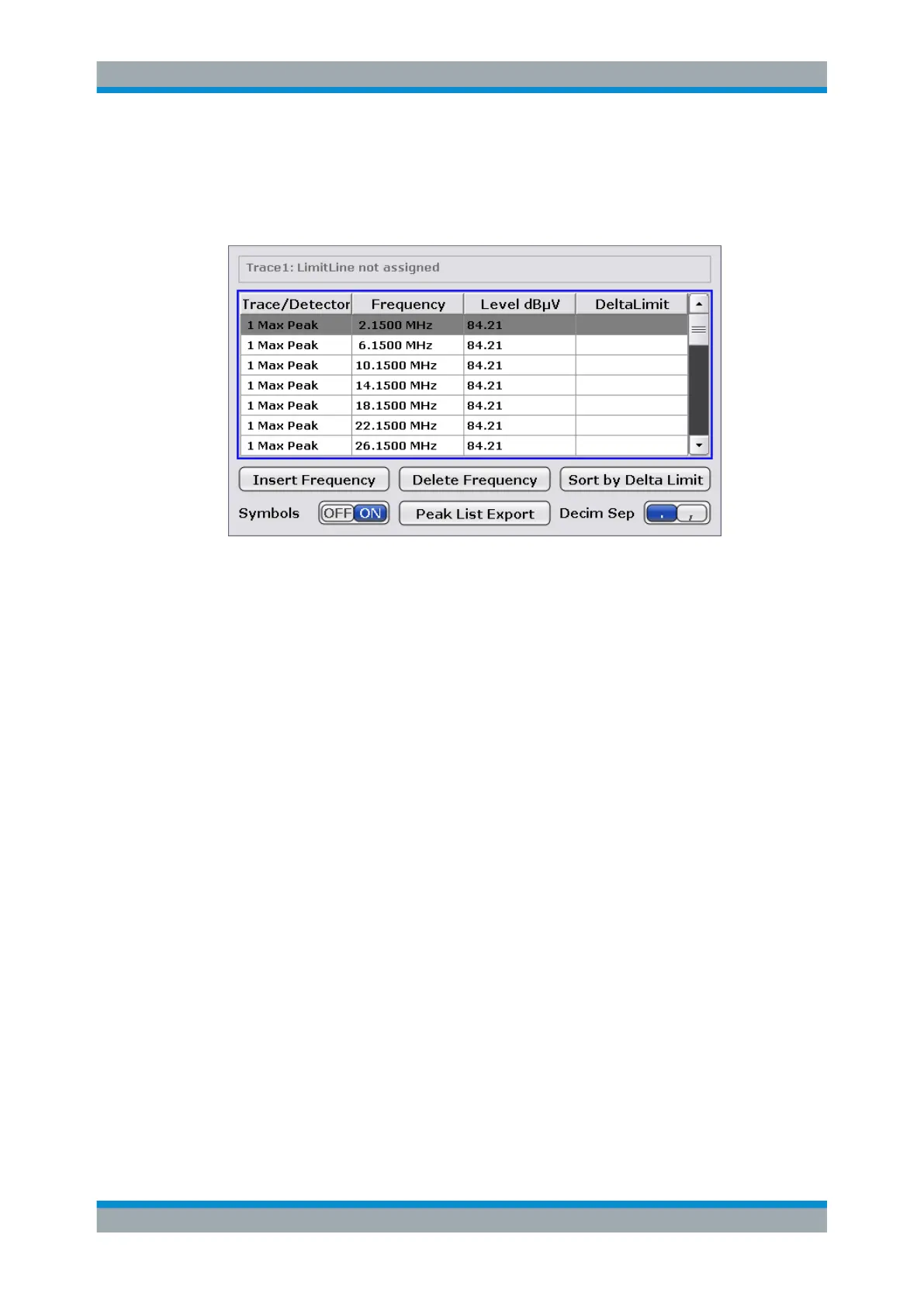

Peak List
Contains information about the peaks that were found during the peak search.
●
Trace / Detector
Shows the number of trace that the peak is on and the detector with which the
peak has been measured.
●
Frequency
Shows the frequency of the peak level.
●
Level
Shows the signal level of the peak. The unit depends on the one you have
selected.
●
Delta Limit
Shows the distance of the peak to a limit line. The delta limit is only calculated if
you have activated a limit line and have assigned it to one more traces.
Insert Frequency
Adds a new frequency to the peak list that is considered in the next scan.
Remote command:
CALCulate<n>:PEAKsearch|PSEarch:ADD on page 679
Delete Frequency
Deletes the currently selected peak list table row (grey highlighting).
