188User Manual 1175.7068.02 ─ 12
5.3.7 Test Automation
The test automation settings are availbale in the [MEAS] and [MEAS Config] menu.
The Test Automation dialog box contains functionality to configure automated test
sequences.
It is made up of several tabs, each of which contains the settings for one of the stages
in an automated test sequence (see alsoChapter 5.1, "Measurements and Result Dis-
plays", on page 142).
The "Peak Search" and "Run Final Test" buttons at the bottom of each of the tabs ini-
tiate the corresponding measurement function.
SCPI command:
CALCulate<n>:PEAKsearch|PSEarch[:IMMediate] on page 680
INITiate<n>:FMEasurement on page 642
Peak Search
In addition to the "Peak Search" button, you can initiate a peak search with the [PEAK
SEARCH] key on the R&S ESR front panel.
5.3.7.1 Overview
The "Overview" tab in the "Test Automation" dialog box contains general functions to
configure automated test sequences.

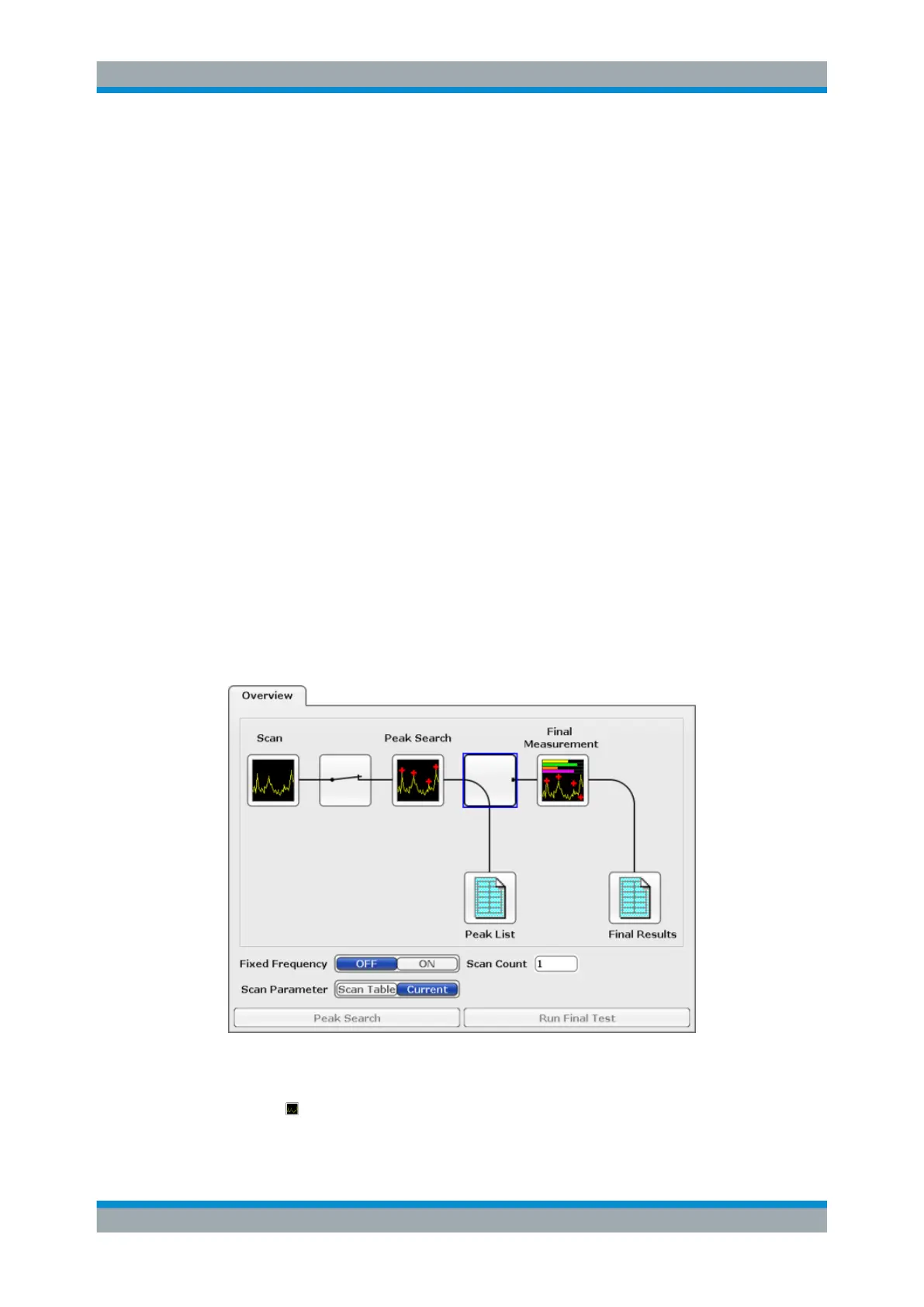

The main part of the "Overview" tab represents a complete test sequence (scan, peak
search and final measurement).
●
The item opens the Scan Table tab.
