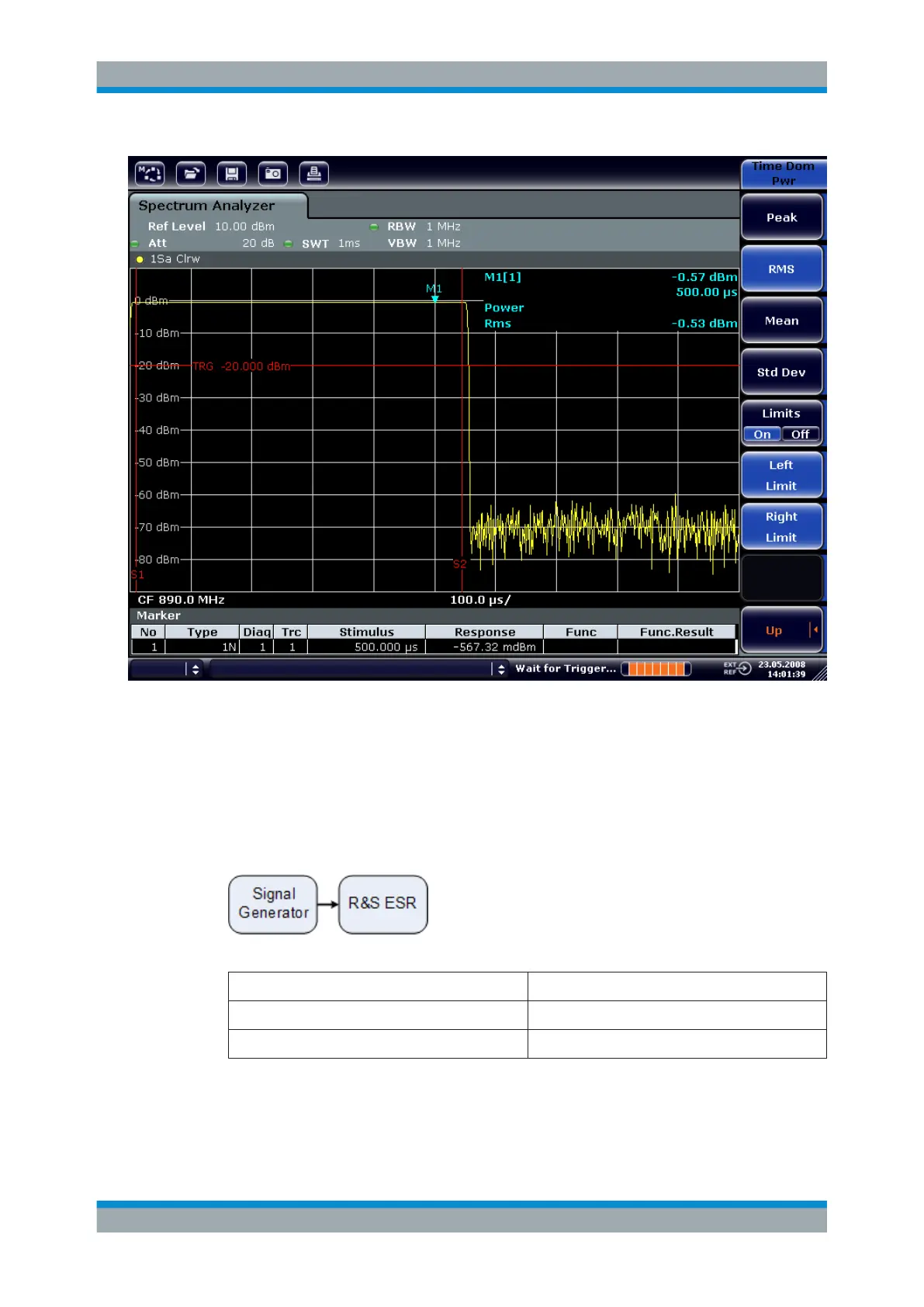

Figure 3-15: Measurement of the average power during the burst of a GSM signal
Measuring the Edges of a GSM Burst with High Time Resolution
Because of the high time resolution of the R&S ESR at the 0 Hz display range, the
edges of TDMA bursts can be measured precisely. The edges can be shifted to the
screen area by using the trigger offset.
Test setup
Table 3-9: Signal generator settings (e.g. R&S SMU)
Frequency 890 MHz
Level 0 dBm
Modulation GSM, one timeslot activated
The measurement is based on the setting in the example above for measuring the
power of the GSM during the activation phase.
1. Switch off the power measurement.
Basic Measurement Examples
