Siemens SINAMICS S120 User Manual

Line connection and line-side power components
3.8 Line reactors
Booksize Power Units
114 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8

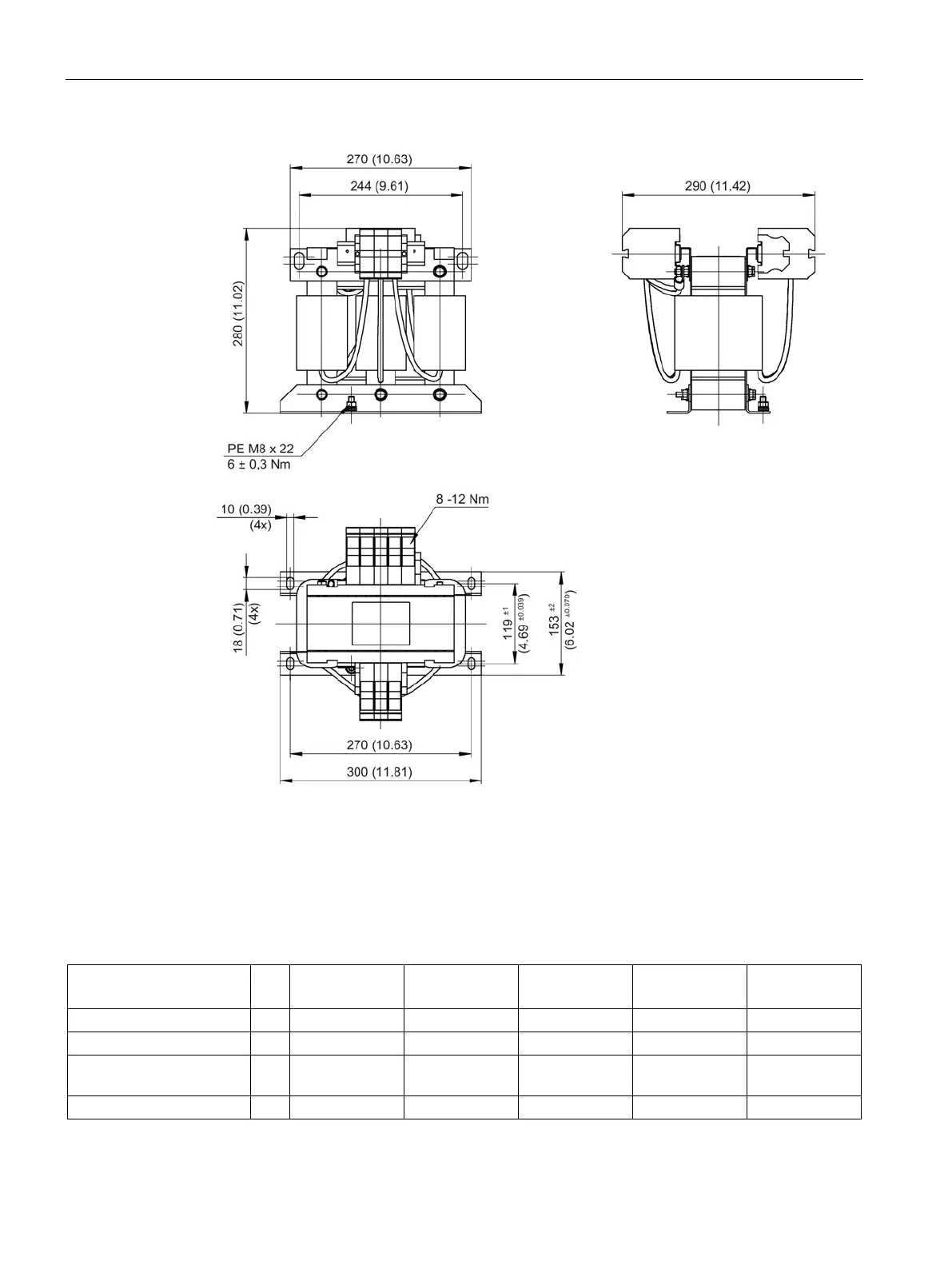

Figure 3-50 Dimension drawing of line reactor for Smart Line Module 55 kW, all dimensions in mm
and (inches)
3.8.6.3
Technical data
Table 3- 21 Technical data of line reactors for the Smart Line Module
6SL3000-
0CE15-0AA.
6SL3000-
0CE21-0AA.
6SL3000-
0CE21-6AA.
6SL3000-
0CE23-6AA.
6SL3000-
0CE25-5AA.
Power
kW
5
10
16
36
55
Rated current
A
rms
14
28
35
69
103
Power loss (see power
loss tables (Page 756))
W 62 116 110 170 190
Weight
kg
3.7
7.5
9.5
17
37
