Motor Modules Booksize
6.3 Motor Module with external air cooling
Booksize Power Units
382 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
6.3.2
Interface description
6.3.2.1
Overview

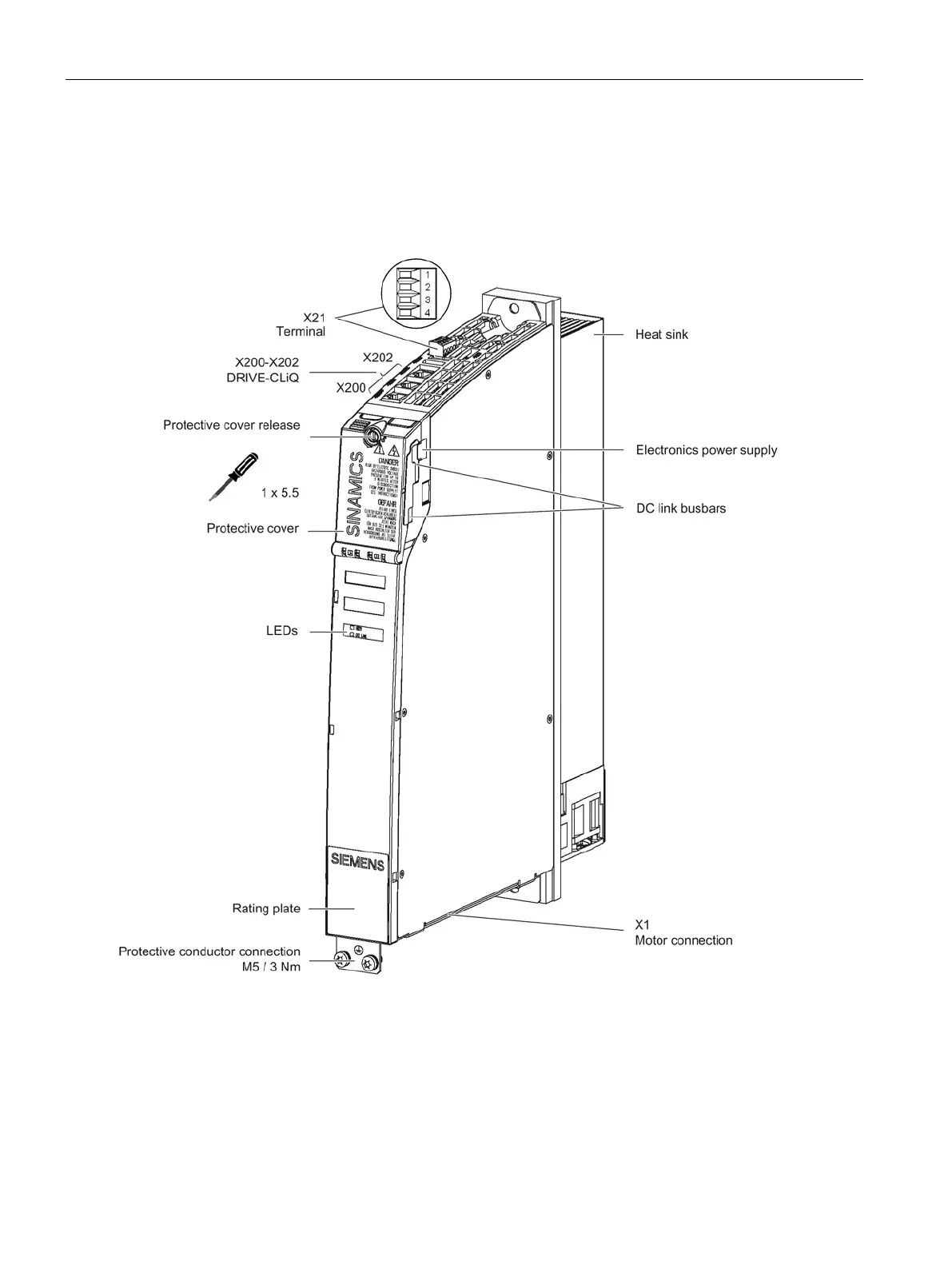

Figure 6-30 Interface overview, Single Motor Module Booksize with external air cooling (example: 5 A)
