Siemens SINAMICS S120 User Manual

Line Modules Booksize
4.7 Basic Line Modules with internal air cooling
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
239
Internal air cooling
6SL3130-
1TE22-0AA0
1TE24-0AA0
1TE31-0AA0
Max. total cable length
6)
See Chapter Combination options, Line Modules with line reactors
and line filters (Page 135)
Cooling method
(internal air cooling) Internal fan
Sound pressure level
dB(A)
< 60
< 65
< 65
Cooling air requirement
m
3
/h 56 112 180
Max. permissible heat sink temperature
° C
65
70
70
Rated voltage for rated data 3 AC 380 V
Weight
kg
6.8
11.3
15.8
1)
The specified power ratings apply to the line voltage range from 380 V to 480 V.
2)
Can also be operated on supply systems with 200 ... 240 V 3 AC ±10 % with appropriate parameterization and reduced
power.
3)
Default for 400 V line systems; undervoltage trip threshold is adjusted to the parameterized rated voltage
4)
Only the fundamental component
5)
The resulting rated short-circuit current is obtained from the combination of the fuse or circuit breaker – and the Line
Module in the drive system.
6)
Maximum total cable length = Σ motor cables, line feeder cable from line filter to the Line Module
4.7.8.1
Characteristics
Rated duty cycles for Basic Line Modules

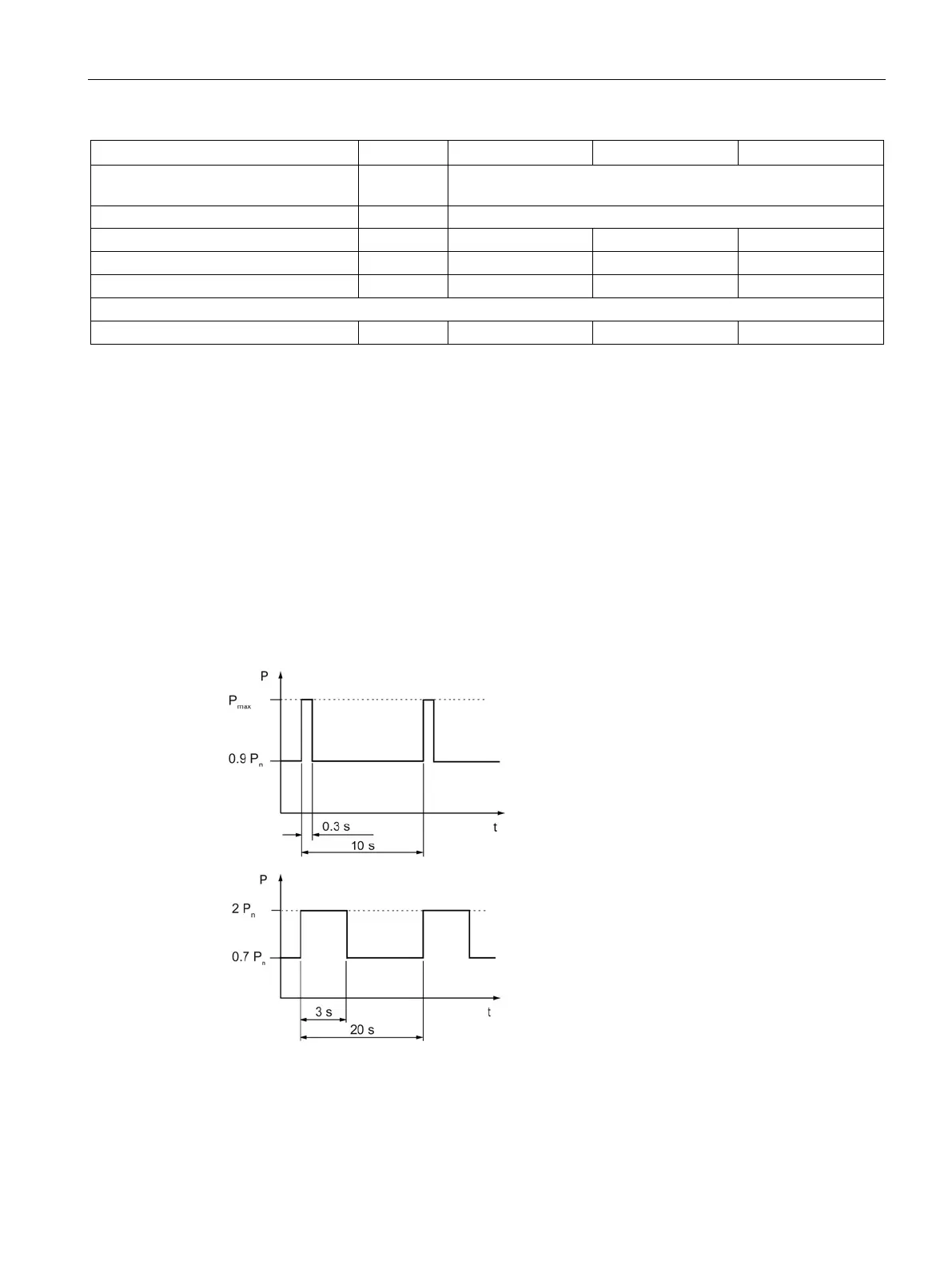

Figure 4-47 Duty cycles with initial load
