14.1 Replacing the fan
Booksize Power Units
796 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
Replacing the fan on the 100 kW Basic Line Module for capacitor cooling

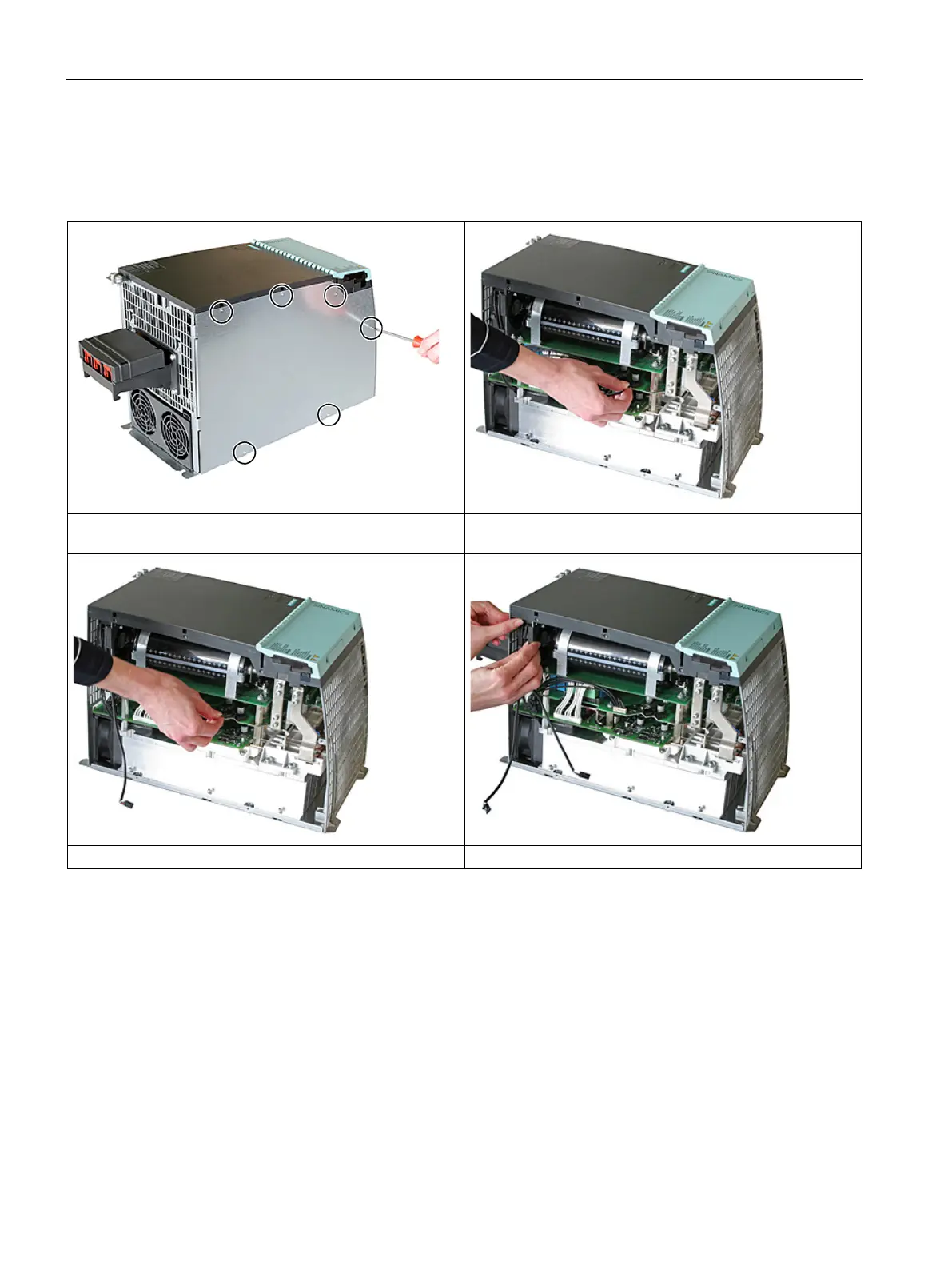

Table 14- 4 Removing the fan
1. Open the right housing cover by loosening the 6 marked
2. Withdraw the first fan cable by lightly pressing the con-
3. Withdraw the second fan cable.
4. Release the fan assembly.
