Line Modules Booksize
4.6 Active Line Modules Liquid Cooled
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
219
4.6.6
Installation
â‘
Mounting surface
â‘¡
Threaded bolts M6
â‘¢
Heat sink
â‘£
Washer
⑤
Spring washer
â‘¥
M6 nut

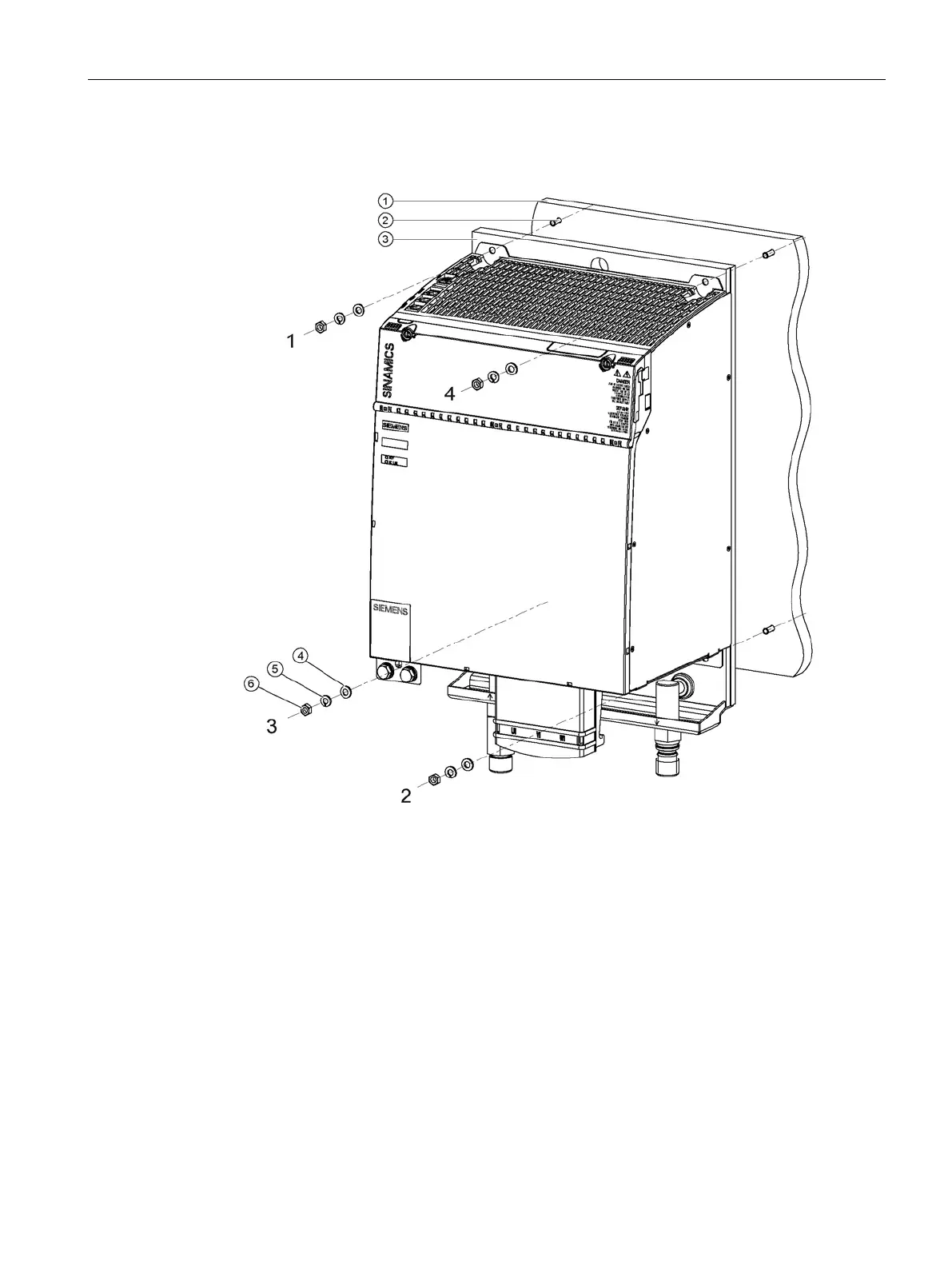

Figure 4-37 Mounting an Active Line Module Liquid Cooled
