Line Modules Booksize
4.4 Active Line Modules with external air cooling
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
187
Insert plate or mounting plate

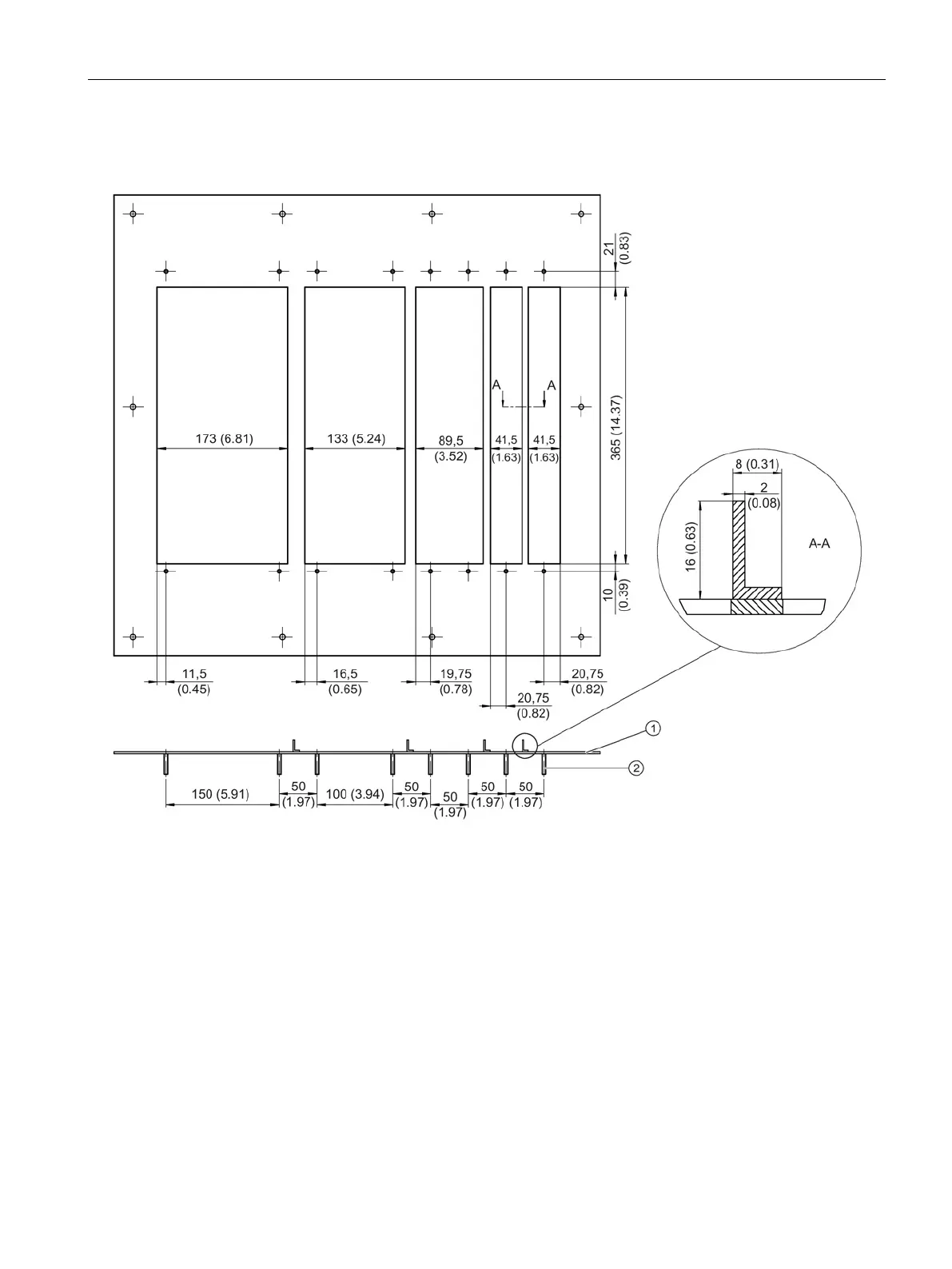

Figure 4-20 Example of a mounting plate for a drive line-up with external air cooling, all data in mm and (inch)
When mounting it must be ensured that the component's seal is tight throughout. The cross-
pieces must have the appropriate stability. If necessary, the cross-pieces of the openings
must be reinforced.
In the example, the cross-pieces have been reinforced using brackets according to EN 755-
9. You are free to select the way that the bracket is attached to the insert.
