Cabinet design and EMC Booksize
12.5 Electrical connection
Booksize Power Units
690 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8

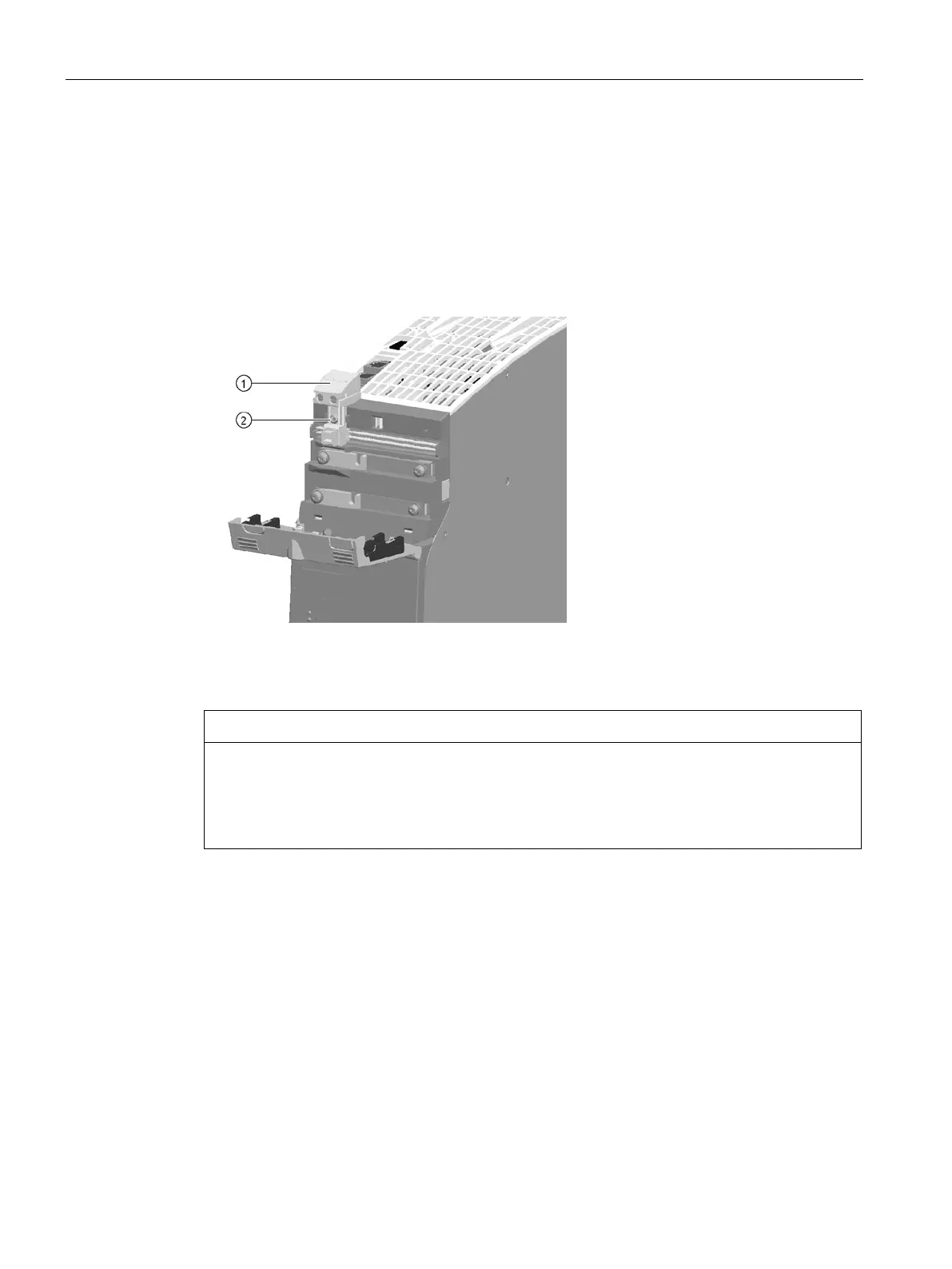

Installation of the 24 V terminal adapter
The 24 V terminal adapter can be installed in every Line Module, Motor Module and Control
Supply Module.
The 24 V terminal adapter is suitable for connecting cable cross-sections of 0.5 up to 6 mm
2
.
The 24 V terminal adapter is included in the scope of delivery of Line Modules and Control
Supply Modules. It can be ordered as replacement part (article number: 6SL3162-2AA00-
0AA0).
Screw for fixing: SHR, PT-TORX K30-3, 0X16-ST-A2F WN1452 / manufacturer EJ
Tightening torque: 0.5 Nm
Damage to the 24 V connector as a result of incorrect insertion/withdrawal
Incorrect insertion/withdrawal of the 24 V connector can damage it.
• Only withdraw the 24 V terminal adapter vertically in relation to the front plate.
• It is only permissible to withdraw or insert the 24 V connectors a maximum of 5 times.
You require the following tools to install the 24 V terminal adapter:
● Slot-head screwdriver 1 x 5.5 for releasing the protective cover
● Torx T10 screwdriver to fasten the 24 V terminal adapter
● Suitable pliers to break out the cutout in the protective cover
