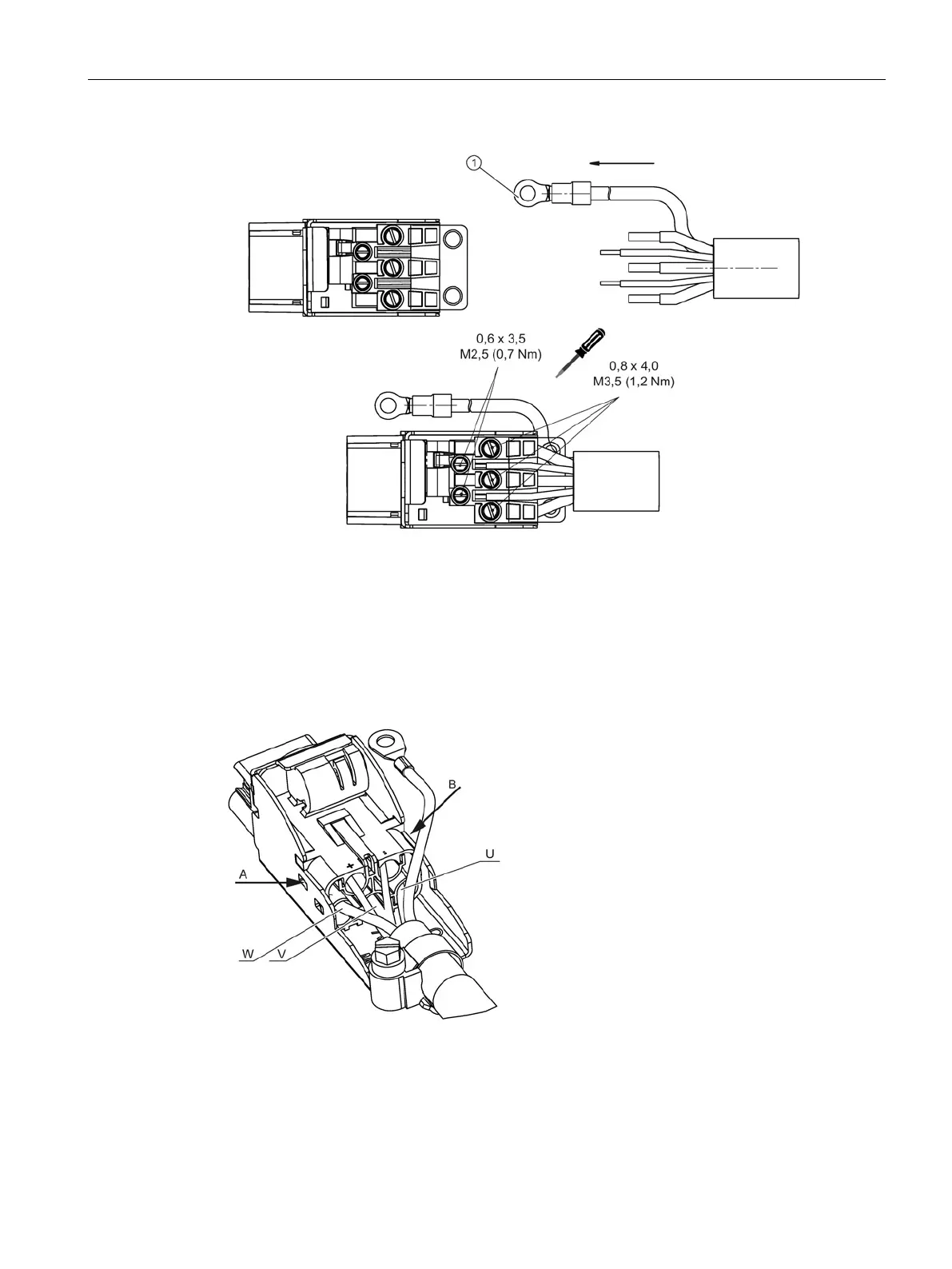

Figure 12-33 Attaching the motor connector screw version
Removing the motor connector from prefabricated power cables
The motor connector of a pre-assembled motor cable might have to be removed if the cable
needs to be routed through narrow cable glands, for example.
Figure 12-34 Motor connector, crimped version
