Accessories
11.4 DC link rectifier adapter for Booksize format
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
637

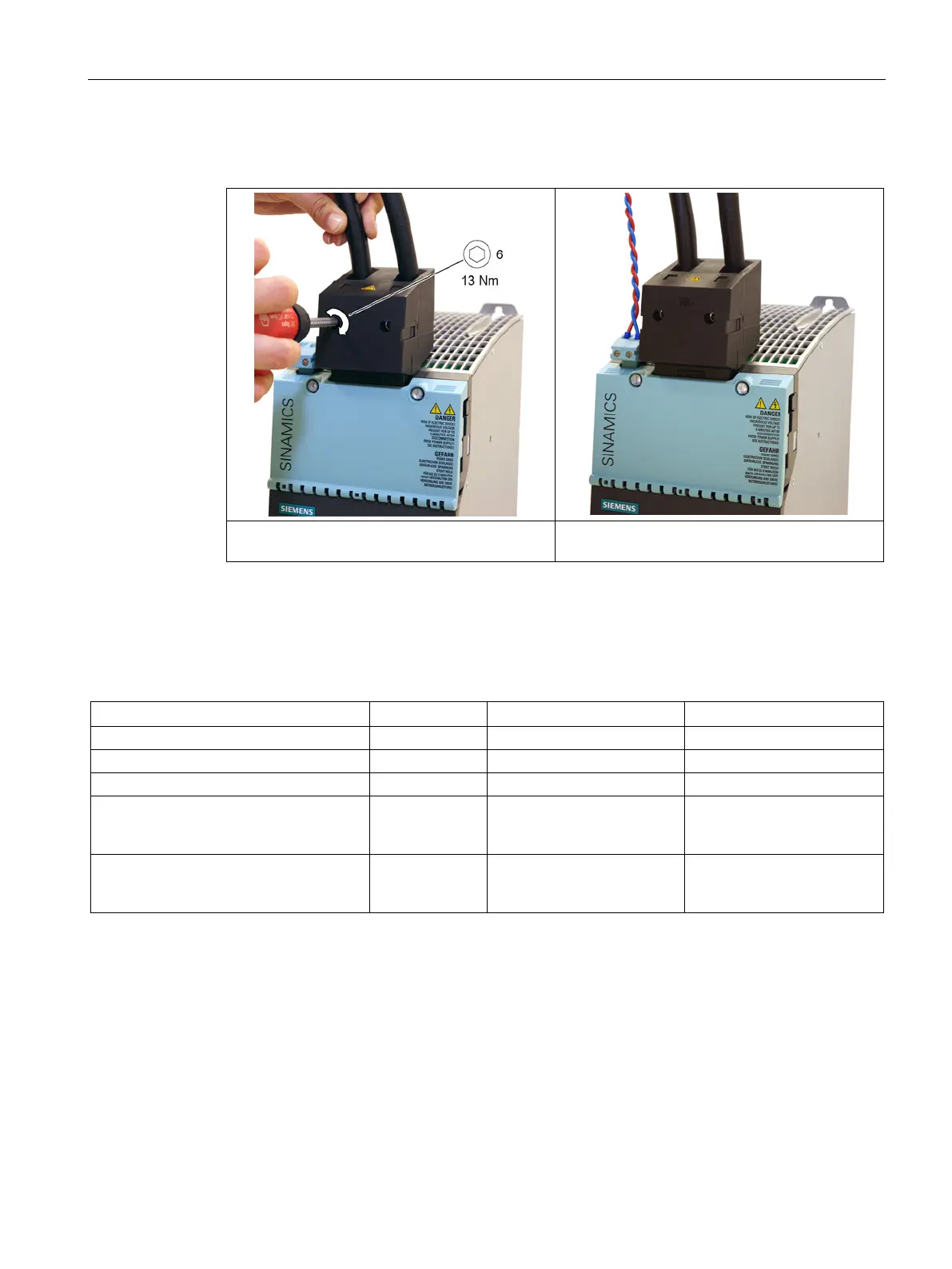

Table 11- 20 Electrically connecting the DC link rectifier adapter for 150 mm, 200 mm and 300 mm
components
Install the cables at the DC link rectifier adapter
(hexagon socket-head screw)
Connected DC link rectifier adapter
11.4.7
Technical specifications
Table 11- 21 Technical data DC link rectifier adapter
DC link rectifier adapter
Unit
6SL3162-2BD00-0AA0
6SL3162-2BM00-0AA0
Current carrying capacity
A
43
240
1)
Connection cross-section
mm²
0.5 … 10
35 … 95
Stripped length
mm
11
27
Attaching
- Terminals
- DC link busbars
Slotted screw (0.8 x 4.0)
Torx screw T20
Hexagonal screw, size 6
Torx screw T20
Tightening torque
- Terminals
- DC link busbars
Nm
Nm
1.8
1.8
13
1.8
1) If only one of the two screws is used to connect the infe
ed adapter with DCP and DCN, then the current carrying capacity
is reduced to 150 A.
