11.4 DC link rectifier adapter for Booksize format
Booksize Power Units
630 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
11.4.3.2
DC link connection
Table 11- 15 DC link rectifier adapter – description of the terminals
Terminal
Function
Technical data
DCP
DC link positive
Supply voltage:
720 V-VDE/600 V-UL
DCN
DC link negative
11.4.4
Dimension drawings

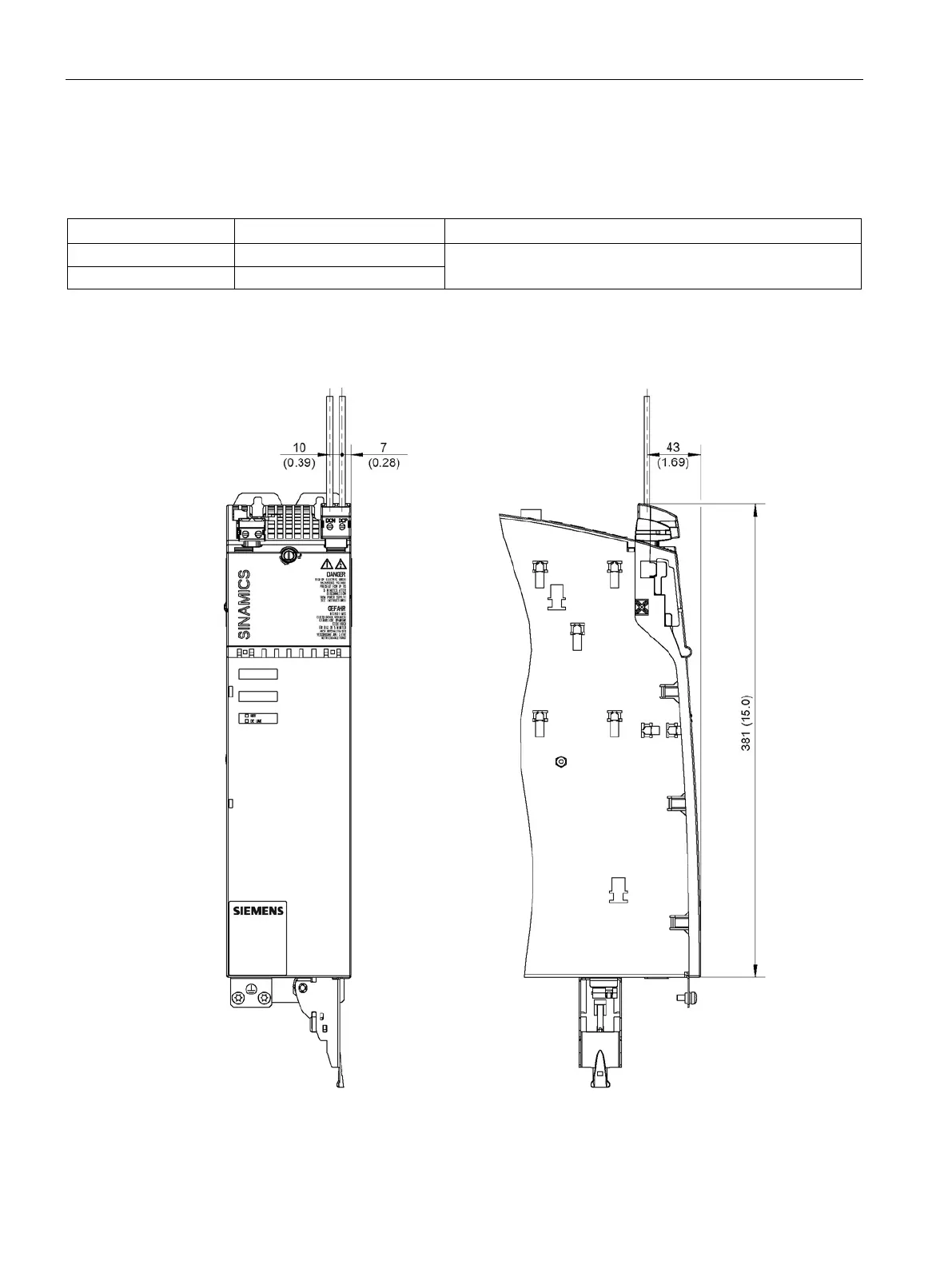

Figure 11-24 Dimension drawing of 100 mm wide component with DC link rectifier adapter for 0.5 to
10 mm², all dimensions in mm and (inch)
