Siemens SINAMICS S120 User Manual

Motor Modules Booksize Compact
7.8 Technical data
Booksize Power Units
480 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
7.8.3
Characteristics

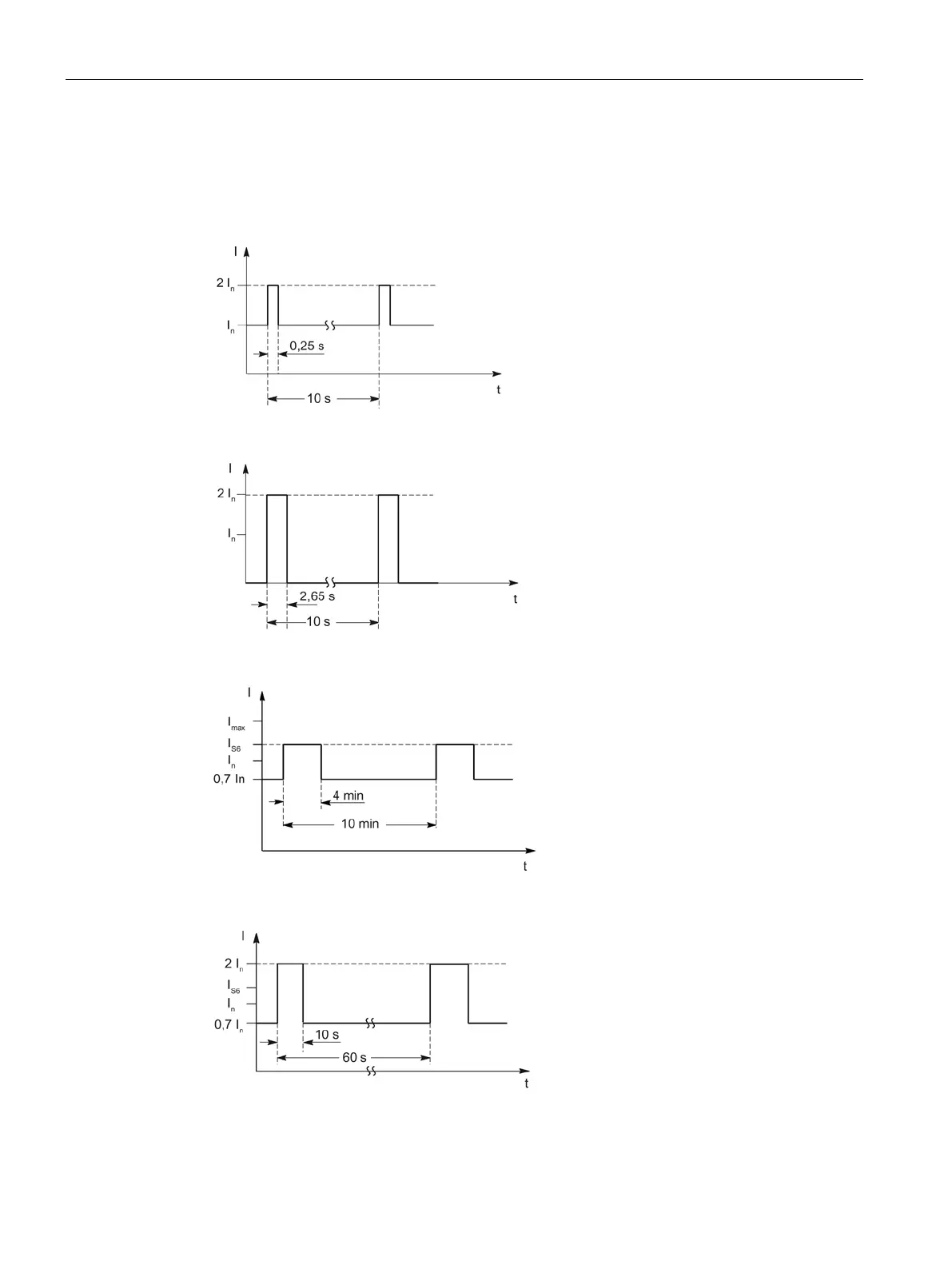

Rated duty cycles Motor Modules Booksize Compact
Figure 7-9 Duty cycle with initial load
Figure 7-10 Duty cycle without initial load
Figure 7-11 S6 duty cycle with initial load for a duty cycle duration of 600 s
Figure 7-12 S6 duty cycle with initial load for a duty cycle duration of 60 s
