Motor Modules Booksize
6.2 Motor Modules with internal air cooling
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
367
Motor Modules are designed for installation in the control cabinet. They are fixed to the
control cabinet panel or a mounting panel using M6 screws.
Control cabinet panel/mounting panel

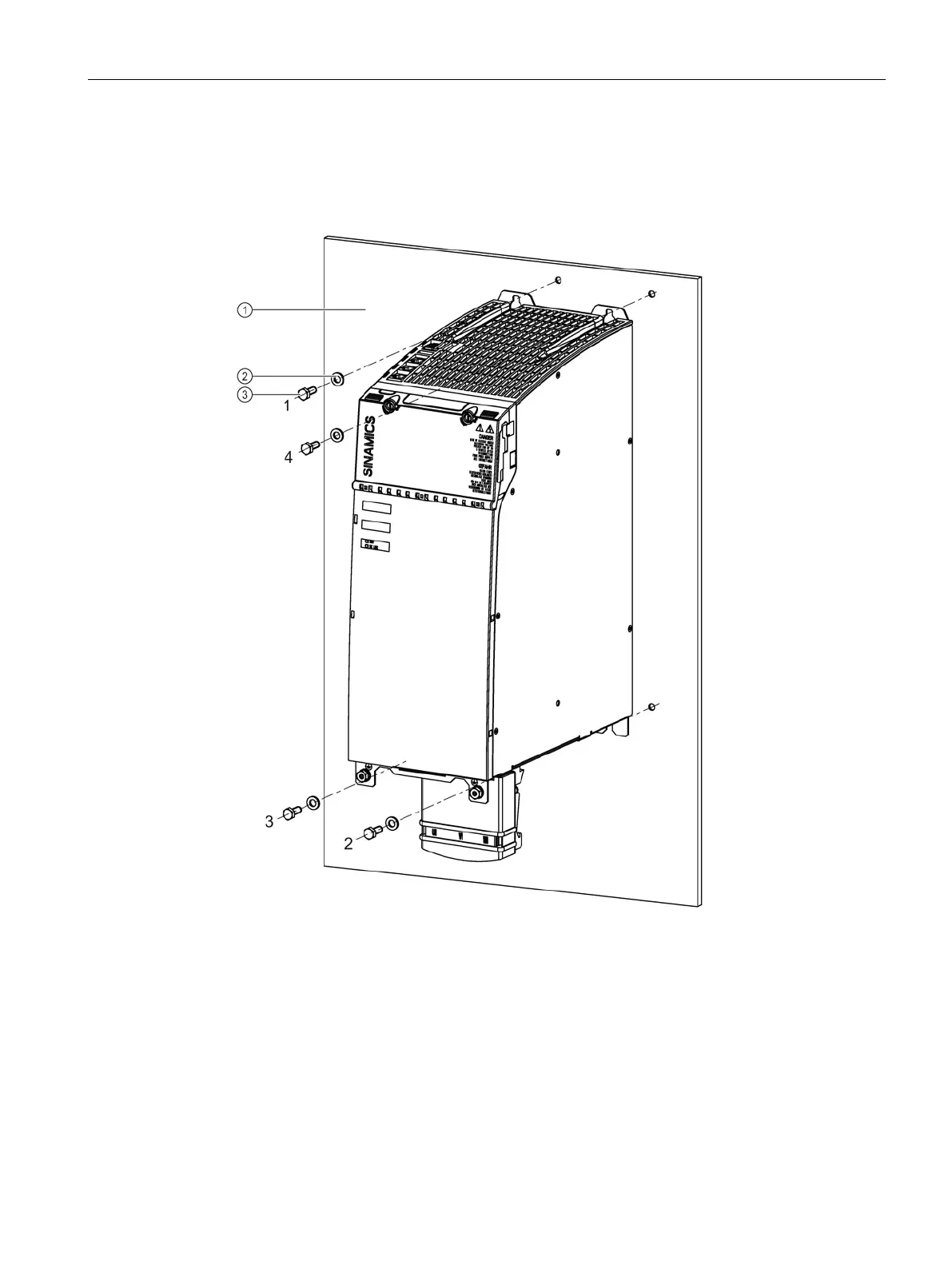

Figure 6-10 Installation of a Motor Module with internal air cooling (example 45 A)
:
1. Firstly, tighten the nuts by hand.
Tightening torque. 0.5 Nm
2. Then tighten the screws in the specified sequence 1 to 4.
Tightening torque: 6 Nm
