Line Modules Booksize
4.11 Smart Line Modules with cold plate
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
327
Measuring the heat sink temperature
The maximum permissible heat sink temperature is calculated at the cold plate in the
measuring range shown below.

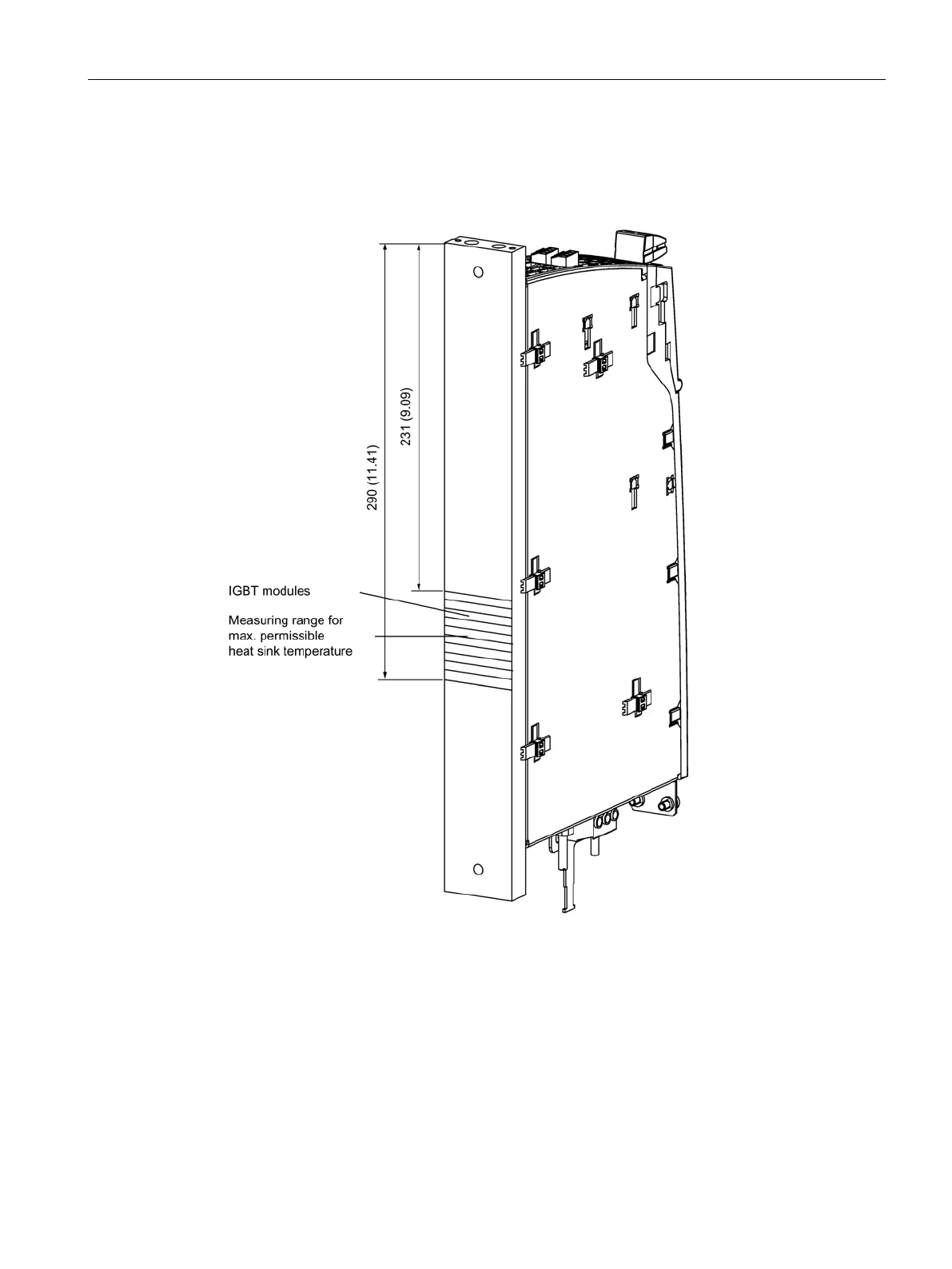

Figure 4-94 Measuring range for max. permissible heat-sink temperature for a Smart Line Module
with cold plate
