Line Modules Booksize
4.4 Active Line Modules with external air cooling
Booksize Power Units
176 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
4.4.2.3
X12 fan connection
Active Line Modules 80 kW and 120 kW are equipped with an interface for connecting the
sub-chassis fan. The interface is located on the underside of the Line Module.

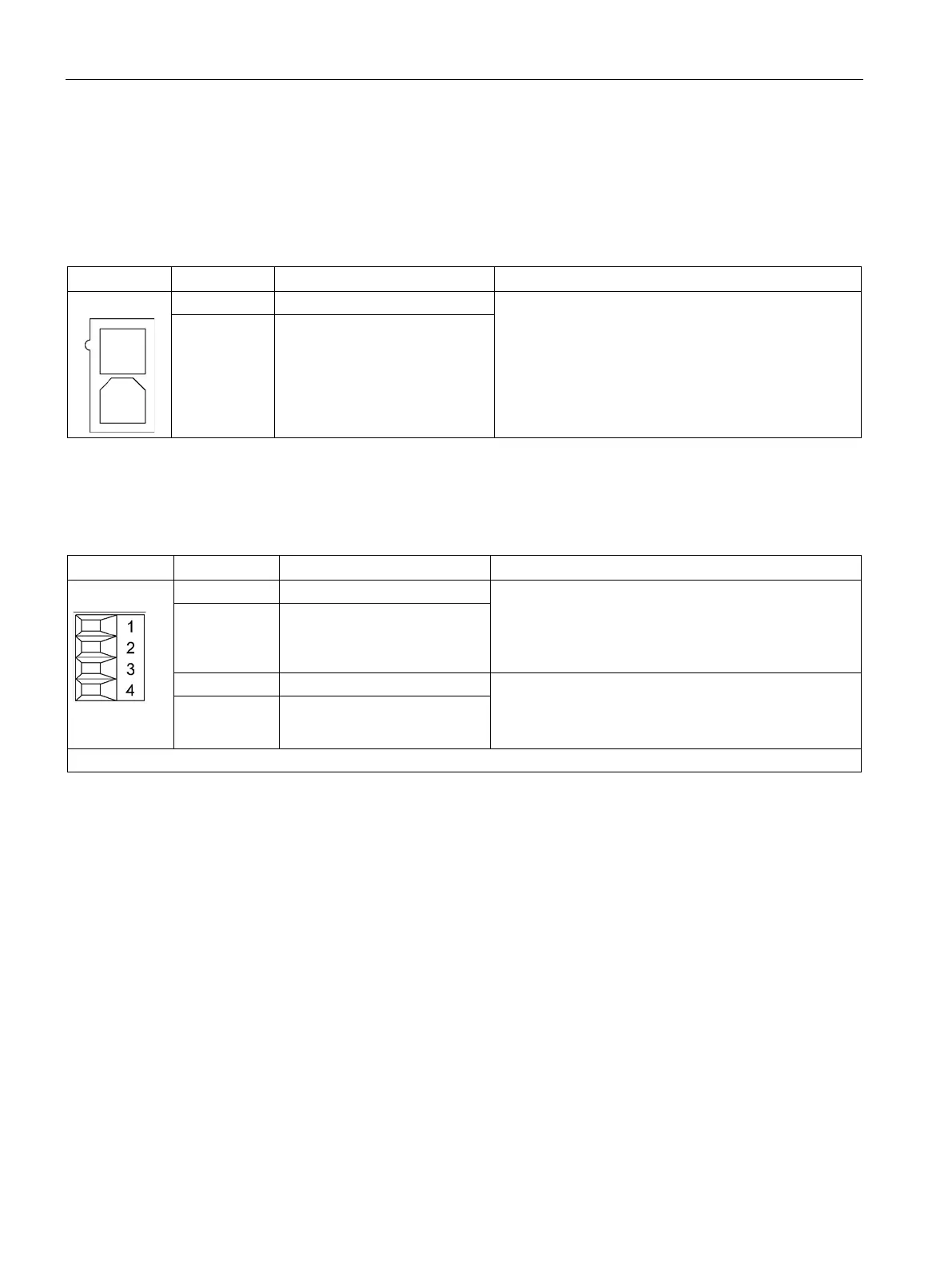

Table 4- 14 X12 fan connection
Terminal
Function
Technical data
1
Fan connection +
Voltage 48 V DC for the supplied fan
2 Fan connection -
4.4.2.4
X21 EP terminals
Table 4- 15 X21 EP terminal / temperature sensor
Terminal
Designation
Technical data
1
+ Temp
Temperature sensors
1)
: KTY84–1C130
2)
/ PT1000
2)
/
PTC
2)
/bimetallic switch with NC contact
If an Active Interface Module is used, the temperature
input must be connected to the Active Interface Module
sensor (bimetallic switch with NC contact).
2 - Temp
3
EP +24 V (pulse enable)
Voltage: 24 V DC (20.4 ... 28.8 V)
Current consumption, typical: 4 mA at 24 V
Isolated input
4 EP M (Enable Pulses)
Type: Screw terminal 1 (Page 730)
1)
The temperature se
nsor type and the temperature output can be selected by parameter (see the SINAMICS S120/S150
List Manual).
2)
Temperatures are detected but not evaluated in the Active Line Module.
Terminals X21.1 and X21.2
When using an Active Interface Module, its temperature output must be connected at
terminals X21.1 and X21.2.
