Line connection and line-side power components
3.9 Active Interface Modules internal air cooling
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
133

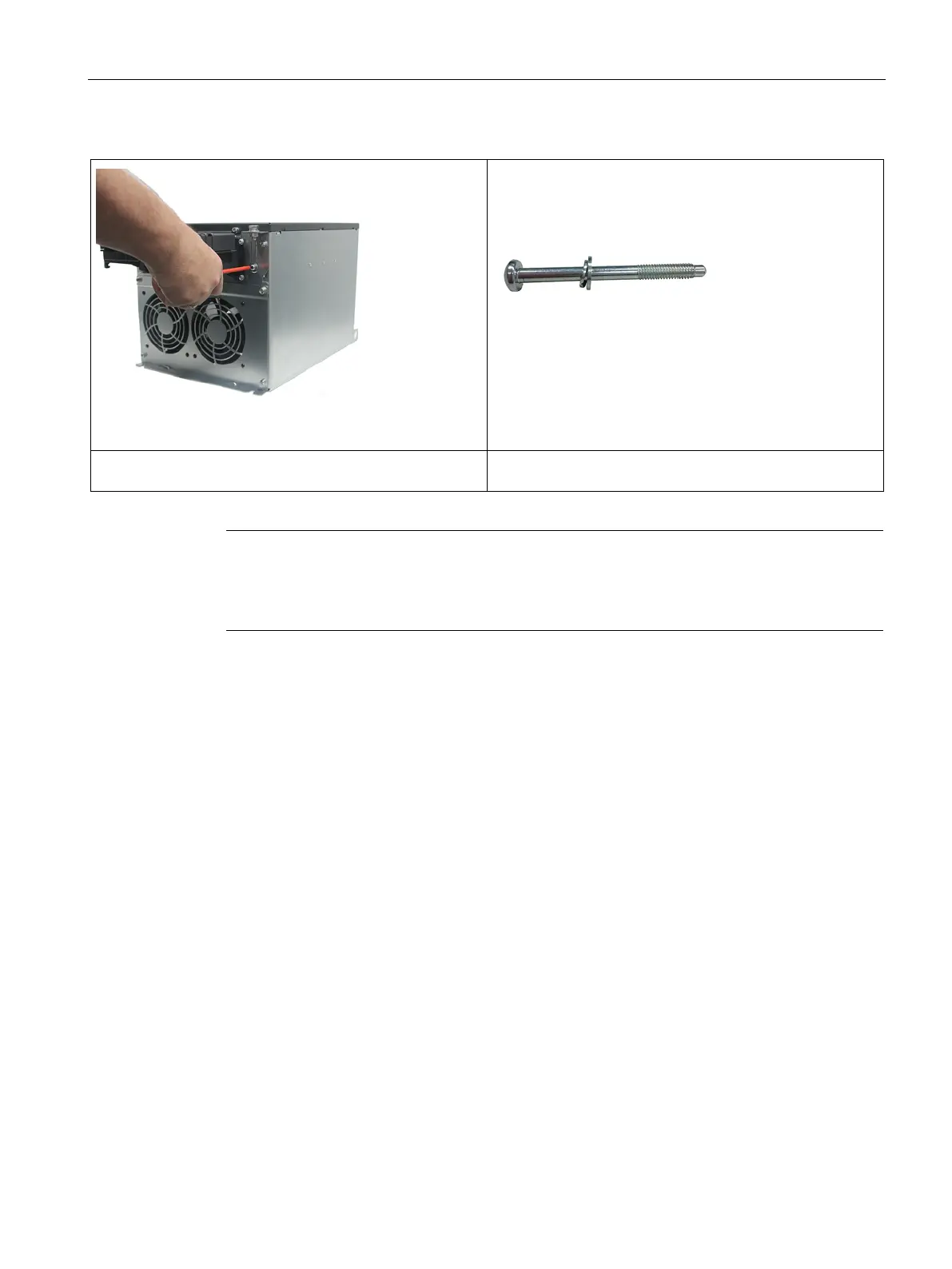

1. Remove the connecting screw to the noise suppression
capacitor using a Tx25 screwdriver
2. Connecting screw to the noise suppression capacitor
Note
Insert the connecting screw to the noise suppression capacitor
For operation in other l
ine supplies, the connecting screw must be reinstalled and fixed with
a tightening torque of 1.8 Nm.
Electrical tests
Tests on the 16 kW Active Interface Module
Electrical tests on the 16 kW Active Interface Module may only be performed via the
associated terminal connectors. The socket contacts will expand if unsuitable testing
equipment is used (e.g. 4 mm safety plugs inserted directly into device sockets).
The consequences are contact problems at the power connections of the Active Interface
Module.
