Accessories
11.7 DRIVE-CLiQ coupling
Booksize Power Units
660 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
11.7.3
Dimension drawing

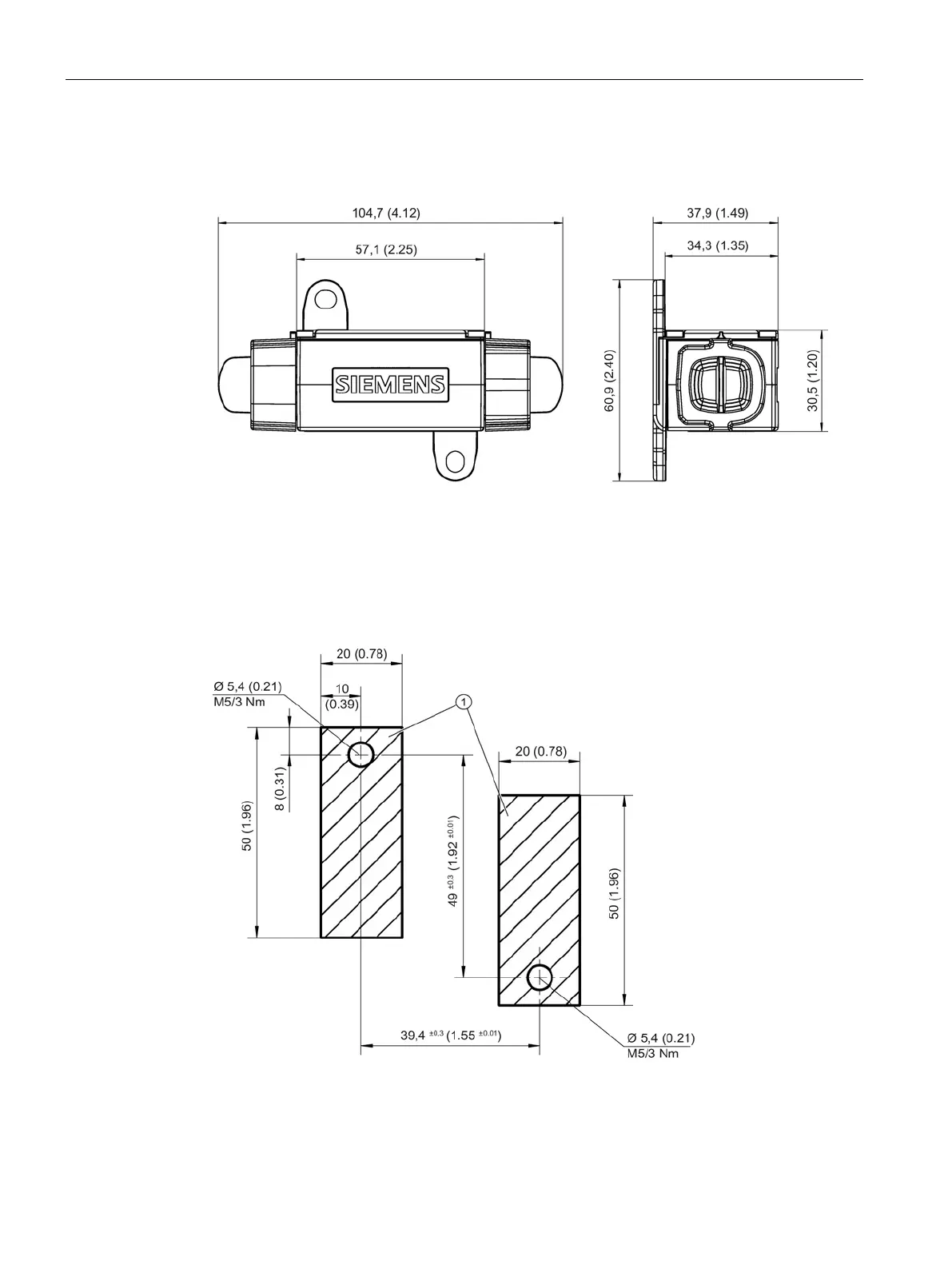

Figure 11-41 Dimension drawing of the DRIVE-CLiQ coupling, all dimensions in mm and (inches)
11.7.4
Mounting
â‘
Contact surface
Figure 11-42 Hole drilling pattern for installation
