Siemens SINAMICS S120 User Manual

Line Modules Booksize
4.9 Smart Line Modules with internal air cooling
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
273

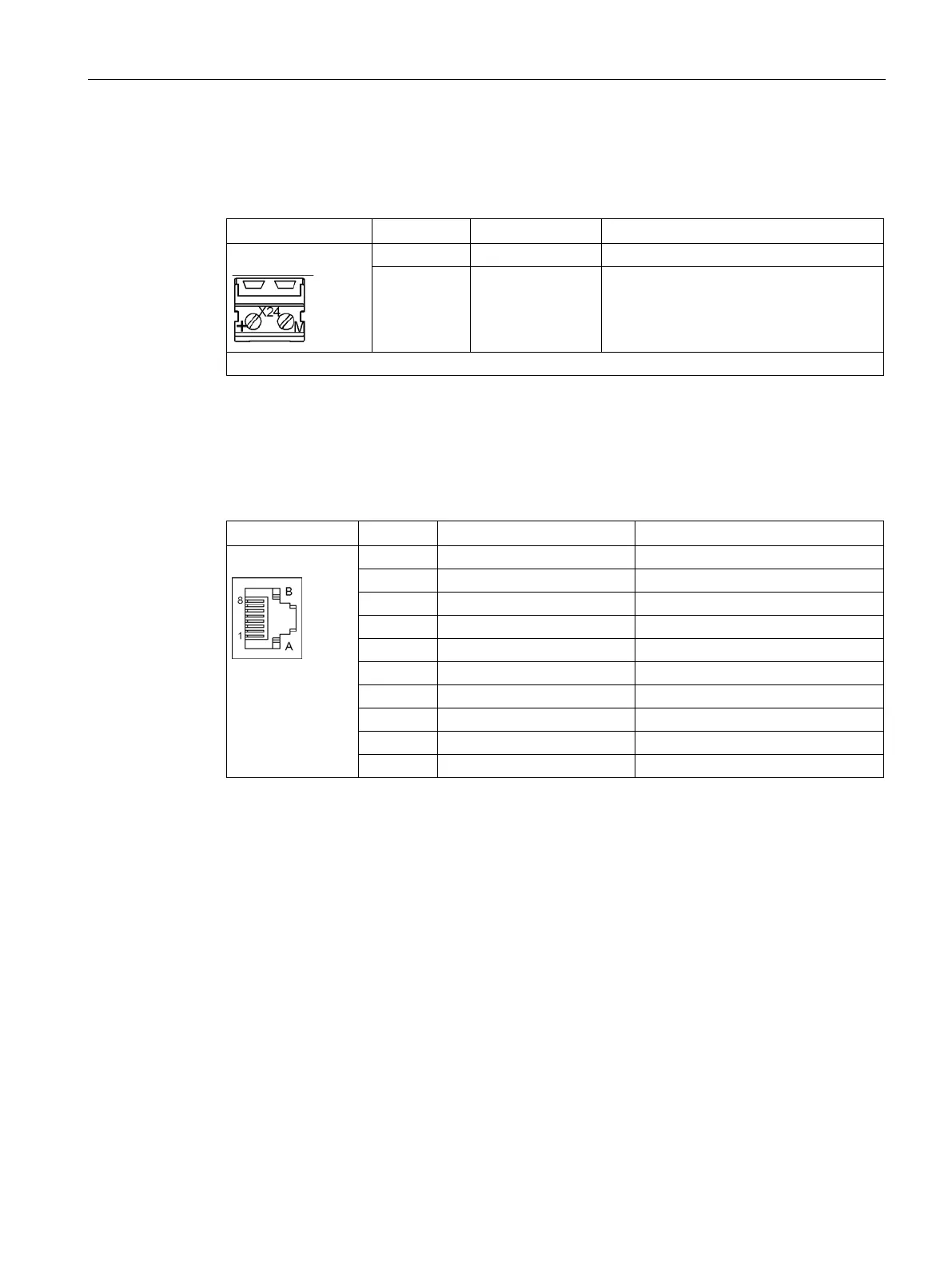

4.9.4.5
X24 24 V terminal adapter
Table 4- 69 X24: 24 V terminal adapter
Terminal
Designation
Technical data
+
24 V power supply
24 V DC supply voltage
M Ground Electronics ground
Type: Screw terminal 5 (Page 730)
The 24 V terminal adapter is included in the scope of supply.
4.9.4.6
X200-X202 DRIVE-CLiQ interfaces
Table 4- 70 X200-X202: DRIVE-CLiQ interfaces
PIN
Signal name
Technical data
1
TXP
Transmit data +
2
TXN
Transmit data -
3
RXP
Receive data +
4
Reserved, do not use
5
Reserved, do not use
6
RXN
Receive data -
7
Reserved, do not use
8
Reserved, do not use
A
+(24 V)
24 V power supply
B
M (0 V)
Electronics ground
The blanking covers for the DRIVE
-CLiQ interfaces are included in the scope of delivery.
Blanking cover (50 pcs.) Article number: 6SL3066-4CA00-0AA0
