Line Modules Booksize
4.11 Smart Line Modules with cold plate
Booksize Power Units
318 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8

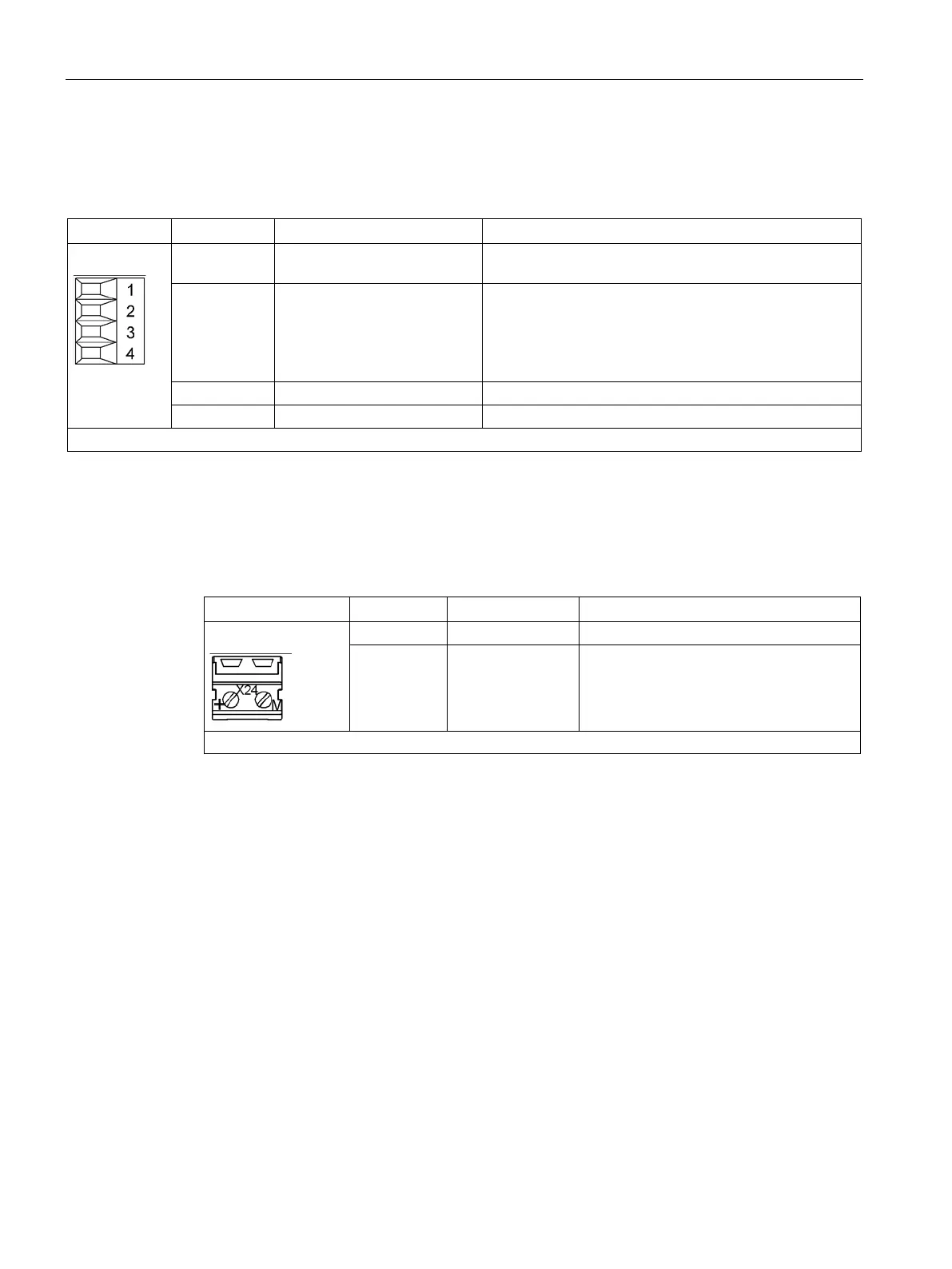

Table 4- 88 X22 digital inputs for Smart Line Modules 5 kW and 10 kW
1 24 V power supply Electronics power supply for controlling digital inputs
2 DI: Disable Regeneration Deactivate regenerative feedback (high active)
No power is supplied back to the network from the DC
link. The regenerative energy of the motors may have to
be reduced using a combination of the Braking Module
Reset faults (negative edge)
Type: Screw terminal 1 (Page 730)
X24 24 V terminal adapter
Table 4- 89 X24: 24 V terminal adapter
M Ground Electronics ground
Type: Screw terminal 5 (Page 730)
The 24 V terminal adapter is included in the scope of supply.
