Siemens SINAMICS S120 User Manual

Line connection and line-side power components
3.7 Line filters
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
67

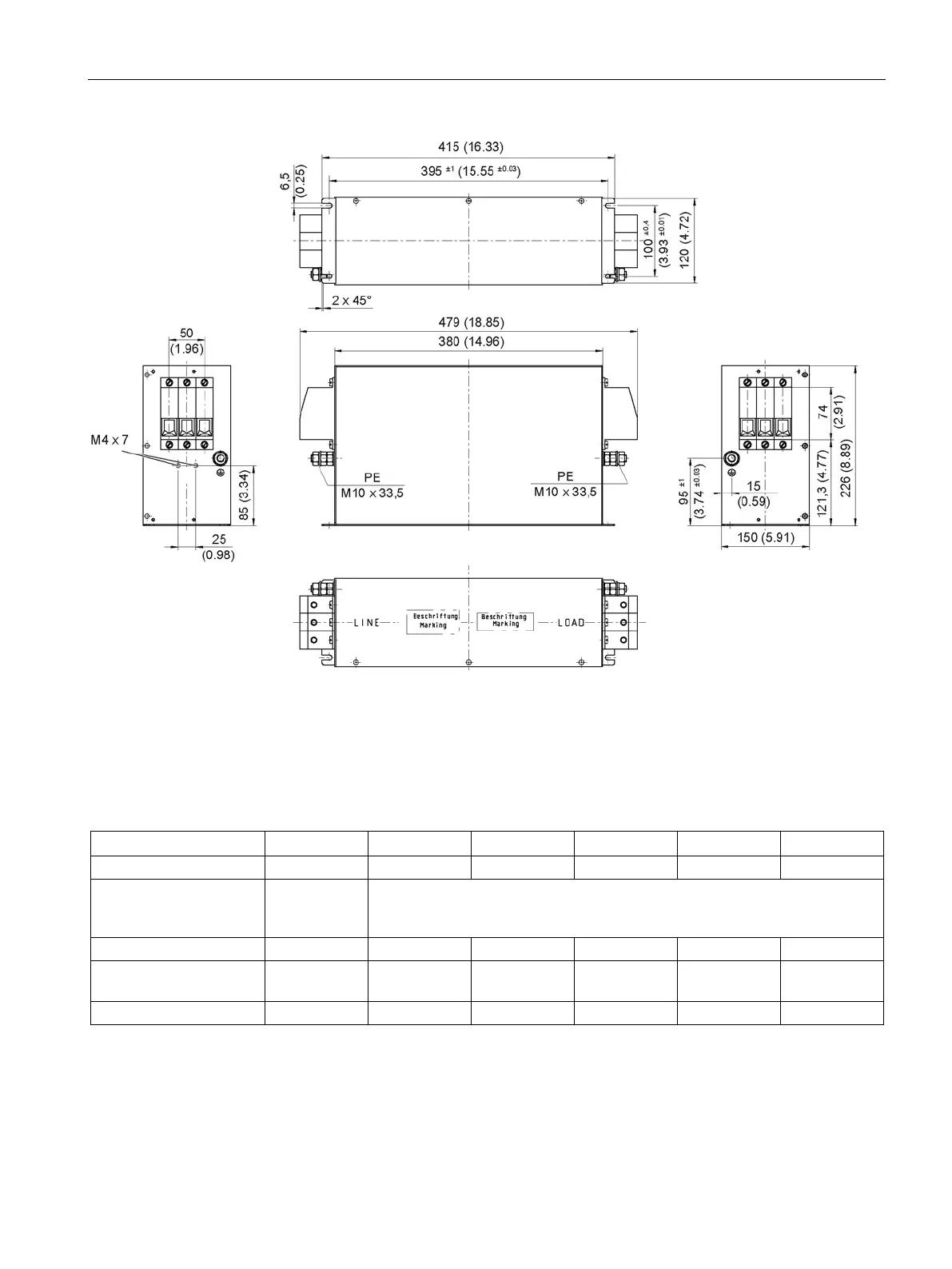

Figure 3-9 Dimension drawing of Basic Line Filter for Active Line Modules 80 kW and 120 kW, all dimensions in mm and
(inches)
3.7.3.4
Technical data
Table 3- 6 Technical data of the Basic Line Filter for Active Line Modules with Active Interface Module
6SL3000-
0BE21-6DA.
0BE23-6DA1
0BE25-5DA.
0BE28-0DA.
0BE31-2DA.
Rated power
kW
16
36
55
80
120
Supply voltage:
Line voltage
Line frequency
V
AC
Hz
3 AC 380 -10 % (-15 % < 1 min) … 3 AC 480 +10 %
47 … 63 Hz
Rated current
A
AC
36
74
105
132
192
Power loss (see power
loss tables (Page 756))
W 16 26 43 56 73
Weight
kg
5
7.5
11.5
17.5
18.5
