Line connection and line-side power components
3.7 Line filters
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
63
Interface description
Overview

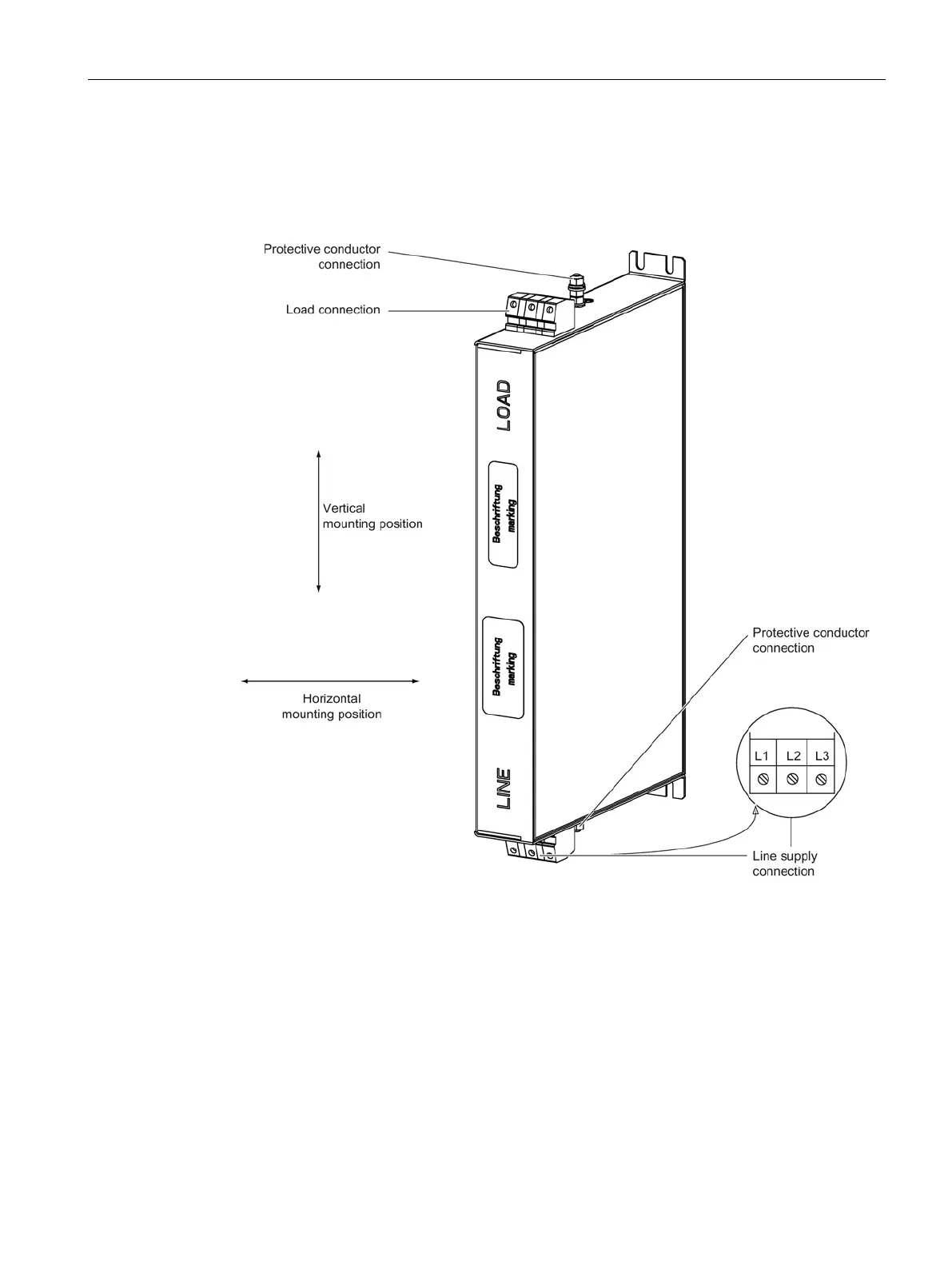

Figure 3-5 Interface overview, Basic Line Filter for Active Line Modules (example: 16 kW)
When connecting the protective conductor, either the upper or the lower screw can be used.
One of the screws remains unused. "Looping-through" the protective connection to the line
reactor is not permissible.
