Connecting a direct measuring system
The various options of connecting a direct measuring system with DRIVE-CLiQ ASIC and
M12 plug via MOTION-CONNECT cables to a DRIVE-CLiQ component are shown in the
following diagram.
1. Direct connection via the basic cable
2. Basic cable and 1-2 extensions
3. Basic cable, cabinet bushing and a maximum of one extension
M12 socket (IP67) connected to a MOTION-CONNECT DRIVE-CLiQ signal cable
M12 plug (IP67) connected to a MOTION-CONNECT DRIVE-CLiQ signal cable
M12 plug (IP67) connected to a third-party measuring system
DRIVE-CLiQ cabinet bushing M12

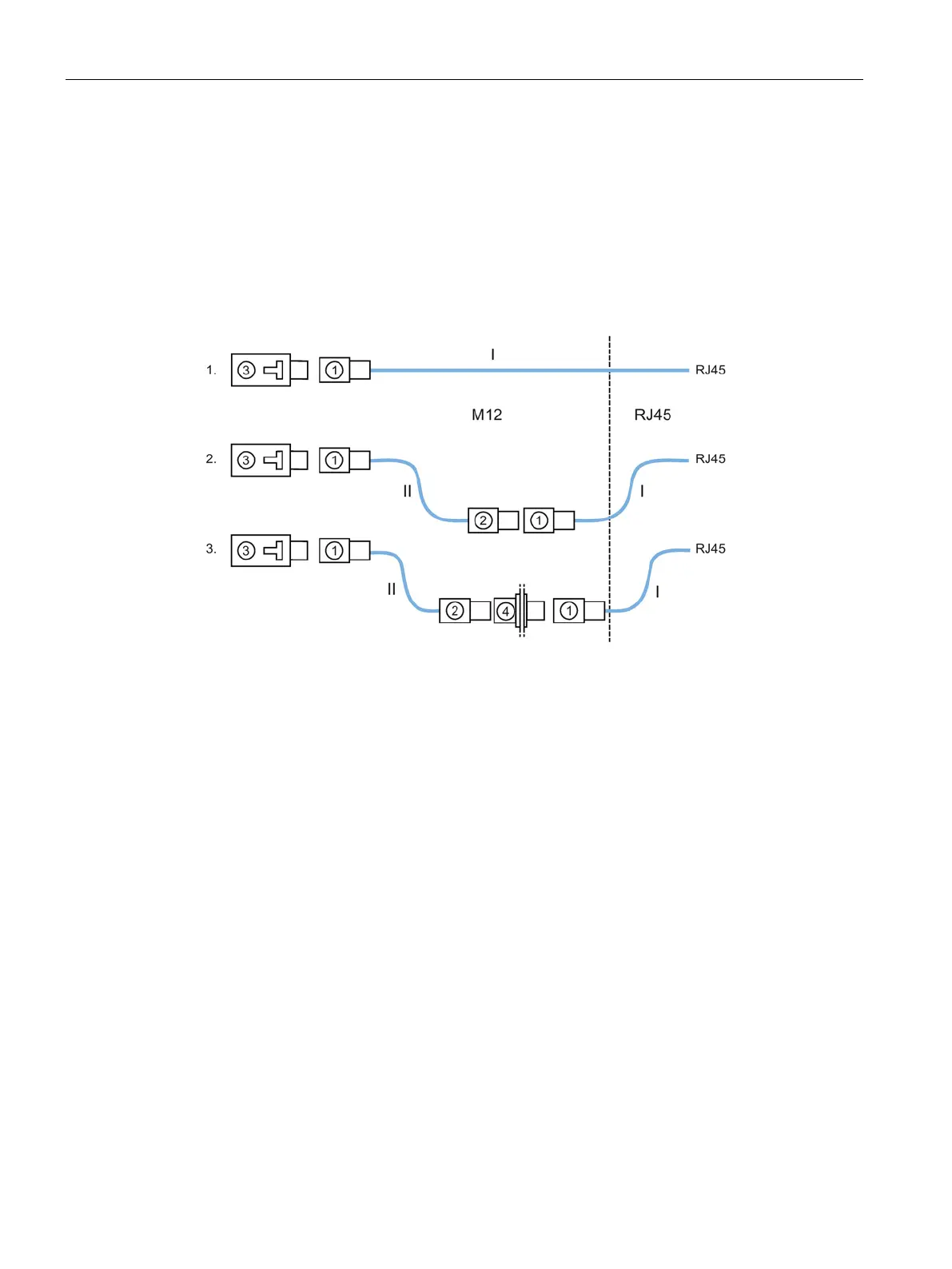

Figure 12-27 Connecting a direct measuring system with M12 plug to a DRIVE-CLiQ component with
RJ45 socket (IP20)
