Line Modules Booksize
4.4 Active Line Modules with external air cooling
Booksize Power Units
184 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
Mounting plate with openings for mounting

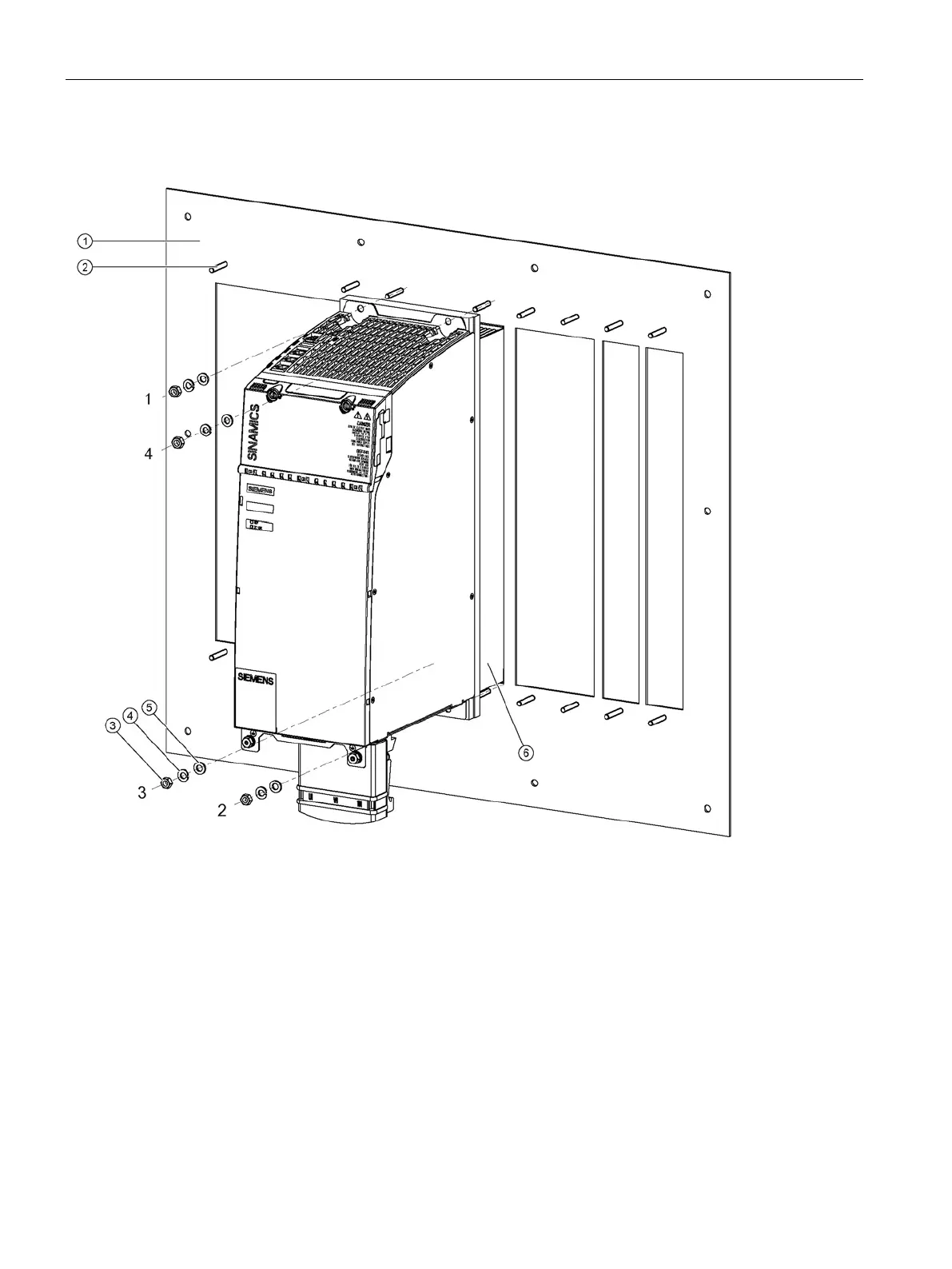

Figure 4-17 Mounting an Active Line Module with external air cooling (example: 36 kW)
:
1. Firstly, tighten the nuts by hand.
Tightening torque: 0.5 Nm
2. Then tighten the nuts in the specified sequence 1 to 4.
Tightening torque: 6 Nm
