Motor Modules Booksize

6.3 Motor Module with external air cooling

Booksize Power Units

392 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8

6.3.5

Dimension drawings

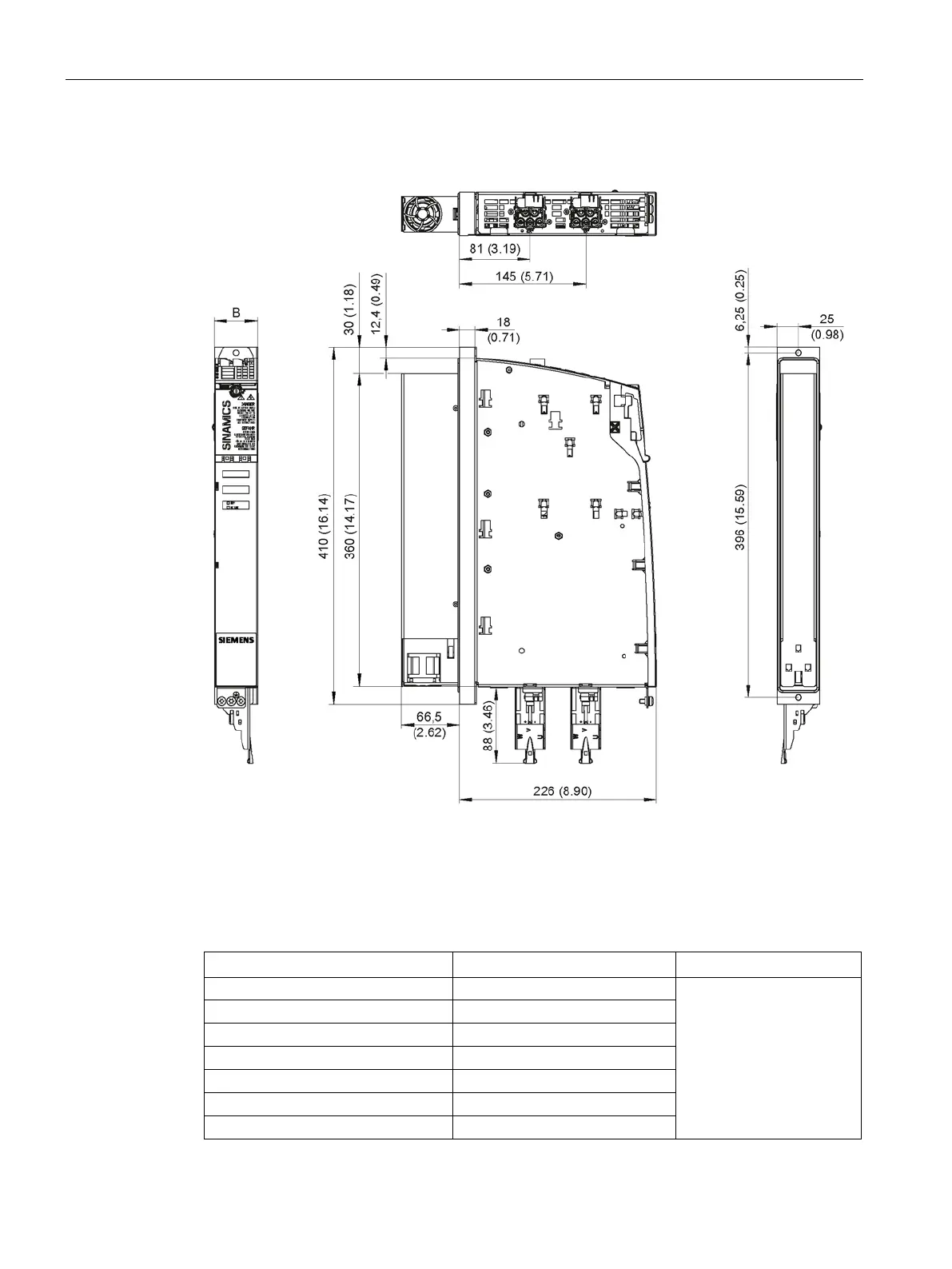

Figure 6-34 Dimension drawing of 3 A to 18 A and 2 x 3 A to 2 x 9 A Motor Modules Booksize with

external air cooling, all dimensions in mm and (inches); example: 2 x 5 A Double Motor

Module

Table 6- 22 Dimensions of 3 A to 18 A and 2 x 3 A to 2 x 9 A Motor Modules Booksize with external

air cooling

Motor Module

Article No.

B [mm] (inch)

Single Motor Module 3 A

6SL3121-1TE13-0AA.

50 (1.97)

Single Motor Module 5 A 6SL3121-1TE15-0AA.

Single Motor Module 9 A

6SL3121-1TE19-0AA.

Single Motor Module 18 A

6SL3121-1TE21-8AA.

Double Motor Module 2 x 3 A

6SL3121-2TE13-0AA.

Double Motor Module 2 x 5 A

6SL3121-2TE15-0AA.

Double Motor Module 2 x 9 A

6SL3121-2TE21-0AA.
