Siemens SINAMICS S120 User Manual

DC link components
8.2 Braking Module Booksize
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
491
8.2.3.2
X1 braking resistor connection

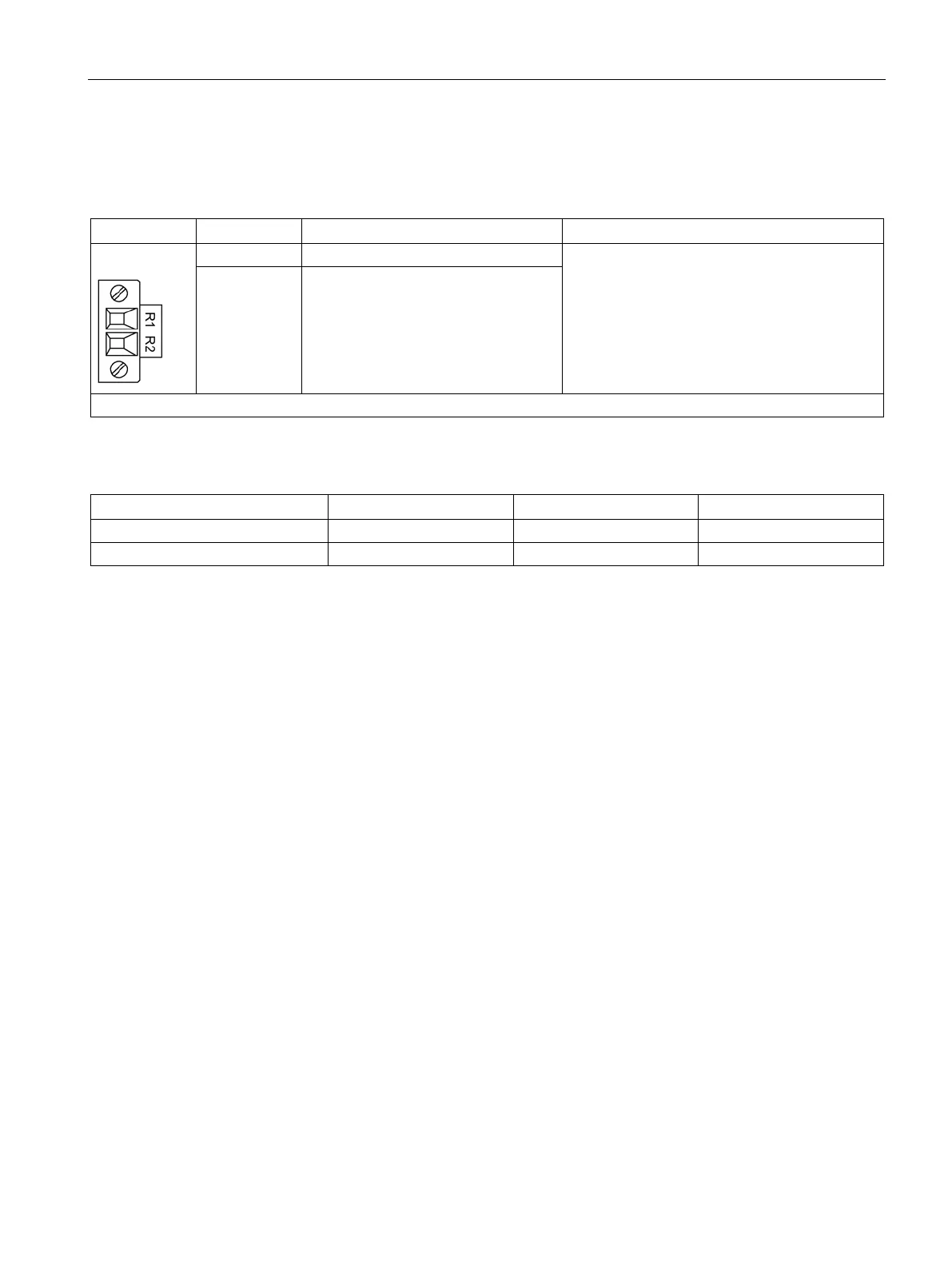

Table 8- 1 X1 braking resistor connection
Terminal
Designation
Technical data
1
Braking resistor connection R1
Continuously short-circuit proof
2 Braking resistor connection R2
Type: Screw terminal 4 (Page 730)
Table 8- 2 Braking resistors without a thermostatic switch for Braking Modules
Braking resistor
R in Ω
P
N
in kW
P
max
in kW
6SN1113-1AA00-0DA0
17
0.3
25
6SL3100-1BE31-0AA0
5.7
1.5
100
For detailed technical information on the braking resistors, see the section entitled Braking
resistors (Page 549).
