Motor Modules Booksize
6.4 Motor Modules with cold plate
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
441
kg 4.5 4.5 4.5
Default for 400 V line systems; undervoltage trip threshold can be reduced by up to 80 V and is adjusted to the parame-
terized rated voltage
2)
Rated power of a typical standard induction motor at 400 V 3 AC
Note
Disturbance of the 2 x 9 A Double Motor Module with 300% overload during operation on a
16 kW Line Module
The maximum output of a 16
kW Line Module is not sufficient for the operation of a 2 x 9 A
Double Motor Module with 300% overload.
Do NOT operate a 2 x 9 A Double Motor Module with a 16 kW Line Module with 300%
overload (i.e. only operate a 2 x 9 A Double Motor Module with a 16 kW Line Module, if
the maximum current is limited to 2 x I
rated
).
Use at least a 36 kW Active Line Module or Smart Line Module for operation with 300%
overload.
Characteristics for Motor Modules Booksize with 300% overload
Rated duty cycles Motor Modules Booksize with 300% overload

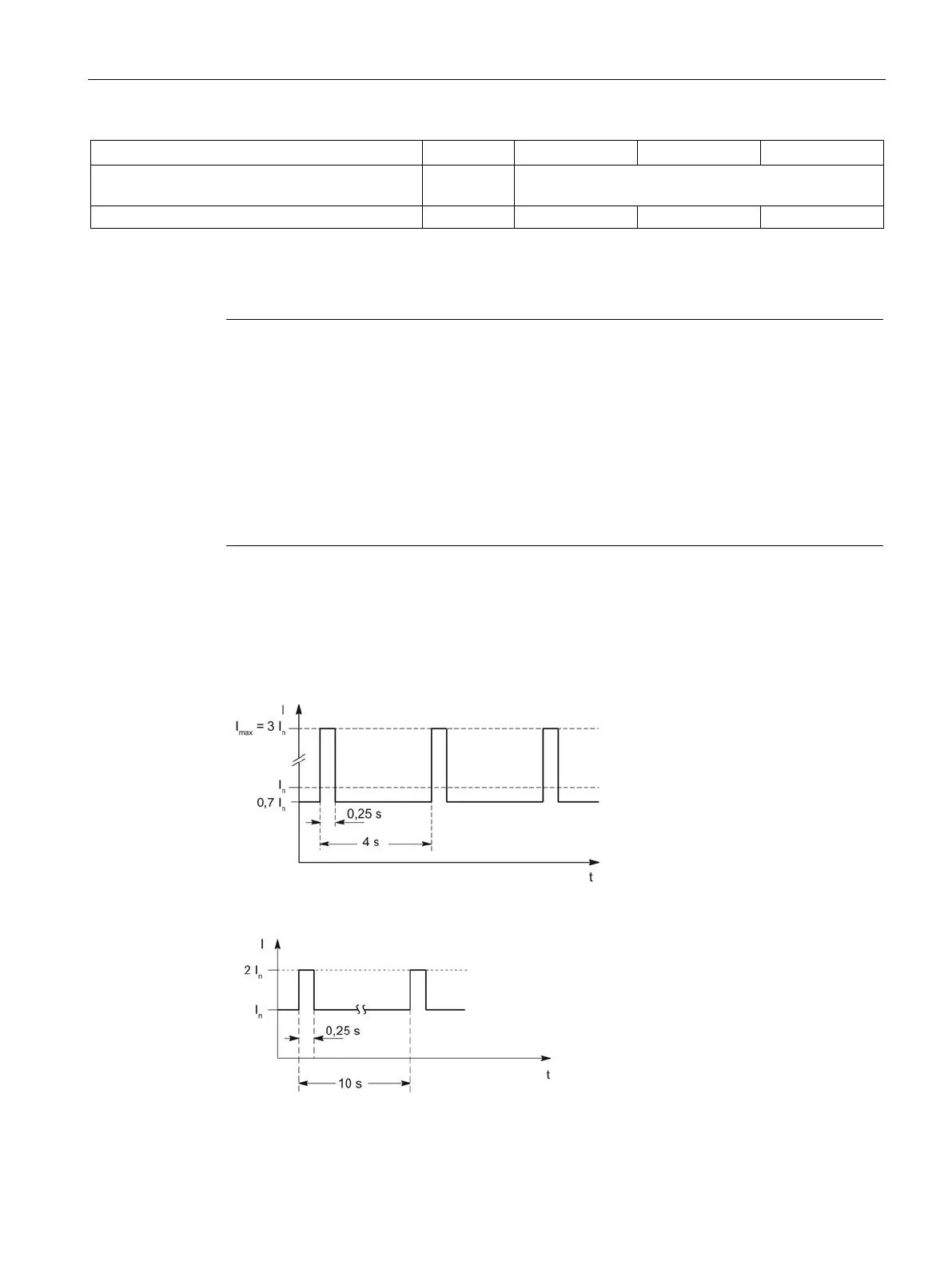

Figure 6-81 Peak current duty cycle with initial load (300% overload)
Figure 6-82 Duty cycle with initial load
