Accessories
11.6 DRIVE-CLiQ cabinet bushings
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
657
DRIVE-CLiQ cabinet bushing for cables with M12 plug/socket
Prepare the cabinet panel for mounting the DRIVE-CLiQ cabinet bushing M12 as shown
below. The removable O ring can be screwed from the inside or the outside.
Mounting from the inside using an O ring that can be screwed
Through-hole with chamfer

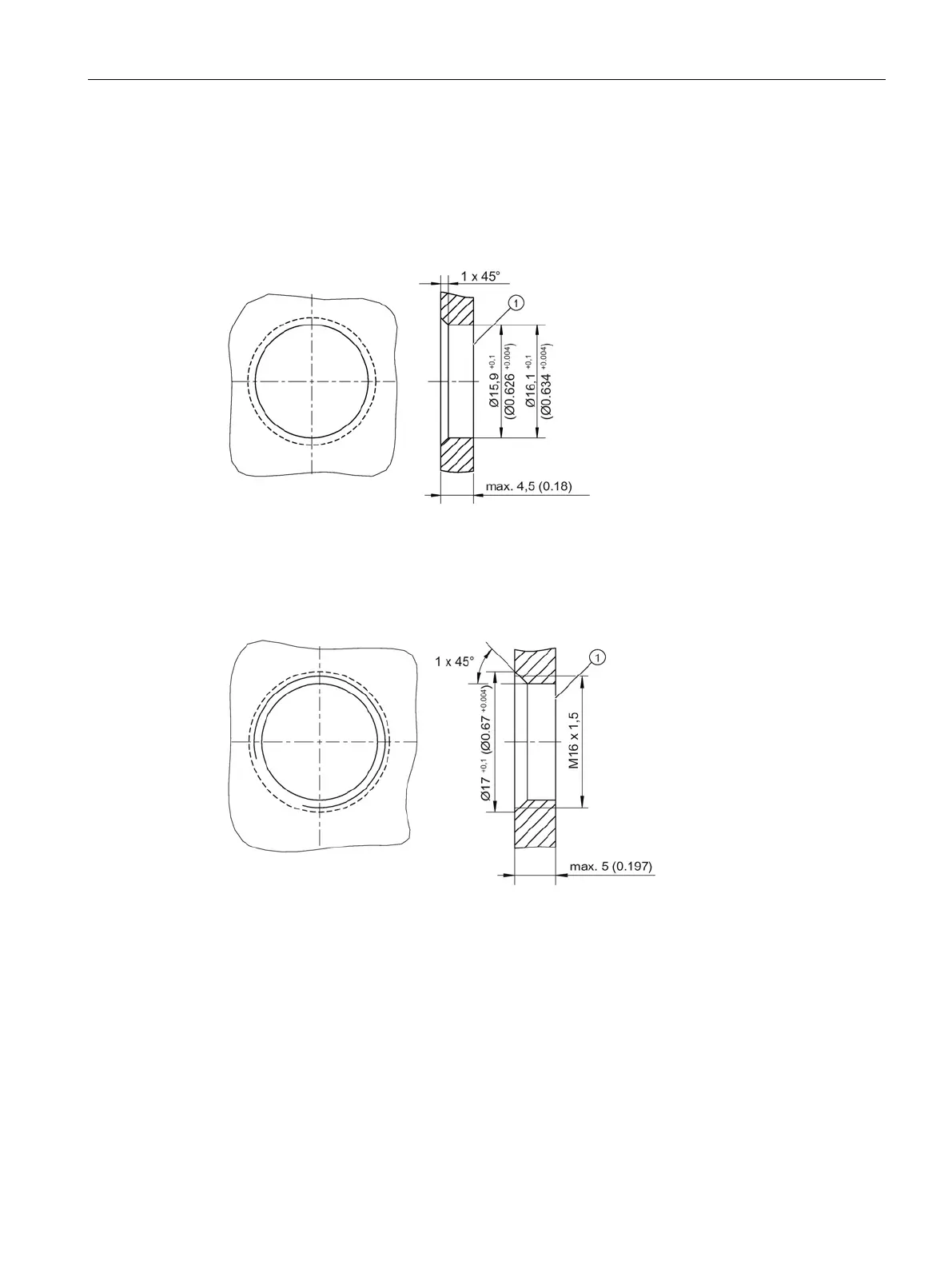

Figure 11-37 Through-hole for mounting the DRIVE-CLiQ cabinet bushing M12 with an O-ring that can
be screwed from the inside
Mounting from the outside using an O ring that can be screwed
Threaded hole with chamfer
Figure 11-38 Threaded hole for mounting the DRIVE-CLiQ cabinet bushing M12 with an O-ring
that can be screwed from the outside
