Siemens SINAMICS S120 User Manual

Line Modules Booksize
4.10 Smart Line Modules with external air cooling
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
291
4.10.4.2
X1 line connection

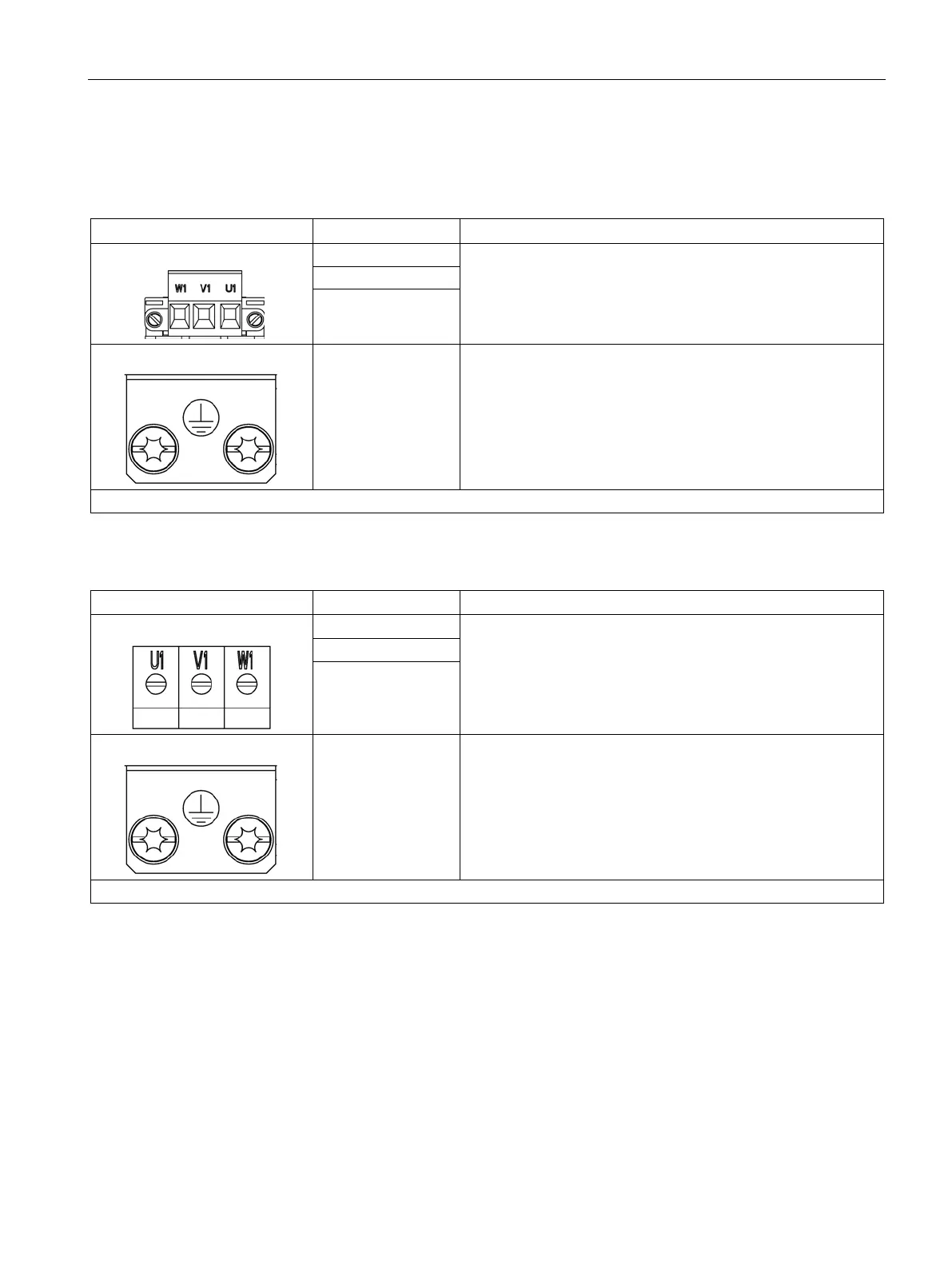

Table 4- 74 X1: Line connection for Smart Line Modules 5 kW and 10 kW
Terminal
Technical data
U1
Supply voltage:
3 AC 380 … 480 V, 50 / 60 Hz
Type: Screw terminal (Page 730)
V1
W1
PE connection Threaded hole M5 / 3 Nm
1
1)
For ring cable lugs without insulation (Page 732)
Table 4- 75 X1: Line supply connection for Smart Line Modules 16 kW
Terminal
Technical data
U1
Supply voltage:
3 AC 380 … 480 V, 50 / 60 Hz
Type: Screw terminal 6 (Page 730)
V1
W1
PE connection Threaded hole M5 / 3 Nm
1
1)
For ring cable lugs without insulation (Page 732)
