Line Modules Booksize
4.6 Active Line Modules Liquid Cooled
Booksize Power Units
218 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
4.6.5
Dimension drawing
â‘
Pipe thread ISO 228 G ½ B.

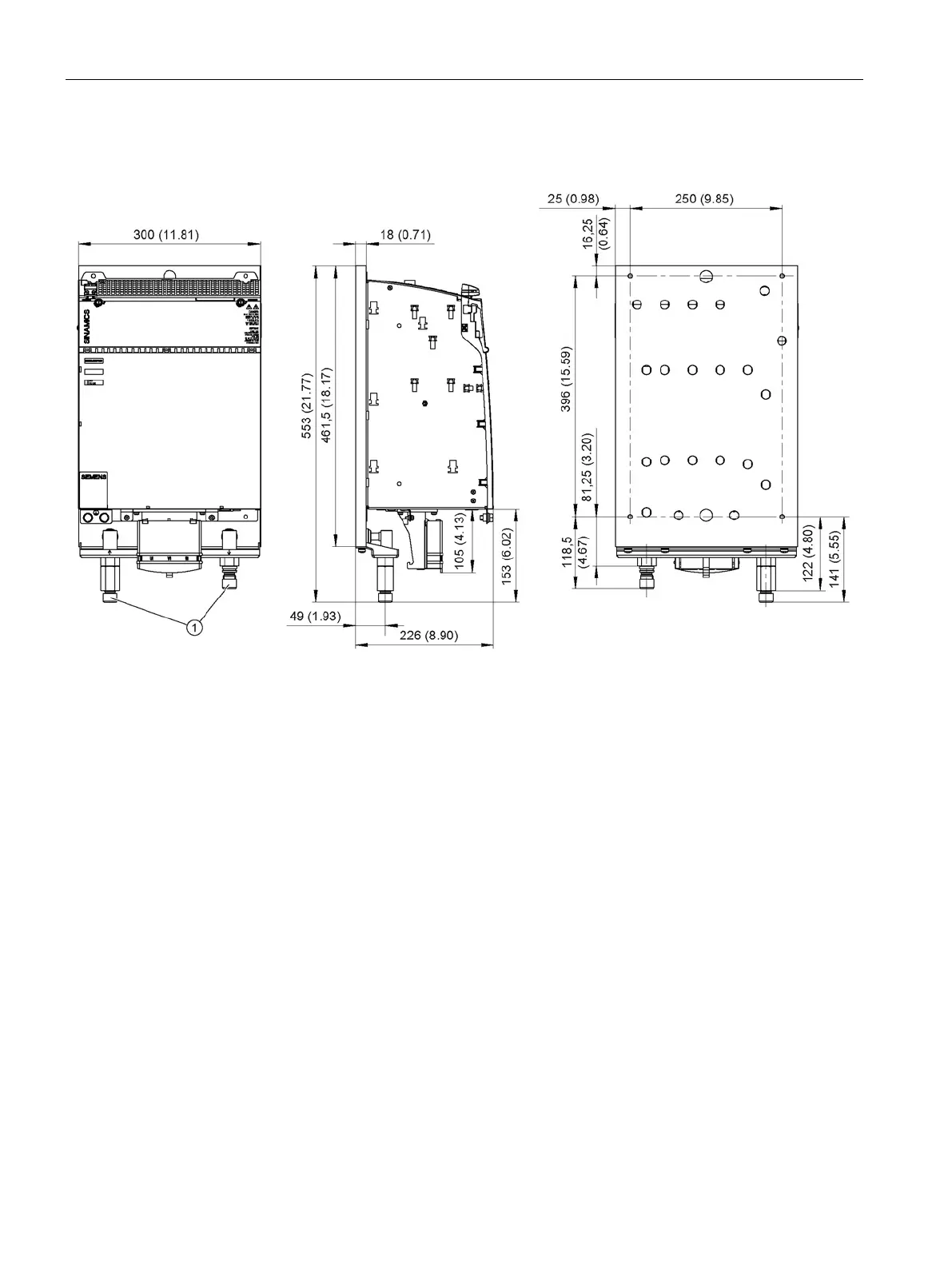

Figure 4-36 Dimension drawing of Active 120 kW Line Module Liquid Cooled, all dimensions in mm and (inches)
