Accessories
11.3 Reinforced DC link busbars
Booksize Power Units
620 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
Reinforced DC link busbars
11.3.1
Reinforced DC-link busbars are available for 50 mm and 100 mm wide components of the
Booksize and Booksize Compact series. They are used to increase the current carrying
capacity of the components used to conduct the DC-link current from 100 A to 150 A.

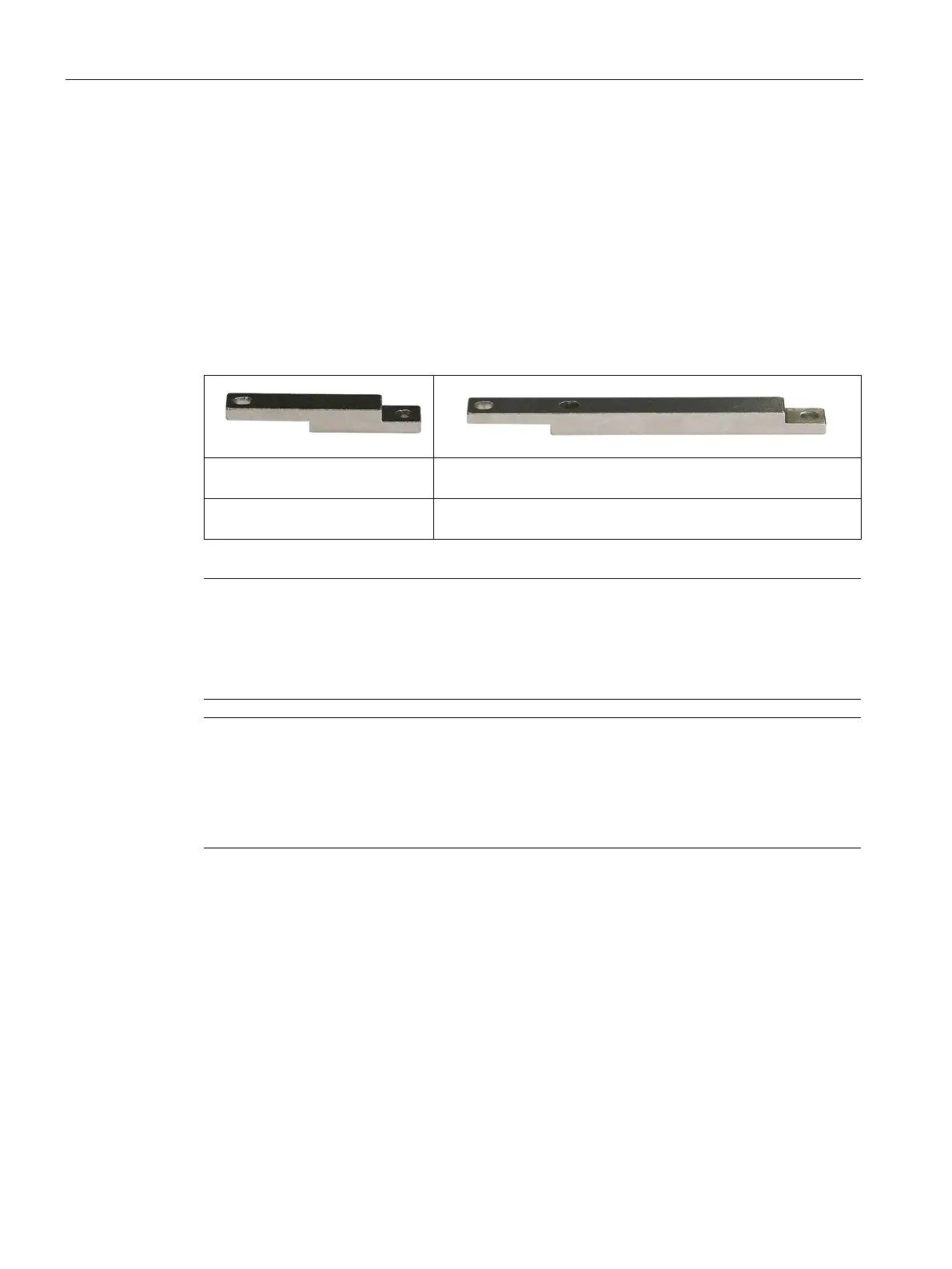

Table 11- 11 Reinforced DC-link busbars
Reinforced DC link busbar for
Reinforced DC link busbar for 100 mm wide components
Article number: 6SL3162-2DB00-
Article number: 6SL3162-2DD00-0AA.
The busbar must always be mounted with the longer narrow edge on the left (see above).
Reinforced DC link busbars must not be installed at the left-hand module in the drive line-
up.
Note
DC-link rectifier adapter / DC-link adapter
Note the following when using reinforced DC link busbars:
It is not possible to use a DC link rectifier adapter!
Use the 2-hole adapter as DC link adapter (Article number: 6SL3162-2BM10-0AA0).
Notes on configuration and arrangement of the components in the drive line-up can be found
in the Chapter, Arrangement of components and devices (Page 671).
