Accessories
11.1 Shield connecting plates for power supply and motor cables
Booksize Power Units
594 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
11.1.3
Overview examples

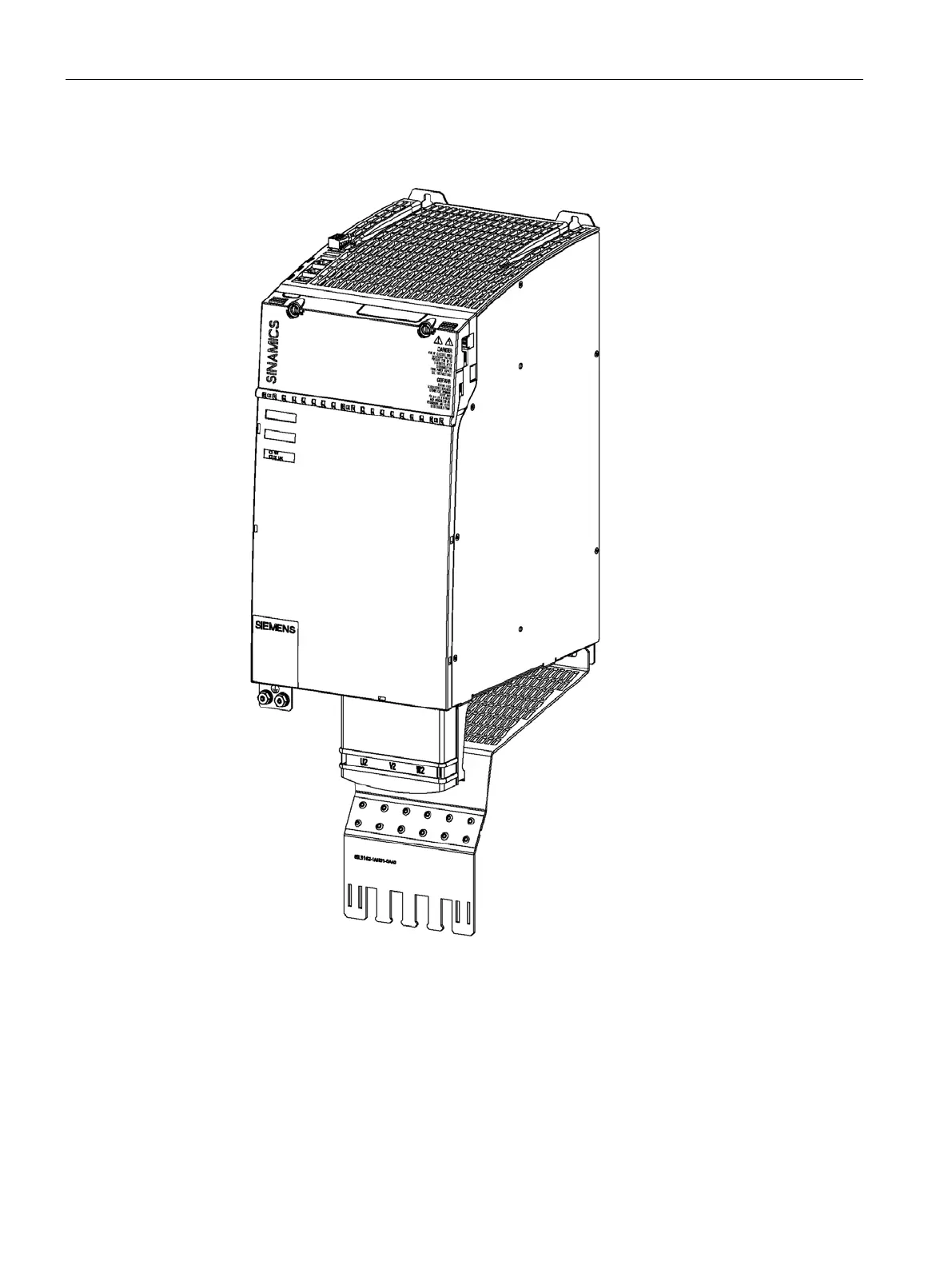

Figure 11-1 Shield connecting plate for a 200 mm module with internal air cooling
