Motor Modules Booksize
6.4 Motor Modules with cold plate
Booksize Power Units
418 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
Motor and brake connection

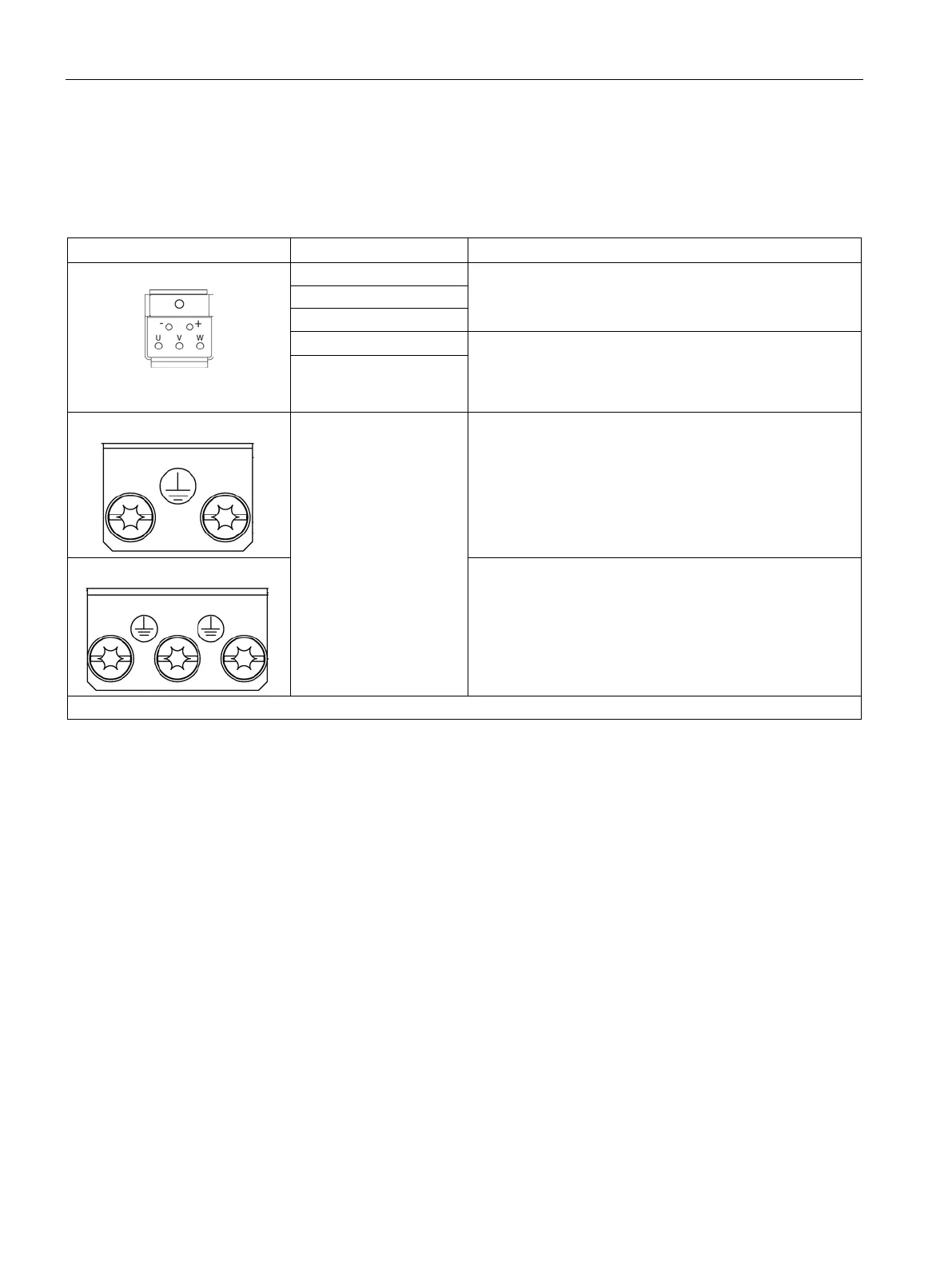

Table 6- 32 X1/X2 motor and brake connections for Single Motor Modules 3 A to 30 A and Double Motor Modules 2 x 3 A
to 2 x 18 A
+ (BR+)
Supply voltage: 24 V DC ±10 %
Max. load current: 2 A
Minimum load current: 0.1 A
- (BR-)
PE connection
Single Motor Modules 3 ... 30 A:
Threaded hole M5 / 3 Nm
1)
Double Motor Modules 3 ... 18 A:
Threaded hole M5 / 3 Nm
1)
1)
For ring cable lugs without insulation (Page 732)
