Accessories
11.5 DC link adapter
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
649
Fixing the cables to the rear cabinet panel
1. Fix the DC link connecting cables directly next to the last component at the rear control
cabinet panel. Use the C-profile rails and the appropriate cable clamps from the Rittal
company. The distance between the C profile rail and the lower side of the component is
approximately 125 mm.
2. Appropriately insulate the cable cores at the connection location before mounting.
Cores of the DC link connecting cable
C-profile rail from Rittal company (article number 7831.570 / 7831.571)
Cable clamps for C profile rails from the Rittal company.

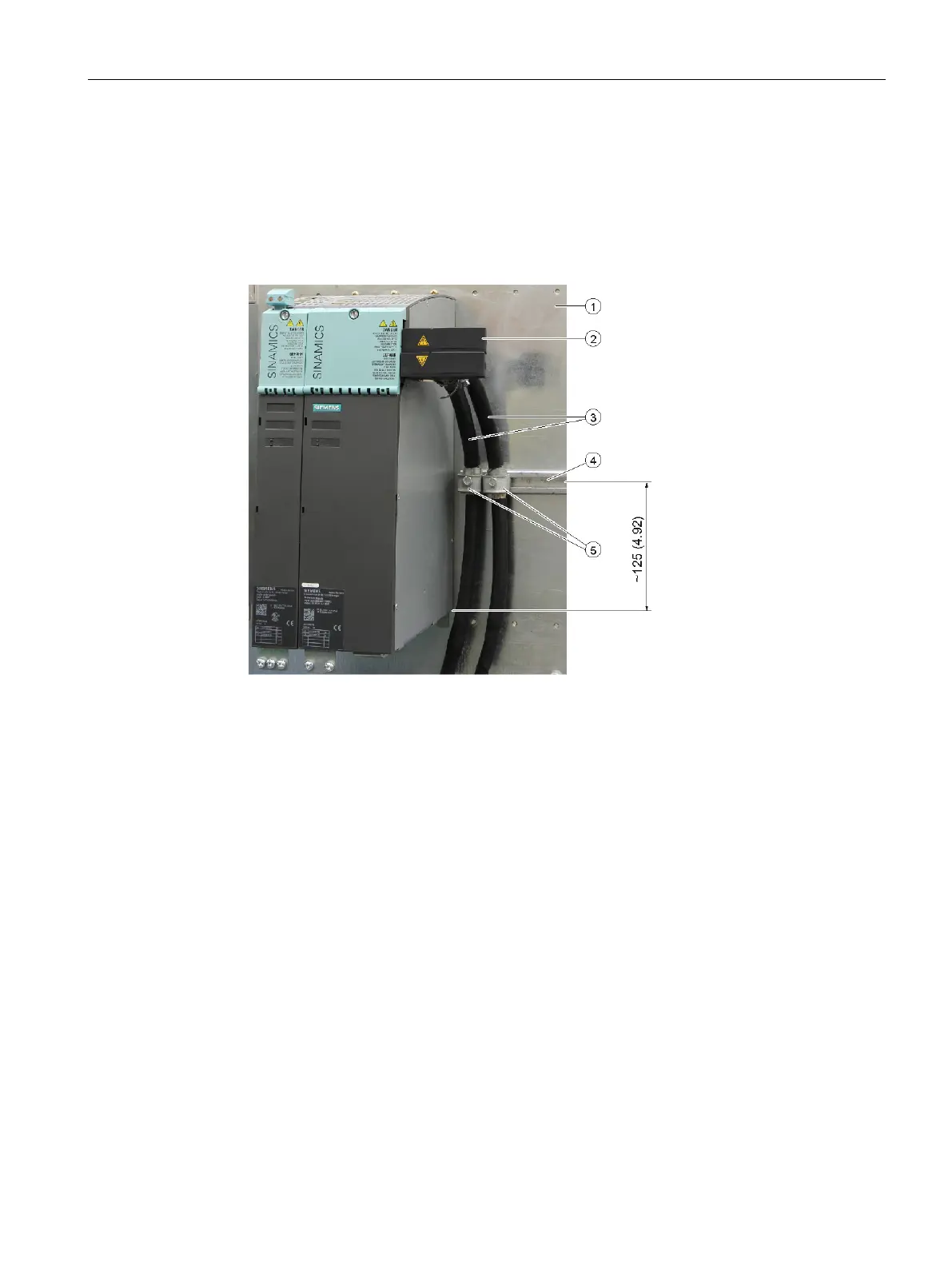

Figure 11-30 Fixing the DC link connecting cable to the control cabinet panel, dimensions in mm
and (inch)
