12.7 Connection systems
Booksize Power Units
Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
705
Table 12- 11 Overview of pre-assembled DRIVE-CLiQ signal cables
Type of DRIVE-CLiQ signal
cable
24 V cores
Degree of protection
Connector type
IP20
IP67
6SL3060-4A..
6FX2002-1DC..
-- x x RJ45
6FX5002-2DC00..
to .. -2DC20..
6FX8002-2DC00..
to .. -2DC20..
x x x DRIVE-CLiQ
6FX5002-2DC30..
6FX8002-2DC30..
x X
(DRIVE-CLiQ)
X
(M12)
DRIVE-CLiQ /
M12
12.7.1.2
DRIVE-CLiQ signal cables without 24 V DC cores
Pre-assembled DRIVE-CLiQ signal cables without 24 V DC cores are used to connect
components with DRIVE-CLiQ connection, which have a separate or external 24 V DC
power supply. They are mainly intended for use in control cabinets. The signal cables are
available with RJ45 connectors in degrees of protection IP20 and IP67.
Table 12- 12 Actual lengths of the DRIVE-CLiQ jumpers for Line Modules and Motor Modules
DRIVE-CLiQ bridge
Cable length L
1)
50 mm
110 mm
100 mm
160 mm
150 mm
210 mm
200 mm
260 mm
250 mm
310 mm
300 mm
360 mm
350 mm
410 mm
1)
Cable length without connector
Cable lengths from 600 mm and higher are used to connect to other applications (e.g.
establish a 2nd line in the drive line-up, establish wiring in a star configuration etc. )

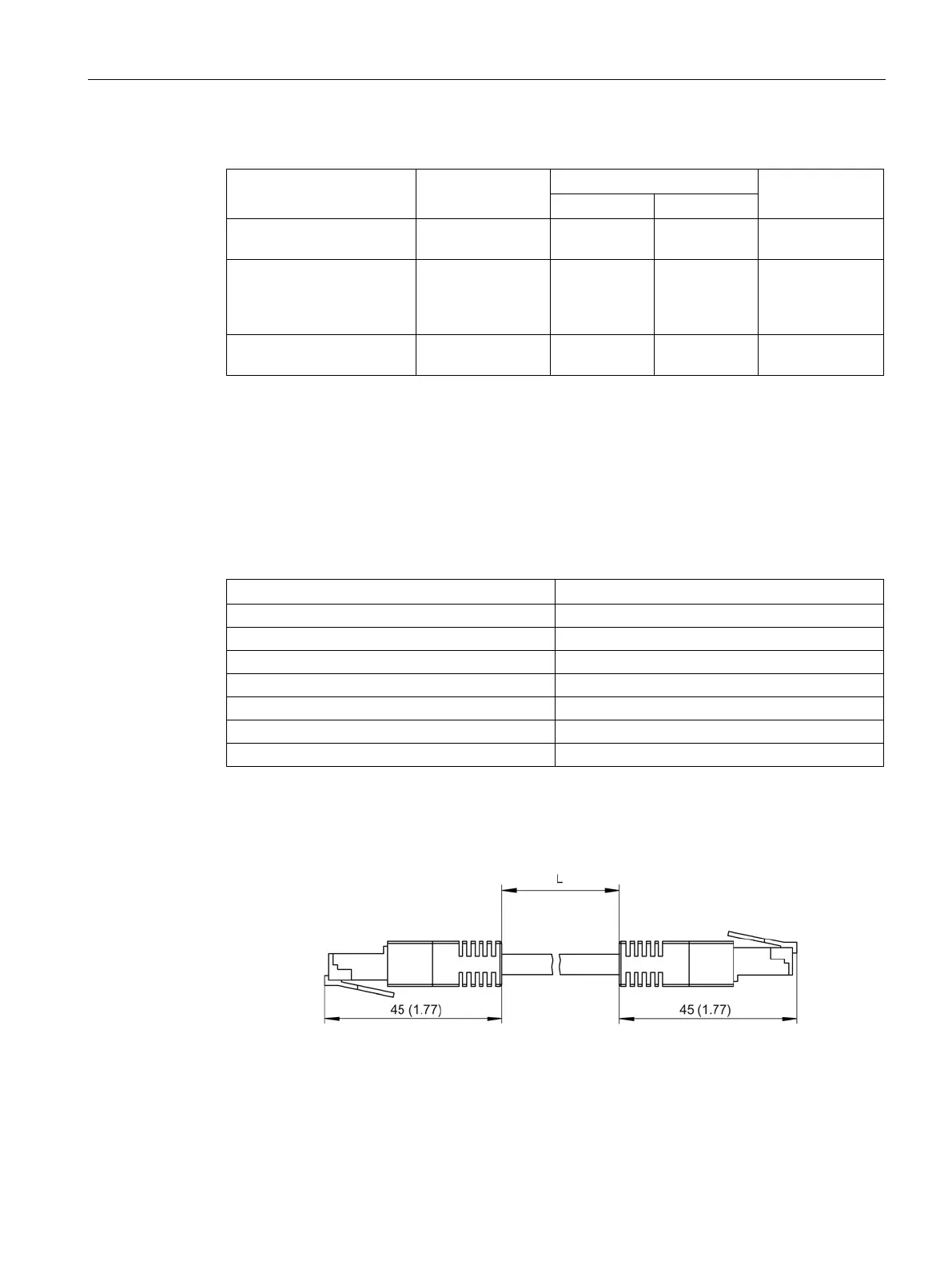

Figure 12-24 DRIVE-CLiQ signal cables without 24 V DC cores (IP20)
