Accessories
11.5 DC link adapter
Booksize Power Units
644 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
Note
By moving the adapter housing, the DC link adapter can be fitted on either the left
-hand or
-hand side of the component. This configuration is possible for all Active Line Modules.
Required tools:
● Slot-head screwdriver (1 x 5.5) for releasing the protective cover
● Torx screwdriver T20 for DC link screws (Torx slot)

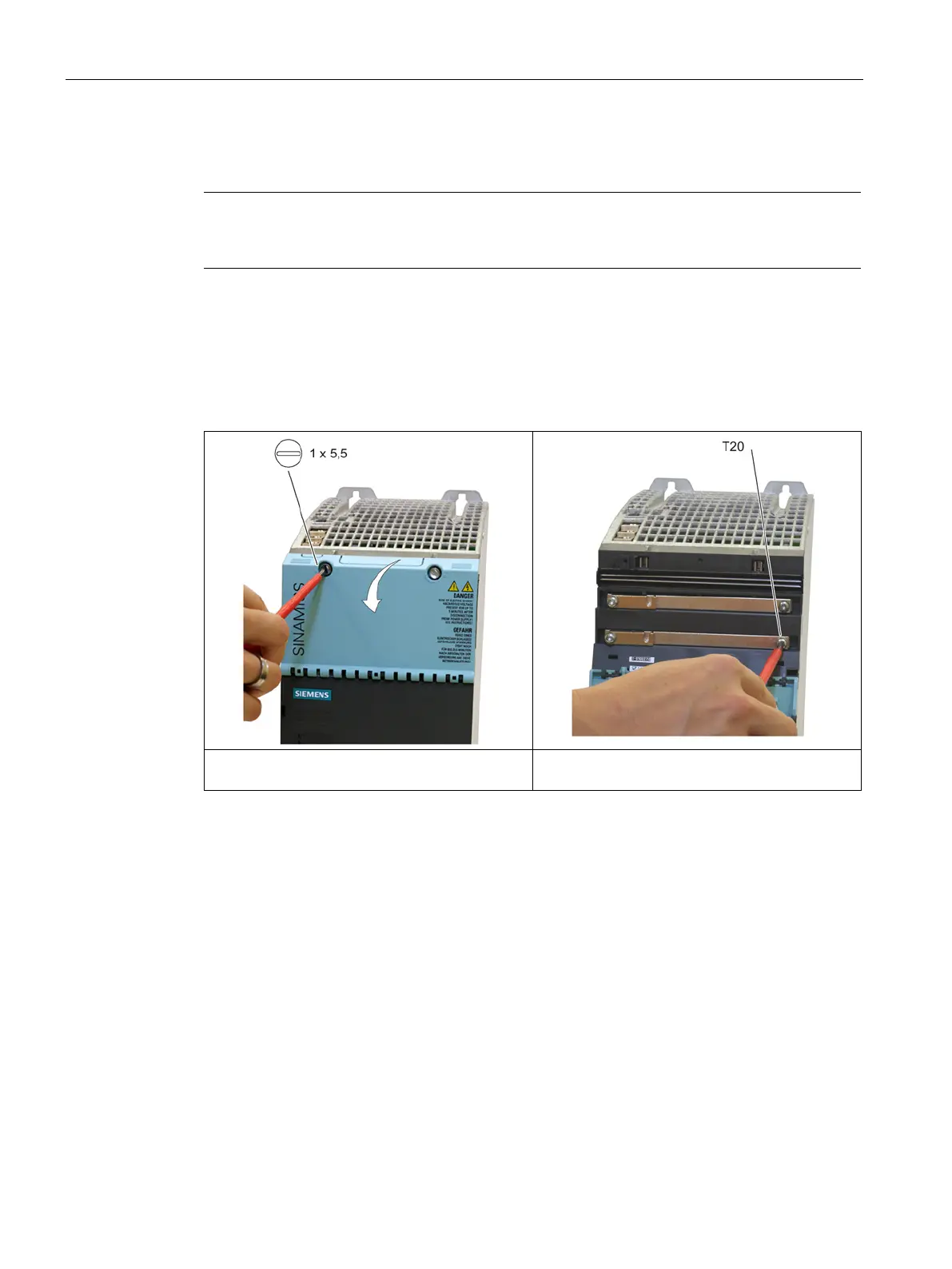

Table 11- 23 Mounting the DC link adapter
1. Release and open the protective cover of the
2. Remove the DC link screws.
