11.4 DC link rectifier adapter for Booksize format
Booksize Power Units
636 Manual, (GH2), 07/2016, 6SL3097-4AC00-0BP8
11.4.6
Electrical connection
Required tools:
● Flat-bladed screwdriver (0.8 x 4.0) for 50 mm and 100 mm components
● Size 6 Allen key for 150 mm, 200 mm and 300 mm components

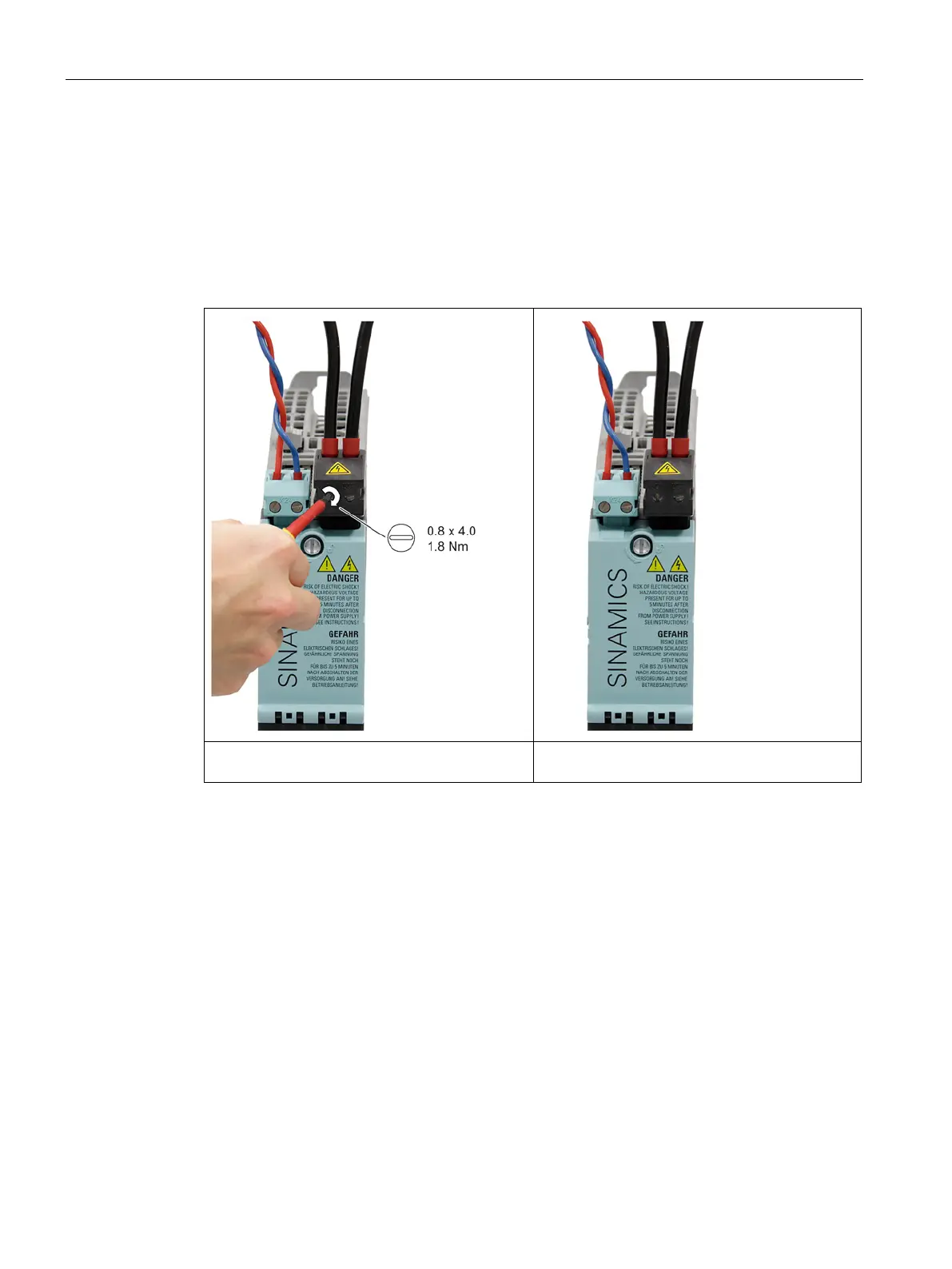

Table 11- 19 Electrically connecting the DC link rectifier adapter for 50 mm and 100 mm components
Install the cables at the DC link rectifier adapter
(0.8 x 4.0).
Connected DC link rectifier adapter
