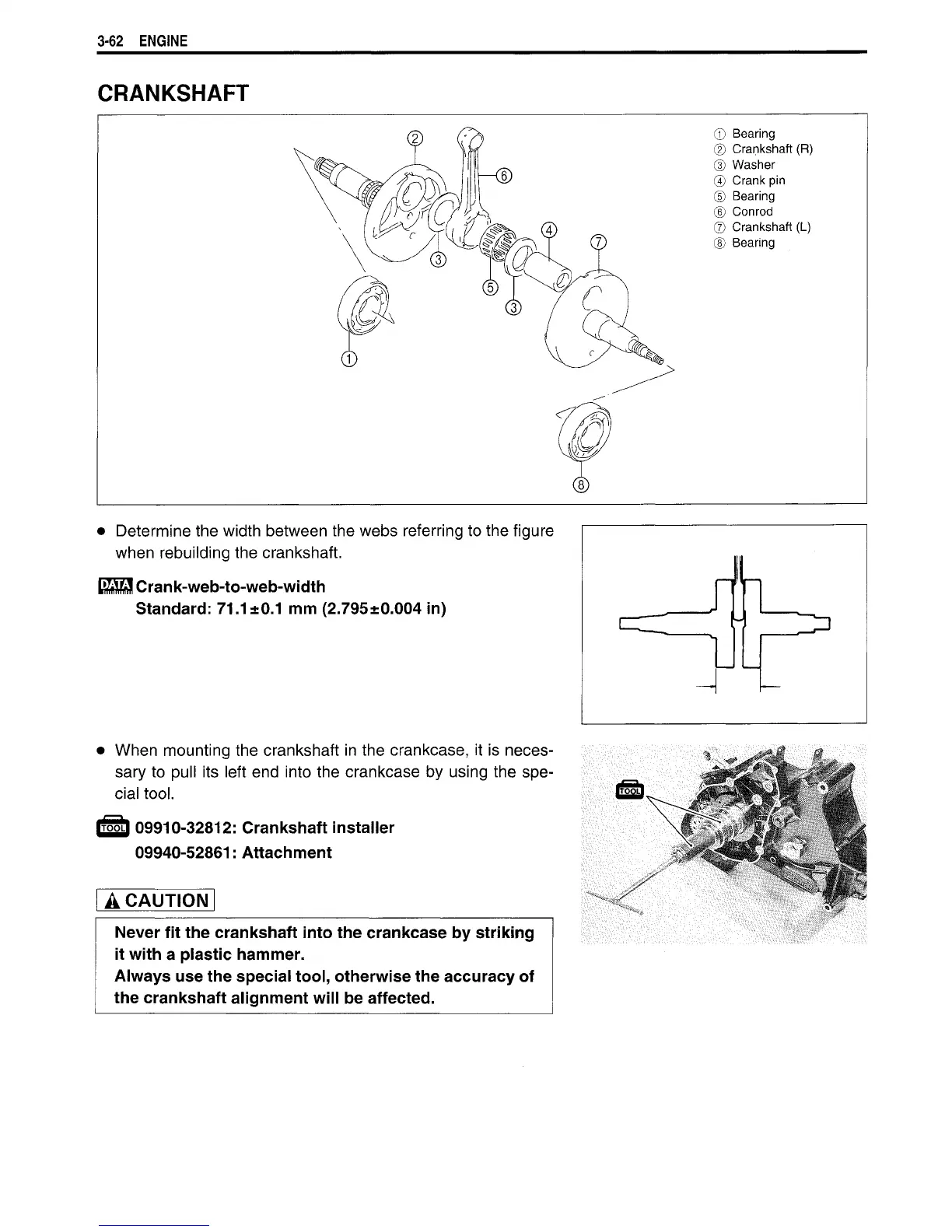

3-62 ENGINE
CRANKSHAFT
©
Bearing
©
Crankshaft
(R)
©
Washer
©
Crank
pin
©
Bearing
©
Conrod
©
Crankshaft
(L)
©
Bearing
•
Determine the
width
between the webs referring to the figure
when rebuilding the crankshaft.
Crank-web-to-web-width
Standard:
71.1 ±0.1 mm (2.795±0.004 in)
•
When
mounting the crankshaft in the crankcase, it is neces-
sary to pull its
left
end into the crankcase
by
using the spe-
cial
tool.
(T^L)
09910-32812: Crankshaft installer
09940-52861: Attachment
A CAUTION
Never fit the crankshaft into the
crankcase
by striking
it
with
a plastic hammer.
Always
use the
special
tool, otherwise the
accuracy
of
the crankshaft alignment will be affected.
