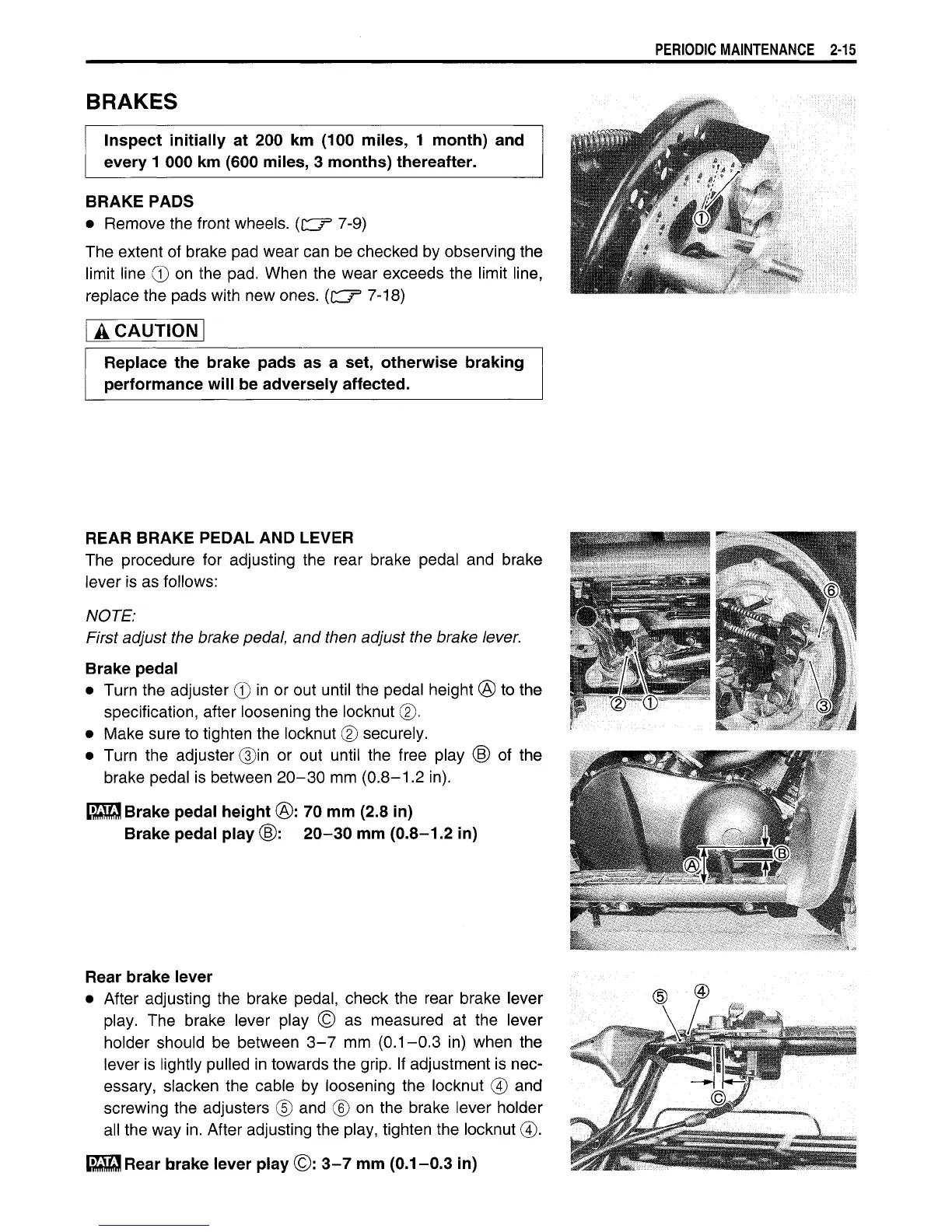

BRAKES
Inspect
initially at 200 km (100 miles, 1 month) and
every
1
000 km (600 miles, 3 months) thereafter.
BRAKE
PADS
•
Remove
the front wheels.
(CC7
3
7-9)
The extent of brake pad wear can be checked by observing the
limit
line
© on
the pad.
When
the wear exceeds the
limit
line,
replace the
pads
with
new ones, (dr* 7-18)
A CAUTION^
Replace
the brake pads as a set, otherwise braking
performance will be adversely affected.
REAR
BRAKE
PEDAL
AND
LEVER
The procedure
for
adjusting
the
rear brake pedal
and
brake
lever is as follows:
NOTE:
First
adjust the brake pedal, and then adjust the brake lever.
Brake
pedal
•
Turn the adjuster
©
in or out
until
the pedal height
®
to the
specification,
after loosening the locknut
©.
•
Make
sure to tighten the locknut
©
securely.
•
Turn
the
adjuster ©in
or out
until
the
free play
(§) of the
brake pedal is between
20-30
mm
(0.8-1.2
in).
B
Brake pedal height ®: 70 mm (2.8 in)
Brake
pedal play (§):
20-30
mm
(0.8-1.2
in)
Rear
brake lever
•
After adjusting the brake pedal, check the rear brake lever
play.
The
brake lever play
© as
measured
at the
lever
holder should
be
between
3-7 mm
(0.1-0.3
in)
when
the
lever is lightly pulled in towards the grip. If adjustment is nec-
essary, slacken the cable
by
loosening the locknut
@ and
screwing the adjusters
©
and
® on
the brake lever holder
all
the way in. After adjusting the play, tighten the locknut
@.
EEffll
Rear brake lever play ©: 3-7 mm (0.1 -0.3 in)
