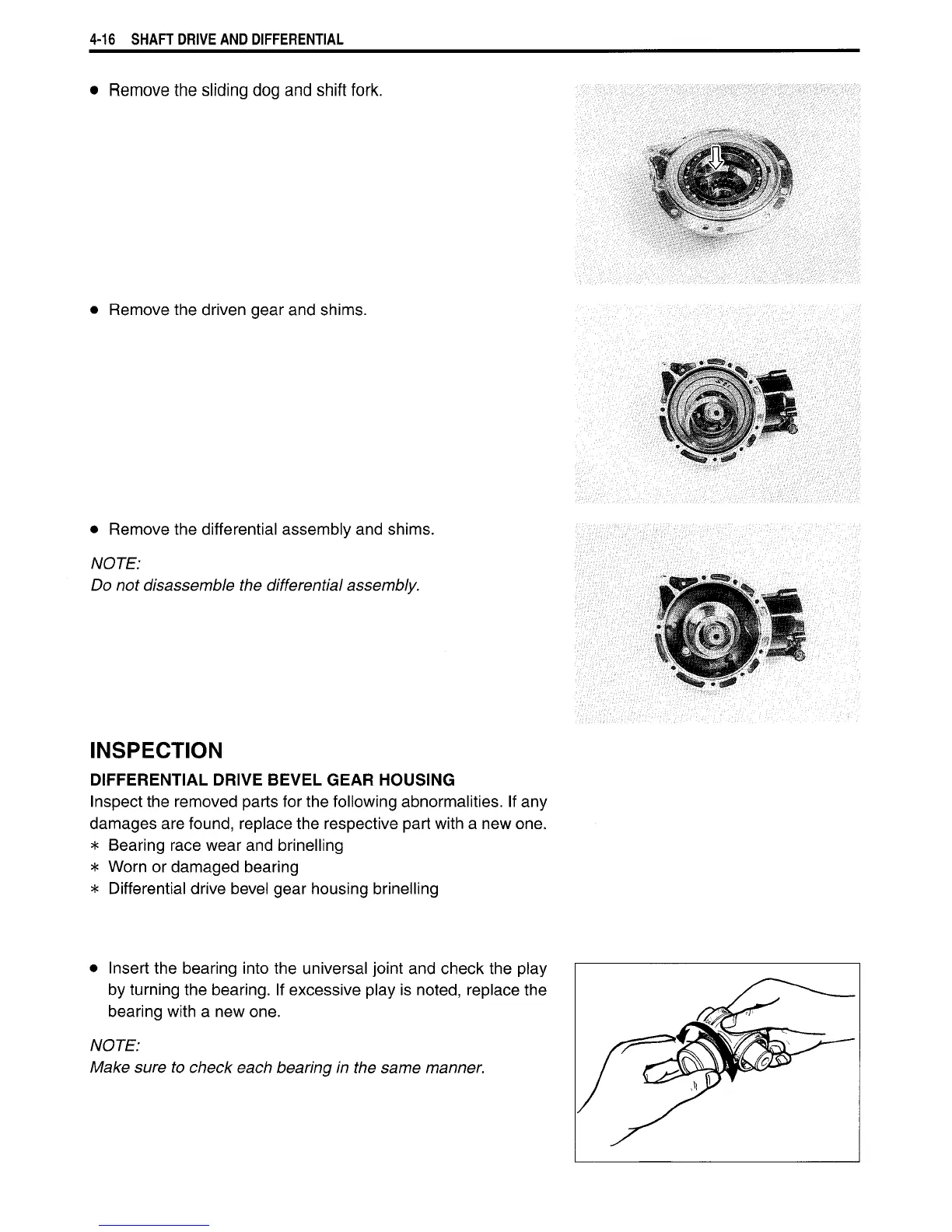

4-16 SHAFT DRIVE AND DIFFERENTIAL
• Remove the sliding dog and shift fork.
• Remove the driven gear and shims.
• Remove the differential assembly and shims.
NOTE:
Do not disassemble the differential assembly.
INSPECTION
DIFFERENTIAL DRIVE BEVEL GEAR HOUSING
Inspect the removed parts for the following abnormalities. If any
damages are found, replace the respective part with a new one.
* Bearing race wear and brinelling
* Worn or damaged bearing
* Differential drive bevel gear housing brinelling
• Insert the bearing into the universal joint and check the play
by turning the bearing. If excessive play is noted, replace the
bearing with a new one.
NOTE:
Make sure to check each bearing in the same manner.
