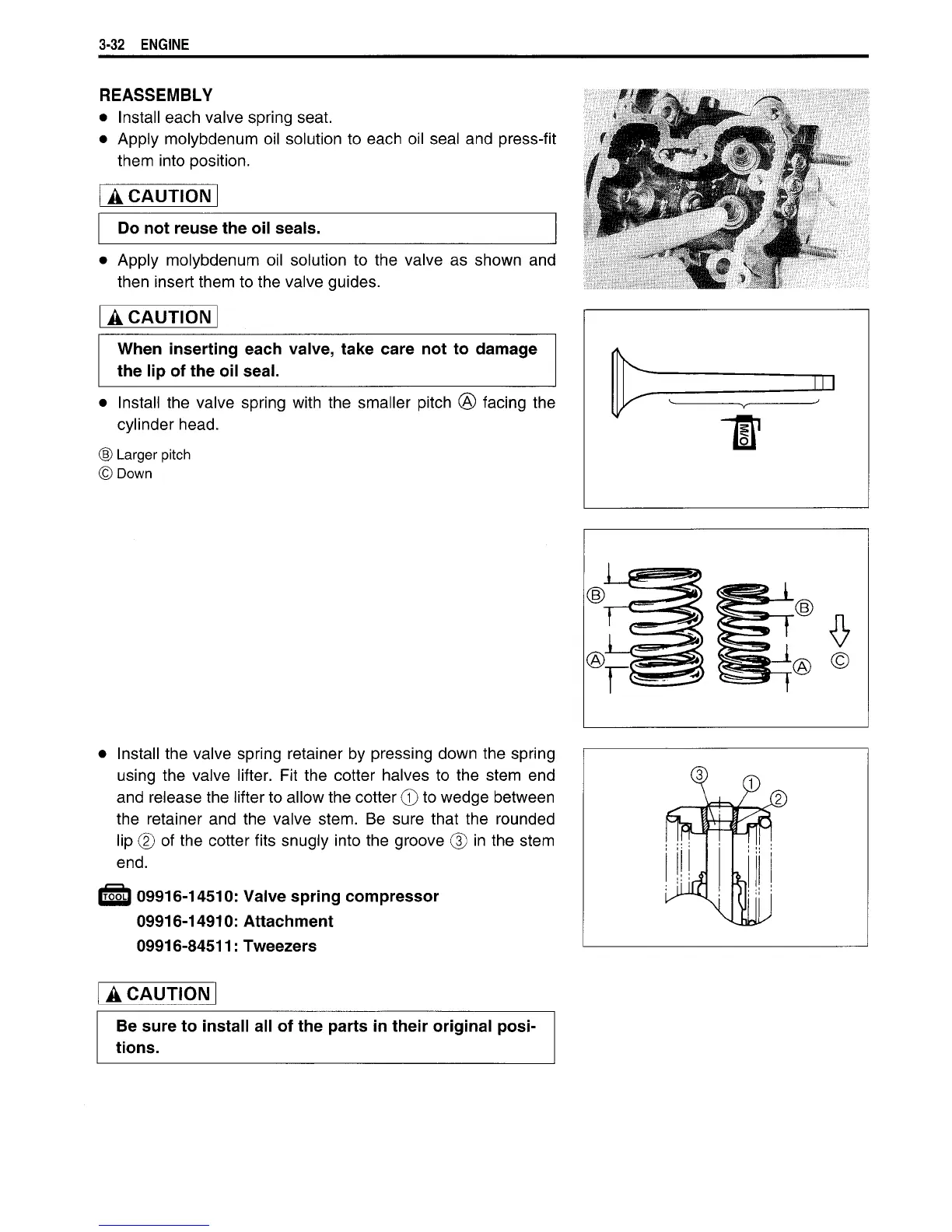

3-32 ENGINE
REASSEMBLY
• Install each valve spring seat.
• Apply molybdenum oil solution to each oil seal and press-fit
them into position.
ACAUTIOIST
Do not reuse the oil seals.
• Apply molybdenum oil solution to the valve as shown and
then insert them to the valve guides.
ACAUTIOINT
When inserting each valve, take care not to damage
the lip of the oil seal.
• Install the valve spring with the smaller pitch ® facing the
cylinder head.
® Larger pitch
© Down
• Install the valve spring retainer by pressing down the spring
using the valve lifter. Fit the cotter halves to the stem end
and release the lifter to allow the cotter © to wedge between
the retainer and the valve stem. Be sure that the rounded
lip © of the cotter fits snugly into the groove © in the stem
end.
09916-14510: Valve spring compressor
09916-14910: Attachment
09916-84511: Tweezers
A CAUTION
Be sure to install all of the parts in their original posi-
tions.
