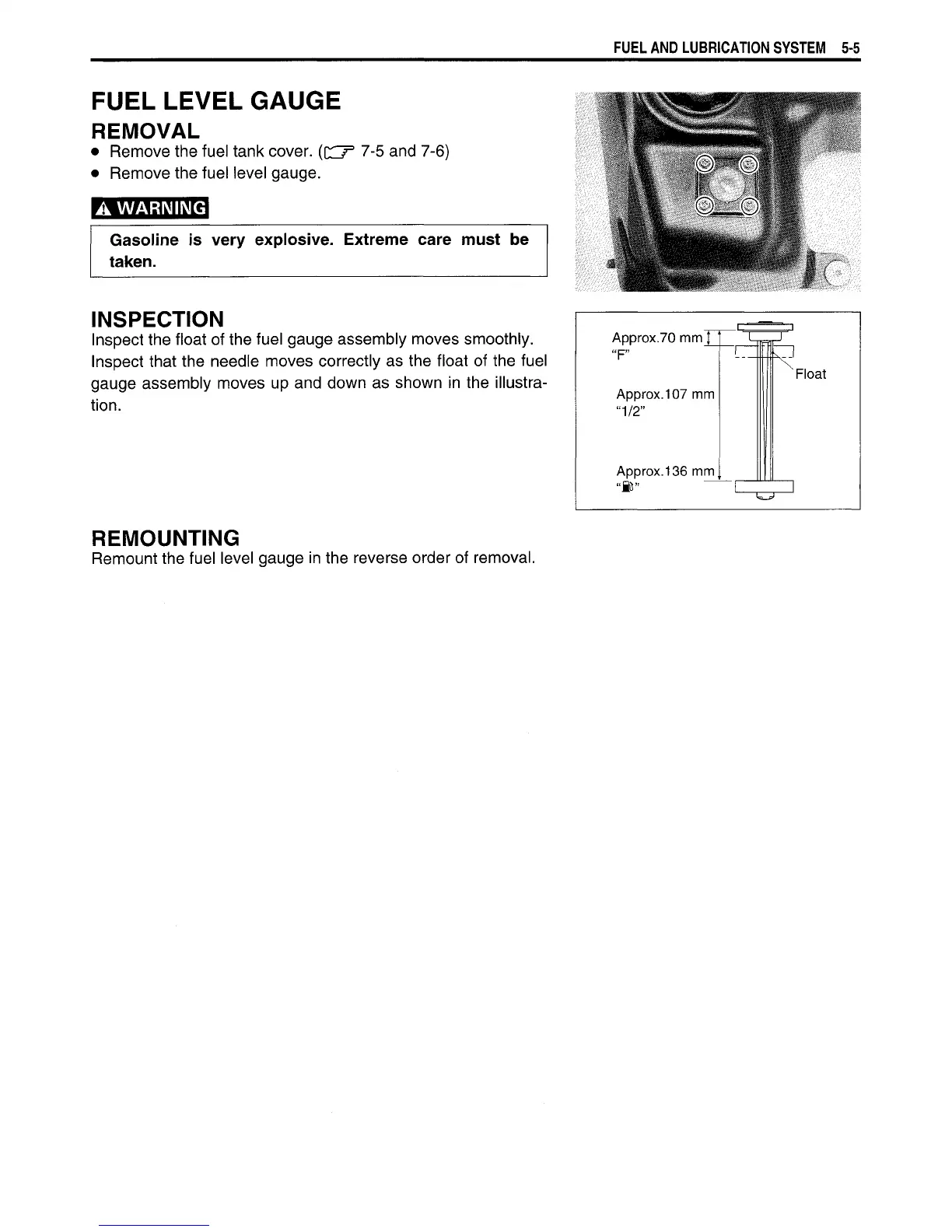

FUEL
AND LUBRICATION SYSTEM 5-5
FUEL
LEVEL
GAUGE
REMOVAL
•
Remove
the fuel tank cover. (c^T
3
7-5 and
7-6)
•
Remove
the fuel level gauge.
A
WARNING
Gasoline
is very explosive. Extreme care must be
taken.
INSPECTION
Inspect
the float of the fuel gauge assembly moves smoothly.
Inspect
that the needle moves correctly
as
the float
of
the fuel
gauge assembly moves
up
and down
as
shown
in
the
illustra-
tion.
Approx.70 mm
J
"F"
Approx.107
mm
"1/2"
Approx.136
mm
Float
REMOUNTING
Remount the fuel level gauge in the reverse order of removal.
